- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
72L100SD

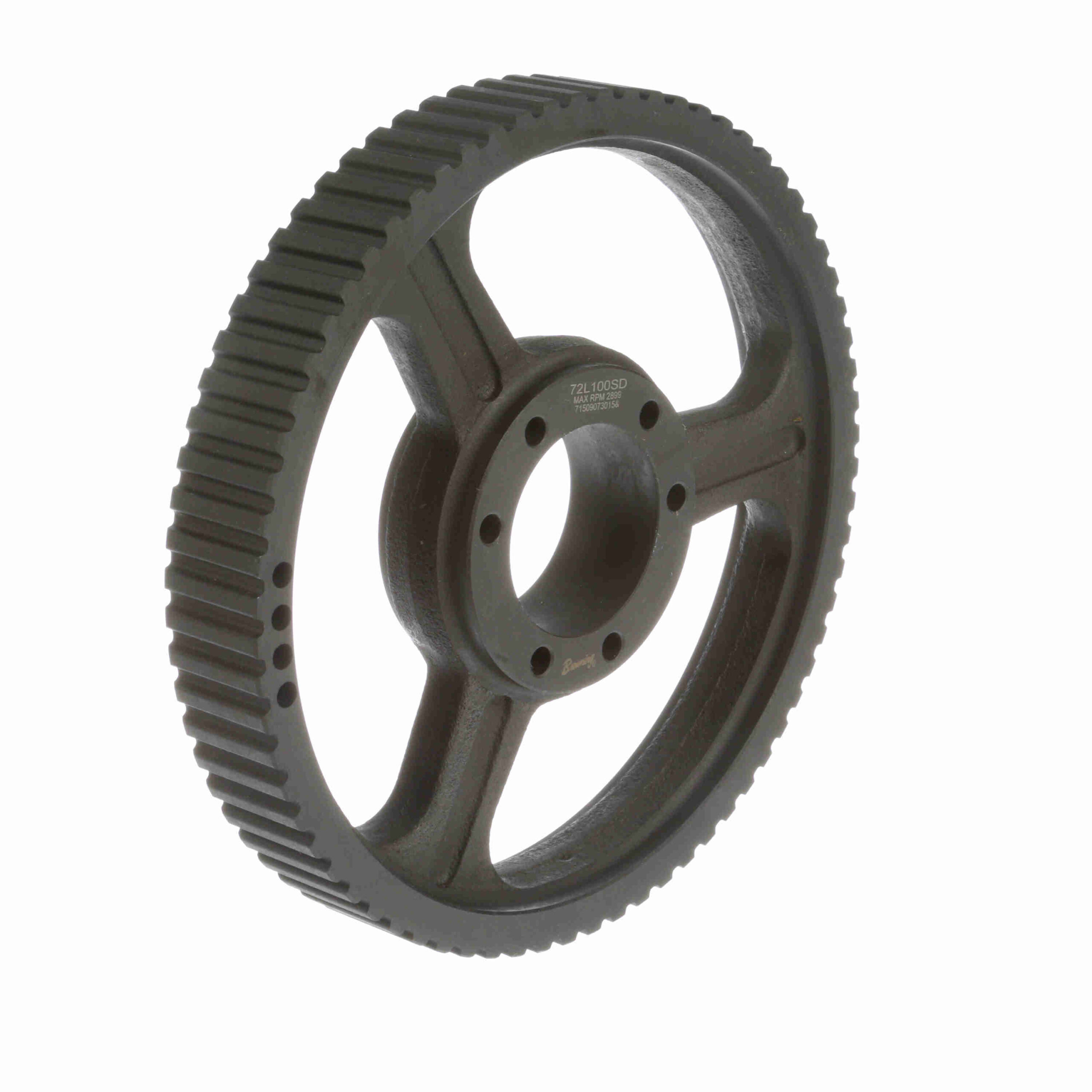

Browning Steel Bushed Bore Gearbelt Pulley – 72L100SD
$744.20
Out of stock
Out of stock
| Product Type: | Gearbelt Pulley | Number of teeth: | 72 |
|---|---|---|---|
| Width (mm): | 25.4 mm | Bore Range: | 1/2 to 2 |
| Material: | Steel | Bore Type: | Bushed Bore |
| Belt Section: | L | Width (in): | 1 in |
| Outside Diameter (in): | 8.564 in | Pitch Diameter (in): | 8.594 in |
| Outside Diameter (mm): | 217.5256 mm | Inside Diameter (in): | 7.625 in |
| Face Width: | 1.25 | UPC: | 662289353842 |
| Weight: | 7.24 LB | Packaged Length: | 9.4 Inches |
| Packaged Width: | 9.8 Inches | Packaged Height: | 2 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
