- Non-Lubricated design for tough industrial applications.
- Maintenance savings through easily replaceable element in the application without moving the driving or driven equipment.
- Available close coupled or spacer configurations.
70 SHUB

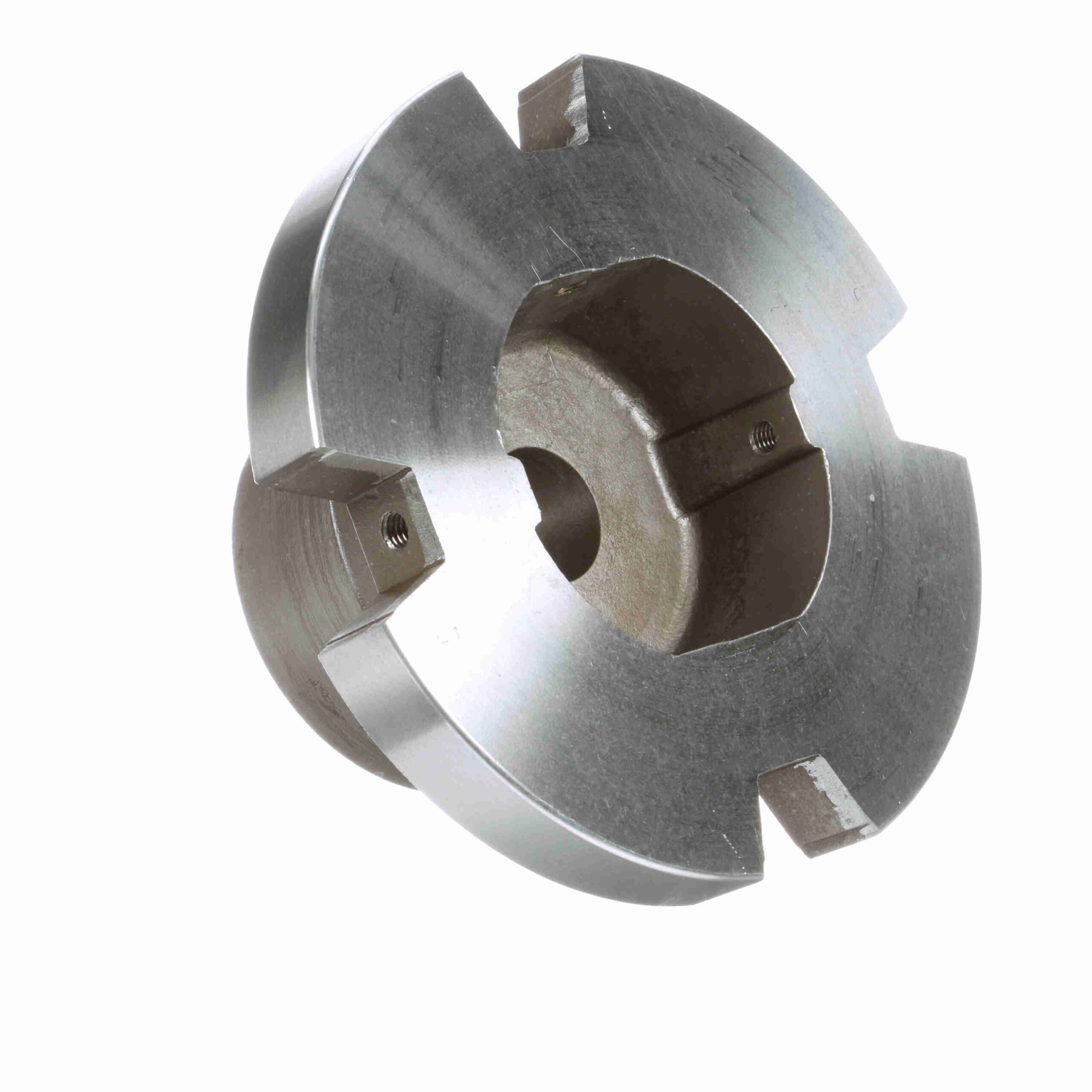

Kop-Flex Elastomeric Coupling Hub – Style ES, SS – Size 70 – Rough Bore – 70 SHUB
Out of stock
| Bore Type: | Rough Bore | Material: | Aluminum |
|---|---|---|---|
| Coupling Size: | 70 | Model: | Elastomeric |
| Style: | ES, SS | Hub Diameter (in): | 8 in |
| Lube/Non-Lube: | Non-Lubricated | Outside Diameter (in): | 4.5625 in |
| Coupling Type: | Elastomeric Coupling | Length Through Bore (in): | 4 in |
| Measurement System: | Imperial | Component Type: | Hub |
| Speed Max (rpm): | 3, 600 rpm | Torque Rating (in-lb): | 4, 540 in/lbs |
| Bore w/ Std. Keyway - Min (in): | 1.625 in | Bore Size Min (in): | 1.625 in |
| Bore Size Max (in): | 3.125 in | Stock Rough Bore (S Hub) (in): | 1.5 in |
| Stock Rough Bore (in): | 1.5 in | UPC: | 662384002751 |
| Weight: | 7.26 LB | Packaged Length: | 8.25 Inches |
| Packaged Width: | 8.25 Inches | Packaged Height: | 8.25 Inches |
| HTC: | 8483.90.8010 |
