- Raceway: Circular grooves
- High speed
- High radial loads
- Low noise
6326 C3

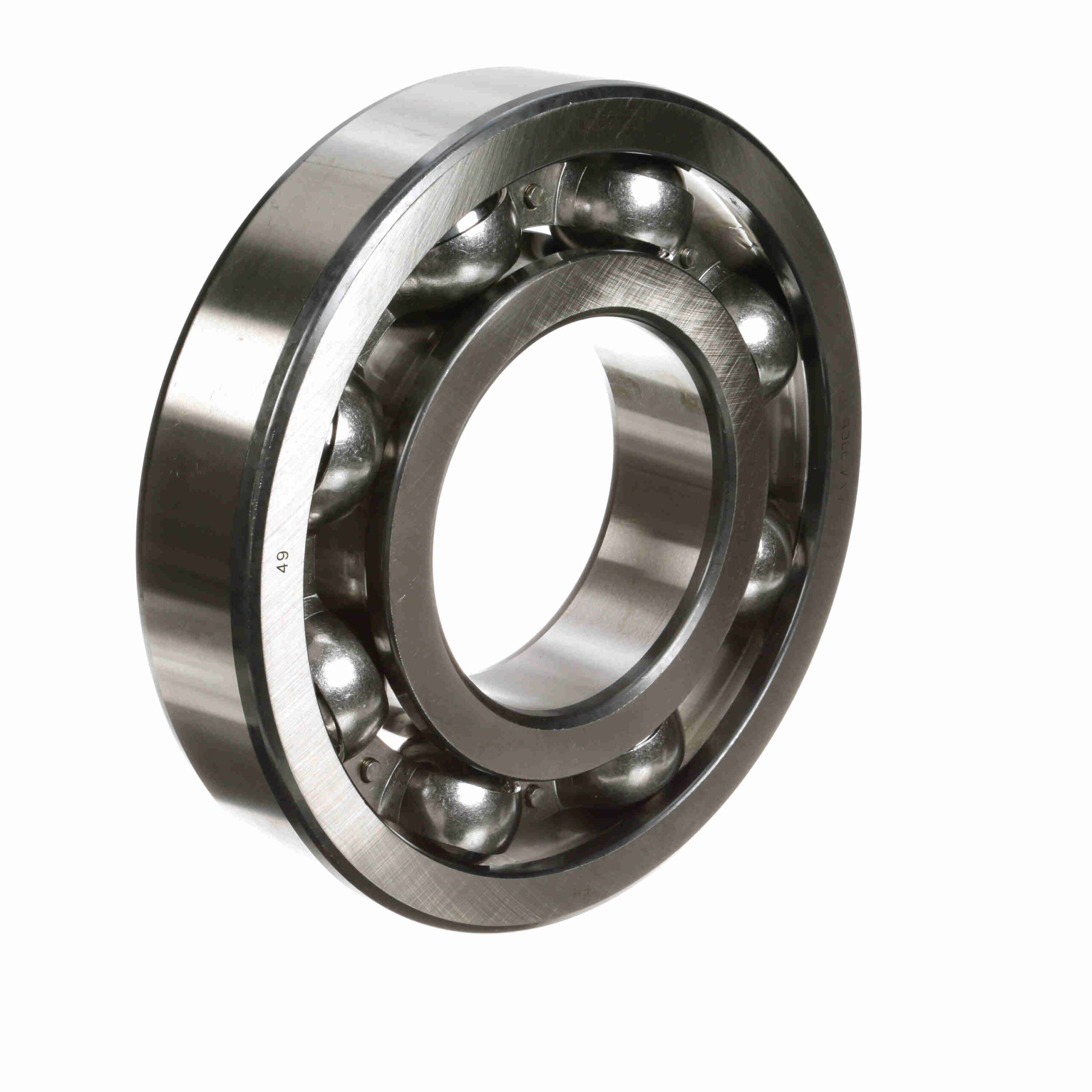

Rollway Radial Ball Bearing – Straight Bore – 6326 C3
$1,628.20
Out of stock
Out of stock
| Radial Clearance: | C3 | Series: | 6300 |
|---|---|---|---|
| Bore Type: | Straight | Material: | 52100 Bearing Steel |
| Rolling Element: | Ball | Seal Type: | Unsealed |
| Static Load Rating (kN): | 214 kN | Misalignment: | No |
| Number of Rows: | 1 | Dynamic Load Rating (kN): | 229 kN |
| Cage Material: | Steel | Speed (Max) Oil (rpm): | 2, 800 rpm |
| Speed (Max) Grease (rpm): | 2, 200 rpm | Platform: | Deep Groove Ball Bearing |
| Duplexing: | No | Sealed: | None |
| Full Complement/Caged: | Caged | Dynamic Load Rating (lb): | 51, 481 lb |
| Static Load Rating (lb): | 48, 109 lb | UPC: | 637410078291 |
| Weight: | 32.55 LB | Packaged Length: | 11.4 Inches |
| Packaged Width: | 12 Inches | Packaged Height: | 3.3 Inches |
| Country of Origin: | China |
