- Raceway: Circular grooves
- High speed
- High radial loads
- Low noise
6324 C3

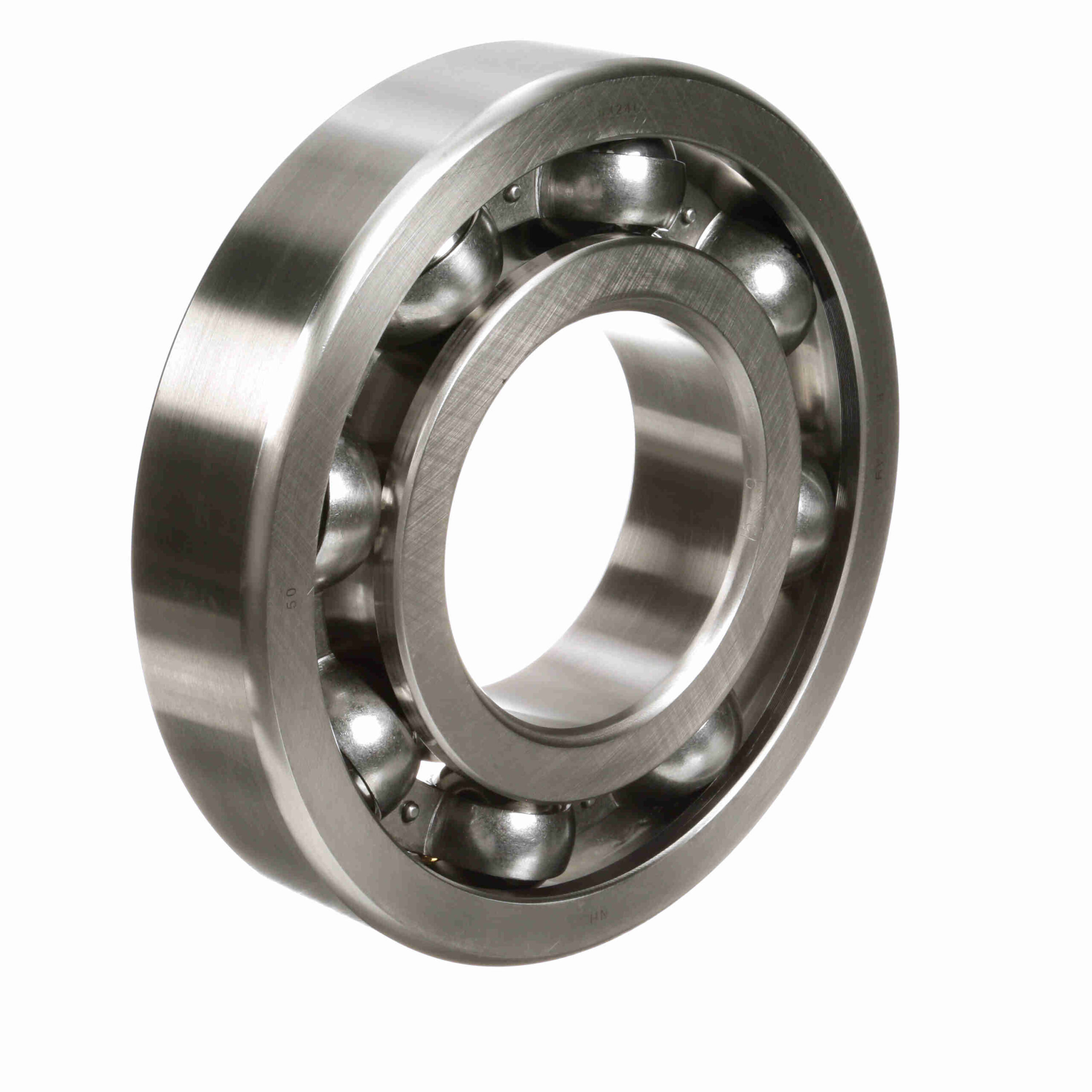

Rollway Radial Ball Bearing – Straight Bore – 6324 C3
$3,457.38
Out of stock
Out of stock
| Bore Type: | Straight | Radial Clearance: | C3 |
|---|---|---|---|
| Series: | 6300 | Material: | 52100 Bearing Steel |
| Misalignment: | No | Static Load Rating (kN): | 190 kN |
| Number of Rows: | 1 | Rolling Element: | Ball |
| Seal Type: | Unsealed | Cage Material: | Steel |
| Dynamic Load Rating (kN): | 212 kN | Sealed: | None |
| Speed (Max) Grease (rpm): | 2, 400 rpm | Platform: | Deep Groove Ball Bearing |
| Full Complement/Caged: | Caged | Dynamic Load Rating (lb): | 47, 659 lb |
| Speed (Max) Oil (rpm): | 3, 000 rpm | Duplexing: | No |
| Static Load Rating (lb): | 42, 714 lb | UPC: | 637410078277 |
| Weight: | 27.52 LB | Packaged Length: | 11.4 Inches |
| Packaged Width: | 11.9 Inches | Packaged Height: | 3.2 Inches |
| Country of Origin: | China |
