- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
60H300SF

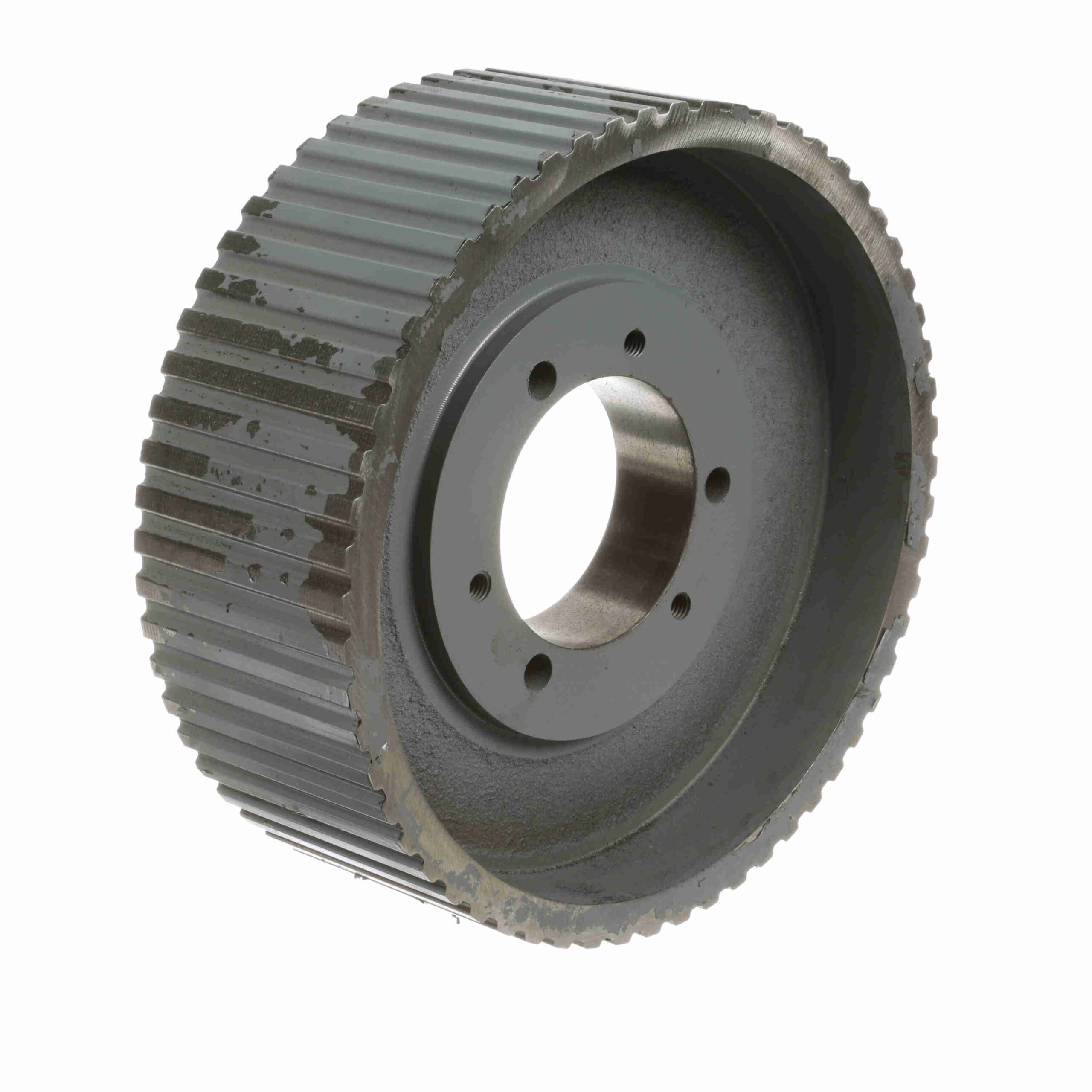

Browning Steel Bushed Bore Gearbelt Pulley – 60H300SF
Out of stock
| Product Type: | Gearbelt Pulley | Bore Range: | 1/2 to 2 15/16 |
|---|---|---|---|
| Width (mm): | 76.2 mm | Number of teeth: | 60 |
| Material: | Cast Iron | Bore Type: | Bushed Bore |
| Outside Diameter (mm): | 241.173 mm | Belt Section: | H |
| Pitch Diameter (in): | 9.549 in | Outside Diameter (in): | 9.495 in |
| Width (in): | 3 in | Inside Diameter (in): | 8.5 in |
| Face Width: | 3.375 | Pulley Construction: | Arm |
| Length Through Bore: | 2 | Overall Length (in): | 3.65625 in |
| With Flanges: | No Flanges | UPC: | 662289353224 |
| Weight: | 22.37 LB | Packaged Length: | 9.6 Inches |
| Packaged Width: | 10.3 Inches | Packaged Height: | 4.4 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
