- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
60-4R 10FT

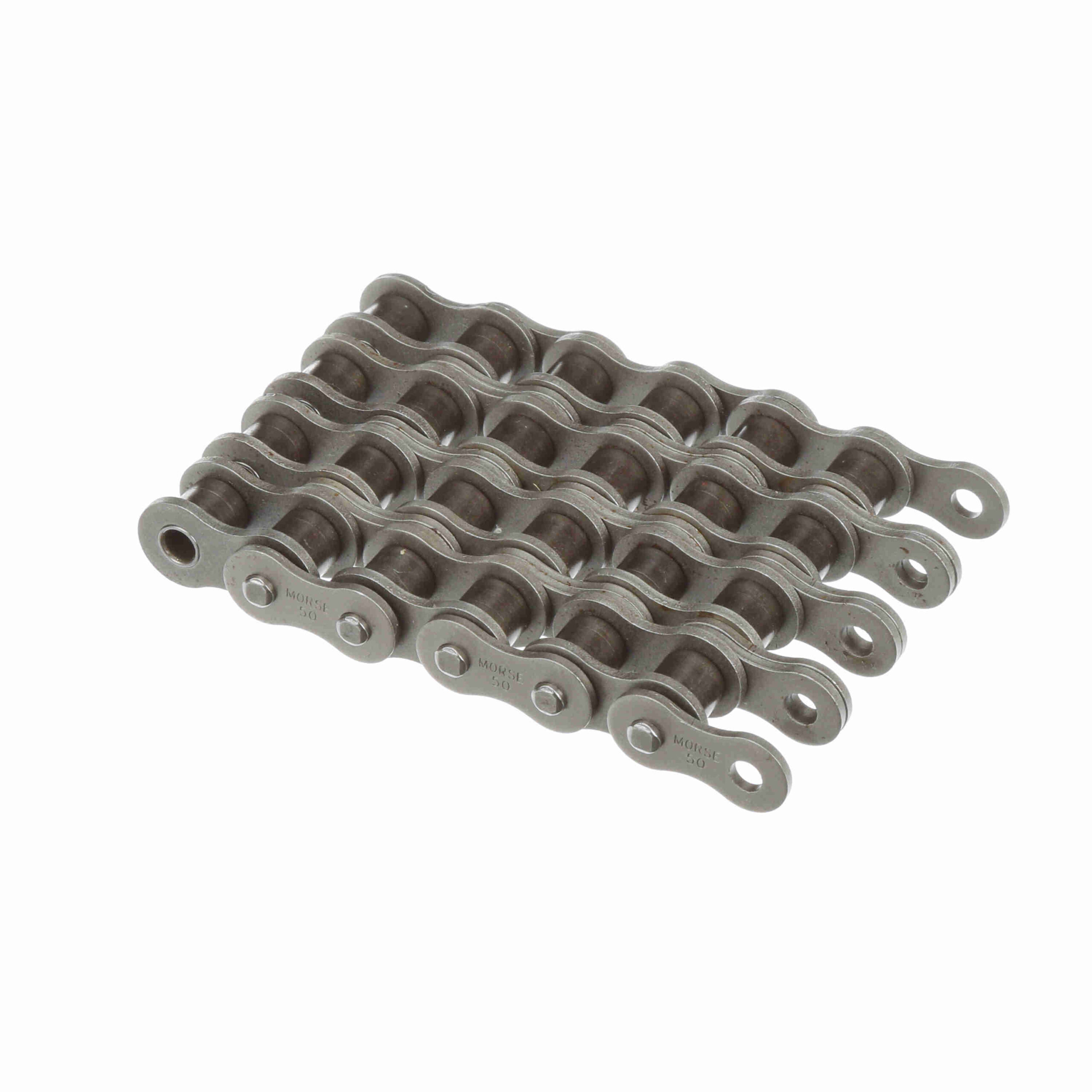

Morse Standard Riveted Roller Chain – 60-4R 10FT
$95.17
Out of stock
Out of stock
| Centerline to Opposite cotter Pin Side: | 1.844 | Average Ultimate Tensile Strength (psi): | 34, 000 |
|---|---|---|---|
| Chain Construction: | Riveted | Roller Width (in): | 0.5 in |
| Inside Plate Height: | 0.7 | Pin Diameter (in): | 0.234 in |
| Chain Size: | 60 | Number of Connecting Links Included: | 1 |
| Center Plates: | Loose Fit, Press Fit Optional | Centerline to Outside of cotter Pin: | 1.938 |
| Number of Strands/Width: | 4 | Side Plate Cfg.: | Hourglass |
| Material: | Steel | Plate Thickness: | 0.094 |
| Roller Diameter (in): | 0.468 in | Width Over Pins/Total Width: | 3.688 |
| Chain Pitch (in): | 0.75 in | Chain Type: | Standard |
| Product Type: | Roller Chain | Total Length: | 10 FT ft |
| Coating: | Uncoated | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 0.713 |
| Pin Length - Riveted: | 3.688 | UPC: | 662288455356 |
| Weight: | 3.95 LB | Packaged Length: | 11.70 Inches |
| Packaged Width: | 11.50 Inches | Packaged Height: | 4.00 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
