- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
60-4 C/L C/P S/F

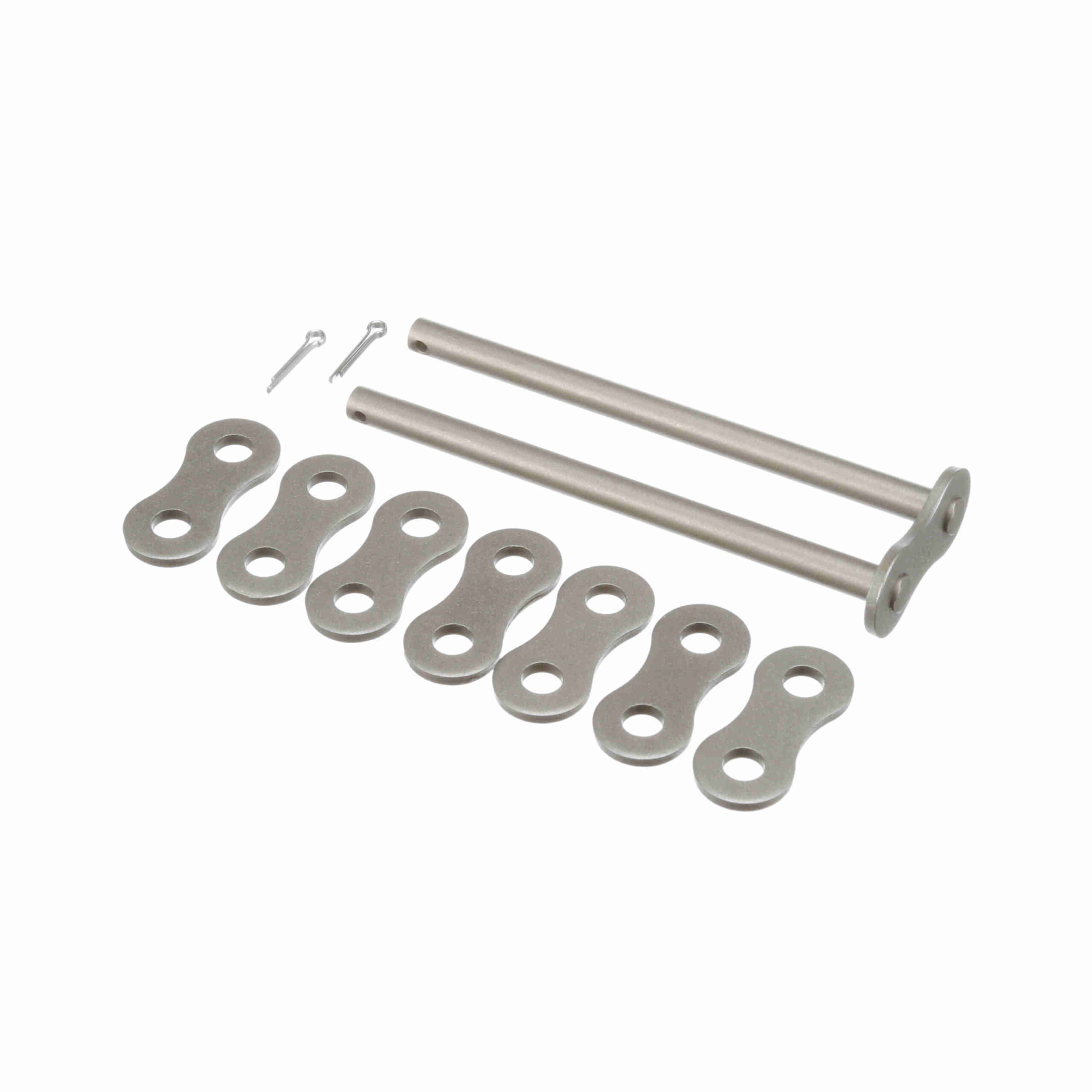

Morse Standard Roller Chain Cotter Pin Connecting Link – 60-4 C/L C/P S/F
$17.19
Out of stock
Out of stock
| Material: | Steel | Pin Diameter (in): | 0.234 in |
|---|---|---|---|
| Number of Strands/Width: | 4 | Average Ultimate Tensile Strength (psi): | 34, 000 |
| Width Over Pins/Total Width: | 3.688 | Connecting Link - Slip Fit: | Cotter |
| Side Plate Cfg.: | Hourglass | Roller Width (in): | 0.5 in |
| Inside Plate Height: | 0.7 | Plate Thickness: | 0.094 |
| Number of Connecting Links Included: | 5 | Centerline to Outside of cotter Pin: | 1.938 |
| Roller Diameter (in): | 0.468 in | Centerline to Opposite cotter Pin Side: | 1.844 |
| Chain Size: | 60 | Chain Pitch (in): | 0.75 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Construction: | Cottered | Link Type: | Connecting Link |
| UPC: | 662288468608 | Weight: | 0.21 LB |
| Packaged Length: | 4.90 Inches | Packaged Width: | 2.75 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
