- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
50B26

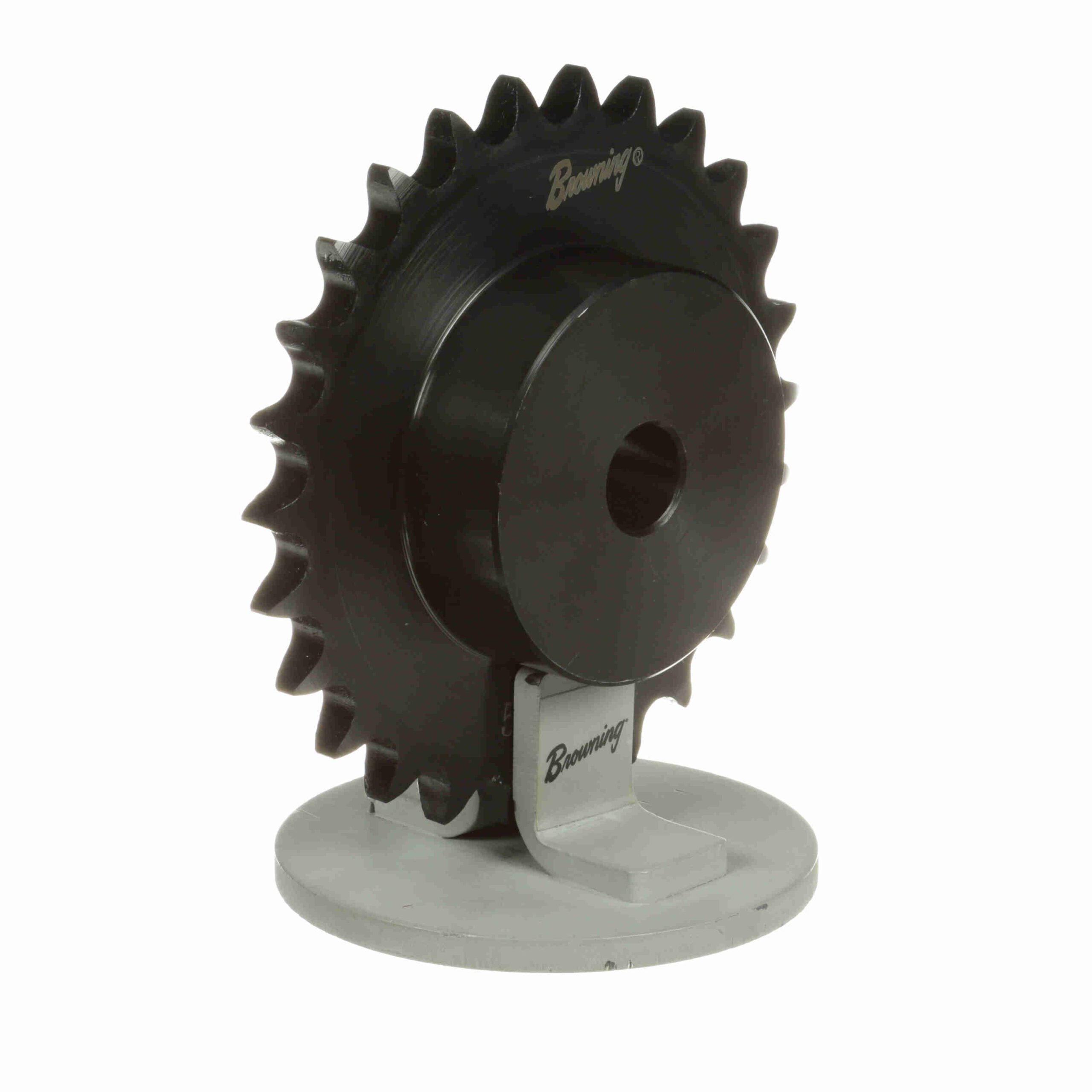

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 50B26
Out of stock
| Material: | Steel | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
|---|---|---|---|
| Number of teeth: | 26 | Chain Pitch (in): | 0.625 in |
| Product Type: | Type "B" Minimum Bore Sprocket | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2 in | Outside Diameter (in): | 5.52 in |
| Pitch Diameter (in): | 5.185 in | Bore (in): | 0.75 in |
| Number of Strands/Width: | 1 | Hub Type: | Type B |
| Length Through Bore (in): | 1.25 in | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 2.25 | Minimum Bore (in): | 0.75 |
| Width Across Tooth Sets: | 0.343 | Hub Projection (in): | 0.90625 |
| Number of Hubs: | 1 | UPC: | 662289319442 |
| Weight: | 3.55 LB | Packaged Length: | 5.56 Inches |
| Packaged Width: | 5.56 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
