- Up to 10 degrees misalignment
- Resilient Design
- Absorbs Vibration
- Exposed and shrouded bolt configurations
502 MORFLEX FLANGE MB

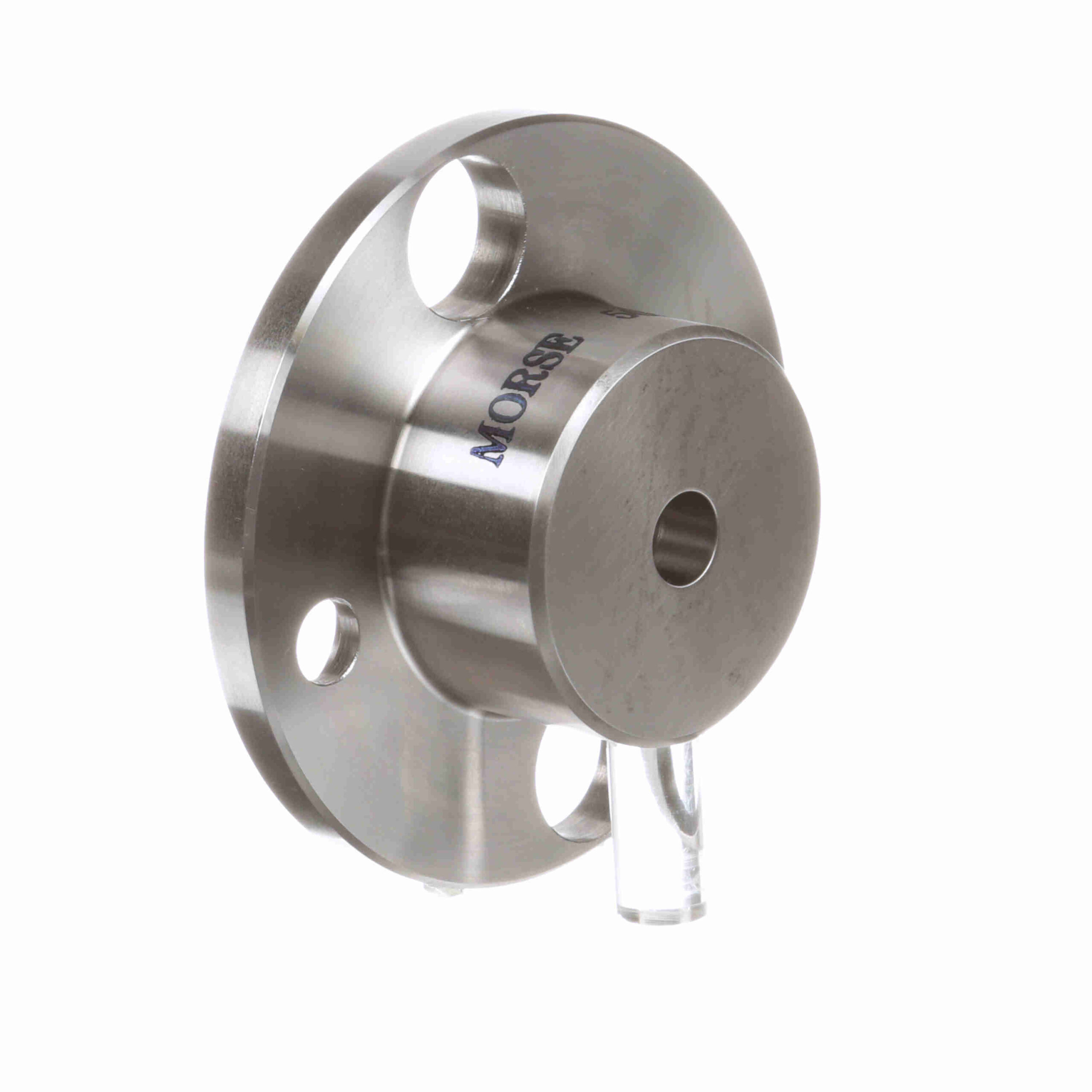

Morse Elastomeric Coupling – Size 502 – Plain Bore – 502 MORFLEX FLANGE MB
Out of stock
| Bore Type: | Plain Bore | Coupling Size: | 502 |
|---|---|---|---|
| Stock Bore (in): | 0.5 in | Max Bore w/SS at 180° to KW (in): | 1.5 in |
| Max. Bore w/SS over KW (in): | 1.25 in | Flange Type: | Round |
| Torque Rating (in-lb): | 1, 008 in/lbs | Coupling Type: | Elastomeric Coupling |
| Measurement System: | Imperial | Lube/Non-Lube: | Non-Lubricated |
| Speed Max (rpm): | 5, 300 rpm | Torque Rating (ft-lb): | 84 ft/lbs |
| Bore Size Min (in): | 0.5 in | UPC: | 662288372042 |
| Weight: | 2.53 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 4.2 Inches | Packaged Height: | 1.9 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | Taiwan, Republic of China |
