- Up to 10 degrees misalignment
- Resilient Design
- Absorbs Vibration
- Exposed and shrouded bolt configurations

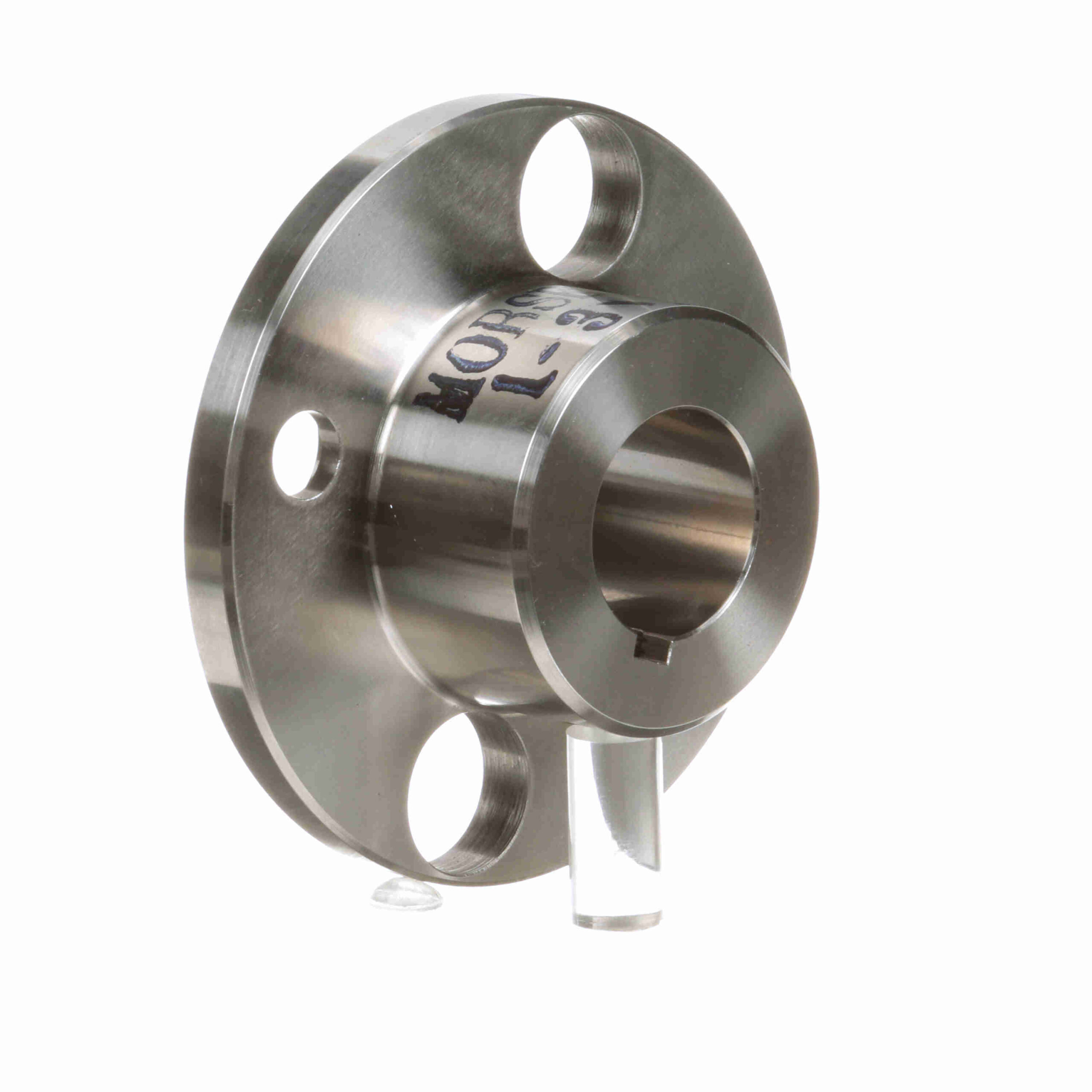

502 MORFLEX FLANGE 1-3/16 FB
Morse Elastomeric Coupling – Size 502 – Finished Bore – 502 MORFLEX FLANGE 1-3/16 FB
Out of stock
| Coupling Size: | 502 | Max Bore w/SS at 180° to KW (in): | 1.5 in |
|---|---|---|---|
| Flange Type: | Round | Max. Bore w/SS over KW (in): | 1.25 in |
| Bore Type: | Finished Bore | Stock Bore (in): | 1.1875 in |
| Coupling Type: | Elastomeric Coupling | Speed Max (rpm): | 5, 300 rpm |
| Lube/Non-Lube: | Non-Lubricated | Measurement System: | Imperial |
| Torque Rating (in-lb): | 1, 008 in/lbs | Torque Rating (ft-lb): | 84 ft/lbs |
| Bore Size Min (in): | 1.1875 in | UPC: | 662288378211 |
| Weight: | 2.54 LB | Packaged Length: | 4.7 Inches |
| Packaged Width: | 4.7 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | Taiwan, Republic of China |
