- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse offers accessories to the torque overload devices
- The torque limiter couple combines overload slip protection with the ability to couple driving and driven shafts. Some angular and parallel misalignment can be accommodated by the double roller chain design.

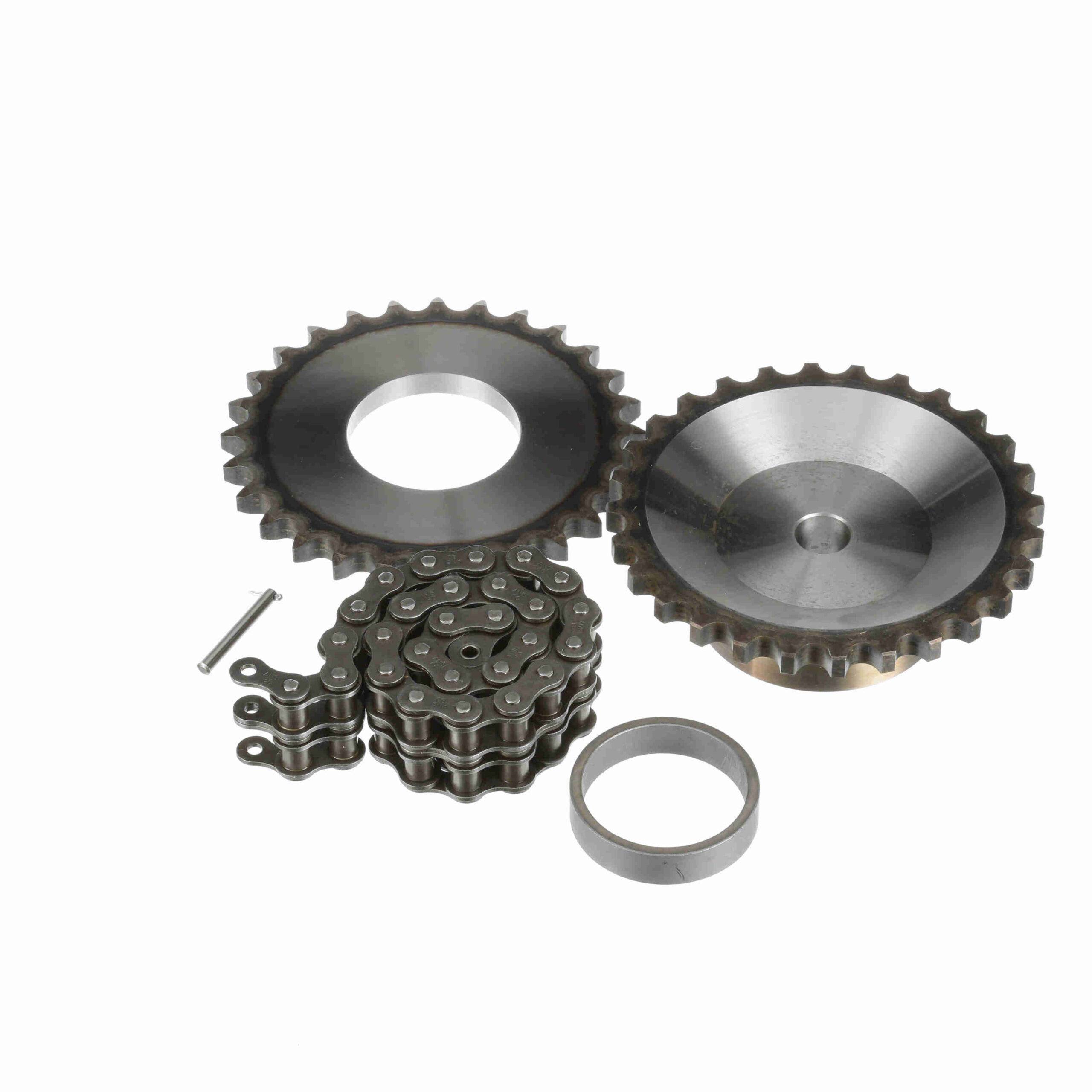

- Coupling assembly includes “A” plate sprocket, “B” sprocket, bushing and double strand roller chain.
- The torque limter must be ordered separately.
500CP TL CPLG PKG MPB 7/8
Morse Torque Overload Accessory- 500A Series Coupling – 500CP TL CPLG PKG MPB 7/8
$875.79
Out of stock
Out of stock
| Spkt. Size: | 628 | Series / Model: | 500A |
|---|---|---|---|
| Misalign Max Angular (Deg.): | 0.5 | Type of OSD: | Morse (TM) Torque Limiter |
| Max. Bore Torque Limiter: | 1.75 | Misalign Max Parallel: | 0.015 |
| Stock Min. Plain Bore Cplg. Spkt.: | 0.875 | Torque Capacity (lb-ft): | 310 |
| Stock Min. Plain Bore Torque Limiter: | 0.875 | Max. Bore Cplg. Spkt.: | 2.5 |
| Stock Finished Bore Torque Limiter: | 0.875 | Accessory type: | Coupling |
| Product Type: | Torque Overload Accessories | UPC: | 662288400042 |
| Weight: | 15.19 LB | Packaged Length: | 7.70 Inches |
| Packaged Width: | 7.80 Inches | Packaged Height: | 6.00 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | China |
