- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
44LH075

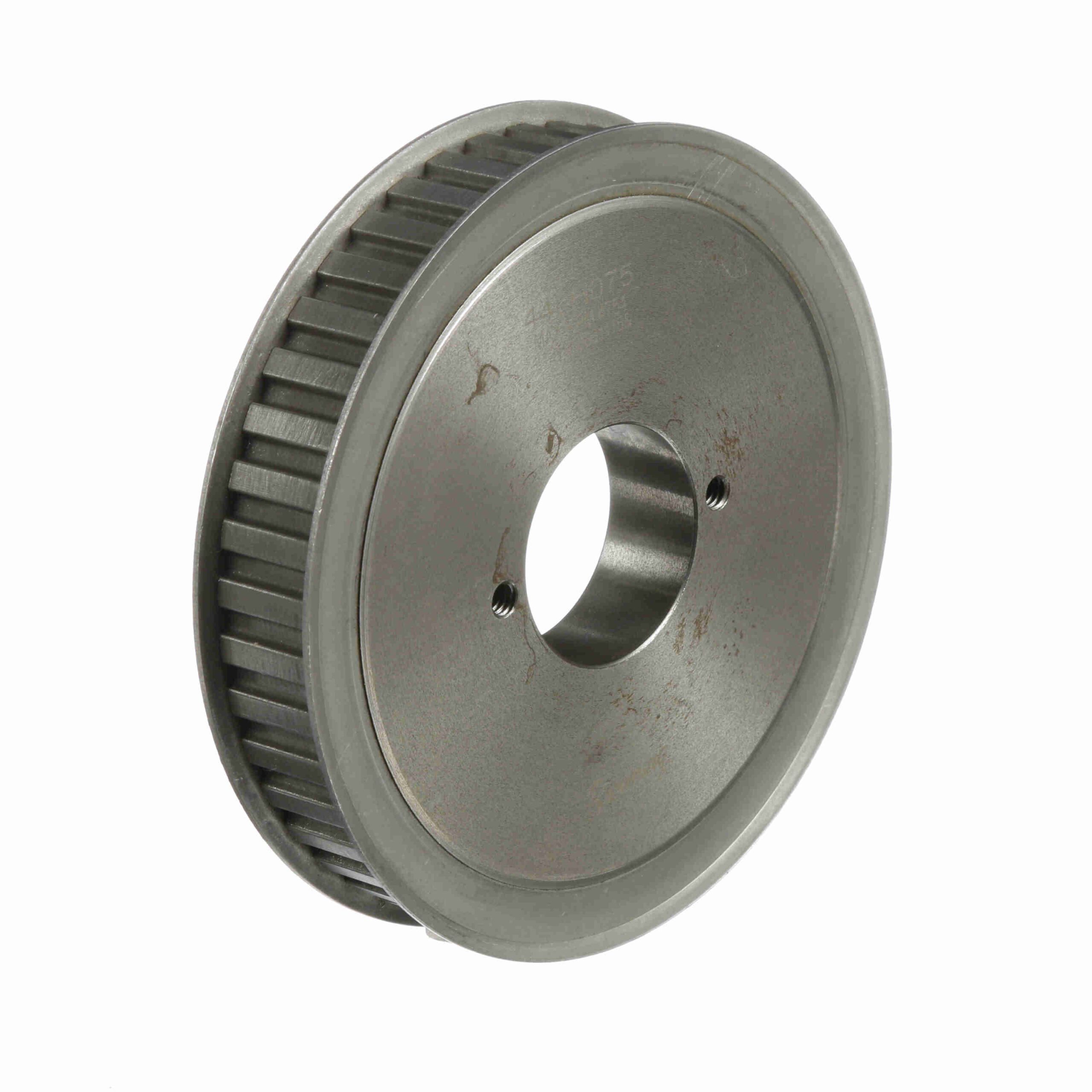

Browning Steel Bushed Bore Gearbelt Pulley – 44LH075
$294.21
Out of stock
Out of stock
| Number of teeth: | 44 | Width (mm): | 19.05 mm |
|---|---|---|---|
| Bore Range: | 3/8 to 1 1/2 | Product Type: | Gearbelt Pulley |
| Bore Type: | Bushed Bore | Material: | Steel/Ductile Iron/Gray Iron |
| Width (in): | 0.75 in | Flange (in): | 5.474 in |
| Pitch Diameter (in): | 5.252 in | Belt Section: | L |
| Outside Diameter (mm): | 132.6388 mm | Outside Diameter (in): | 5.222 in |
| Face Width: | 1 | Length Through Bore: | 1.25 |
| With Flanges: | With Flanges | Pulley Construction: | Solid |
| Hub Diameter (in): | 2.5 in | Hub Projection: | 0.547 |
| Number of Hubs: | 1 | Overall Length (in): | 1.557 in |
| UPC: | 662289113347 | Weight: | 5.26 LB |
| Packaged Length: | 5.56 Inches | Packaged Width: | 5.56 Inches |
| Packaged Height: | 1.31 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
