- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
40XLB037

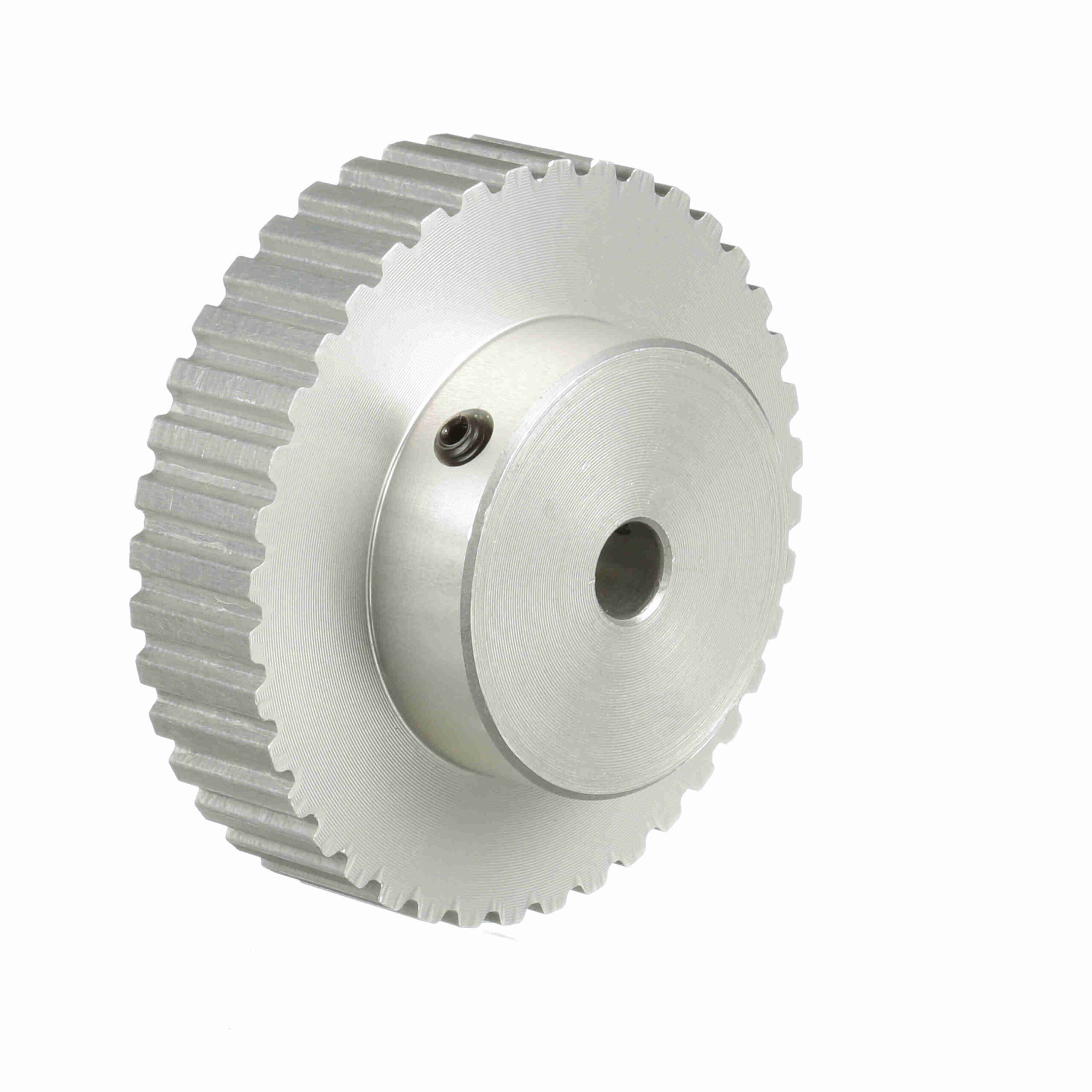

Browning Steel Rough Bore Gearbelt Pulley – 40XLB037
$124.81
Out of stock
Out of stock
| Bore Range: | 5/16 to 1 | Width (mm): | 9.525 mm |
|---|---|---|---|
| Number of teeth: | 40 | Model Name: | GBPulley_Master1 |
| Product Type: | Gearbelt Pulley | Material: | Aluminium |
| Bore Type: | Rough Bore | Pitch Diameter (in): | 2.546 in |
| Width (in): | 0.375 in | Outside Diameter (mm): | 64.1604 mm |
| Outside Diameter (in): | 2.526 in | Belt Section: | XL |
| Face Width: | 0.5625 | Pulley Construction: | Solid |
| Hub Projection: | 0.4375 | With Flanges: | No Flanges |
| Number of Hubs: | 1 | Overall Length (in): | 1 in |
| Hub Diameter (in): | 1.5 in | Bore Diameter (in): | 0.3125 in |
| Length Through Bore: | 1 | UPC: | 662289142156 |
| Weight: | 0.37 LB | Packaged Length: | 2.8 Inches |
| Packaged Width: | 2.8 Inches | Packaged Height: | 1.4 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
