- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
40P45

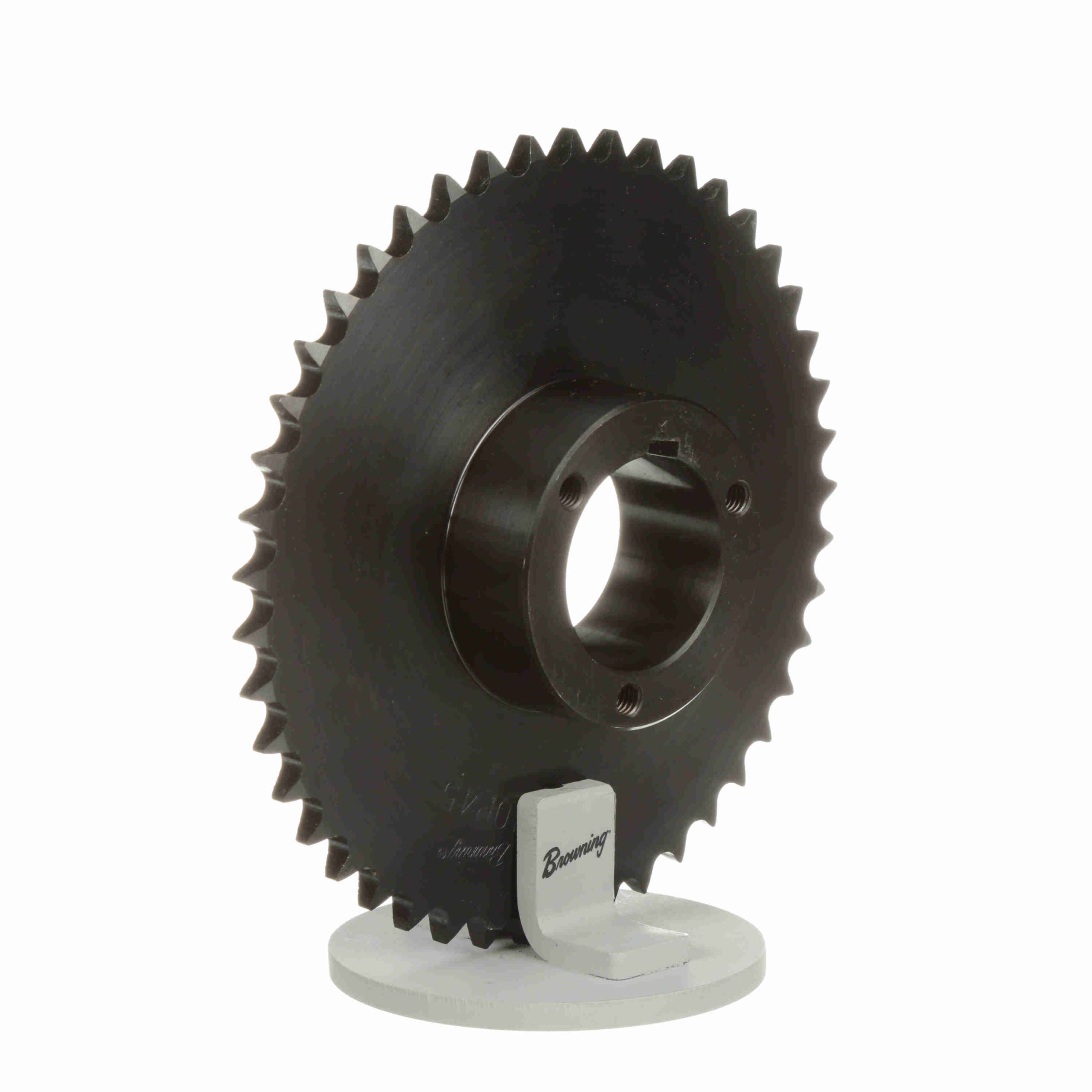

Browning Steel Bushed Bore Roller Chain Sprocket – 40P45
$306.31
Out of stock
Out of stock
| Chain Pitch (in): | 0.5 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Bore (Max) (in): | 1.75 in |
| Bore (Min) (in): | 0.5 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
| Pitch Diameter (in): | 7.168 in | Number of teeth: | 45 |
| Bushing Used: | Split Taper | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.221225 in | Outside Diameter (in): | 7.45 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.284 | UPC: | 662289185061 |
| Weight: | 4.27 LB | Packaged Length: | 8.20 Inches |
| Packaged Width: | 7.90 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
