- Up to 10 degrees misalignment
- Resilient Design
- Absorbs Vibration
- Exposed and shrouded bolt configurations
402 MORFLEX FLANGE MB

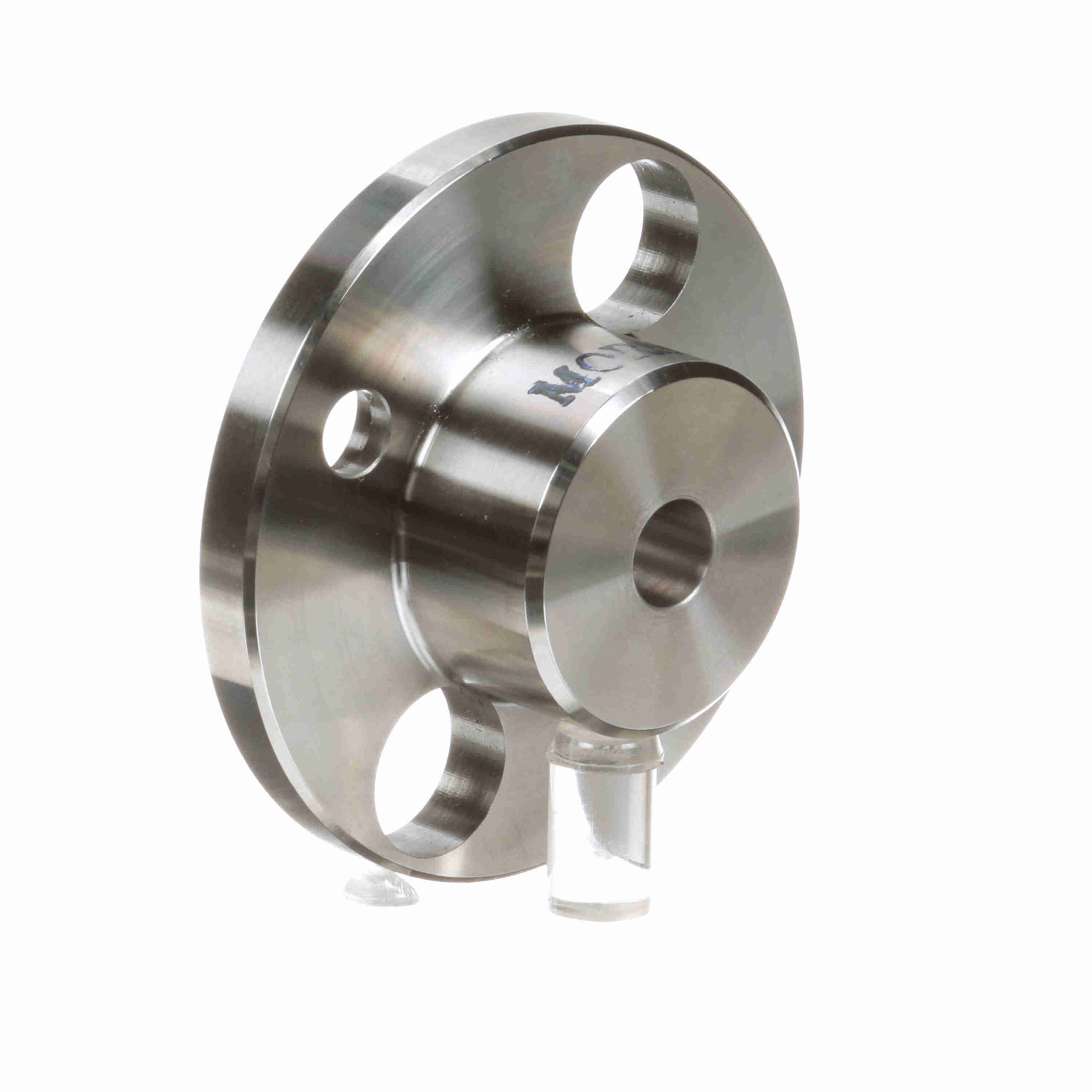

Morse Elastomeric Coupling – Size 402 – Plain Bore – 402 MORFLEX FLANGE MB
Out of stock
| Max Bore w/SS at 180° to KW (in): | 1.25 in | Flange Type: | Round |
|---|---|---|---|
| Stock Bore (in): | 0.5 in | Coupling Size: | 402 |
| Bore Type: | Plain Bore | Max. Bore w/SS over KW (in): | 1 in |
| Torque Rating (in-lb): | 636 in/lbs | Lube/Non-Lube: | Non-Lubricated |
| Coupling Type: | Elastomeric Coupling | Speed Max (rpm): | 5, 500 rpm |
| Measurement System: | Imperial | Torque Rating (ft-lb): | 53 ft/lbs |
| Bore Size Min (in): | 0.5 in | UPC: | 662288372059 |
| Weight: | 1.50 LB | Packaged Length: | 4.2 Inches |
| Packaged Width: | 4.3 Inches | Packaged Height: | 2 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | Taiwan, Republic of China |
