- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3R5V132

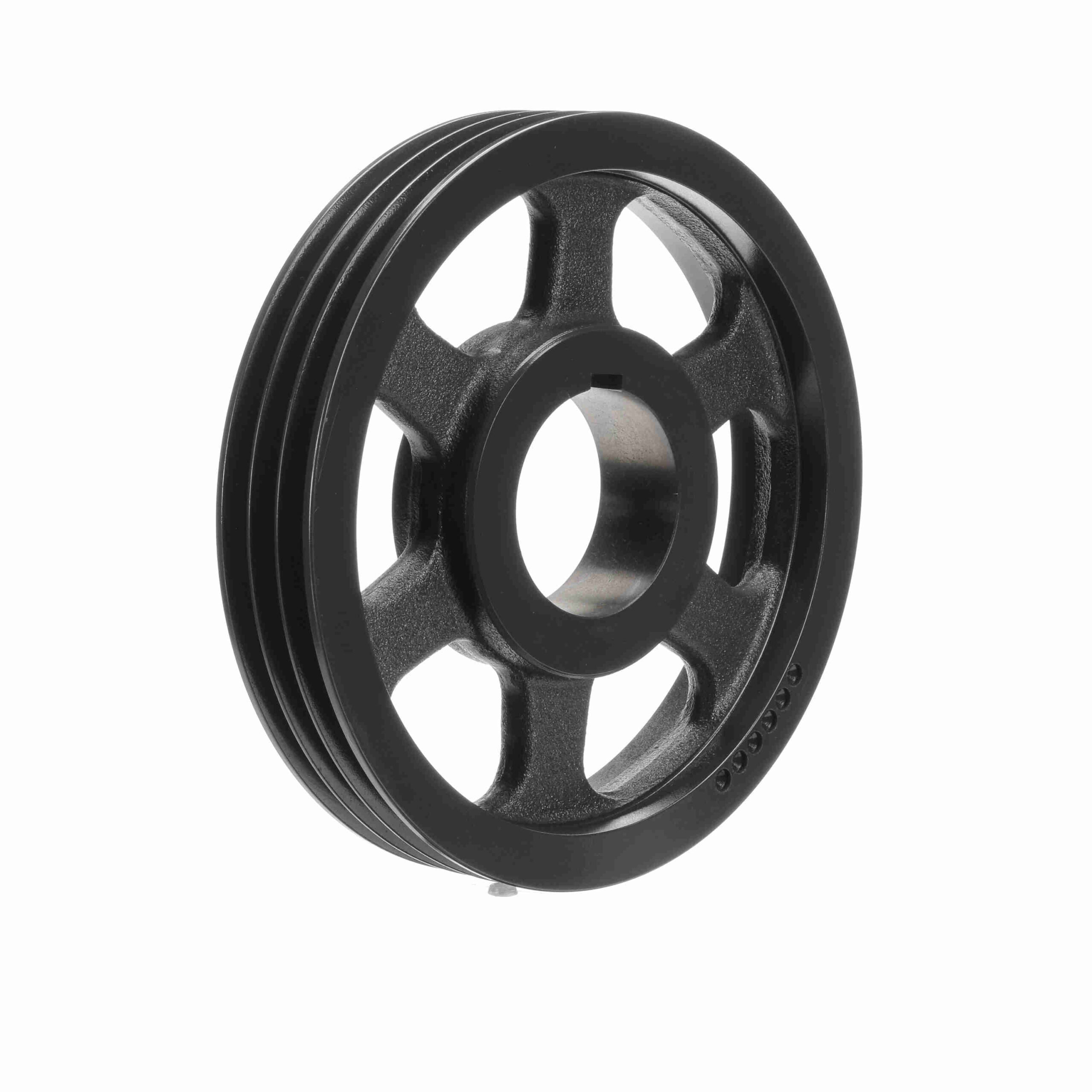

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3R5V132
$597.66
Out of stock
Out of stock
| Pulley Material: | Cast Iron | Bushing Used: | R1 |
|---|---|---|---|
| Pitch Diameter (5V): | 13.1 | Number of Grooves: | 3 |
| Material: | Cast Iron | Outside Diameter (in): | 13.2 in |
| Overall Length (in): | 3.359375 in | Product Type: | Multiple Sheaves |
| Belt Section: | 5V | Bore (Min) (in): | 1.125 in |
| Bore Type: | Split Taper Bushed | Keyway Size: | .750 |
| Face Width (in): | 2.375 | Pulley Construction: | Spoked |
| Overall Width (in): | 3.34375 | Bushing Bore Range: | 1.125 - 3.750 |
| UPC: | 662289131068 | Weight: | 31.58 LB |
| Packaged Length: | 14.60 Inches | Packaged Width: | 14.30 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
