- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
36XLB037

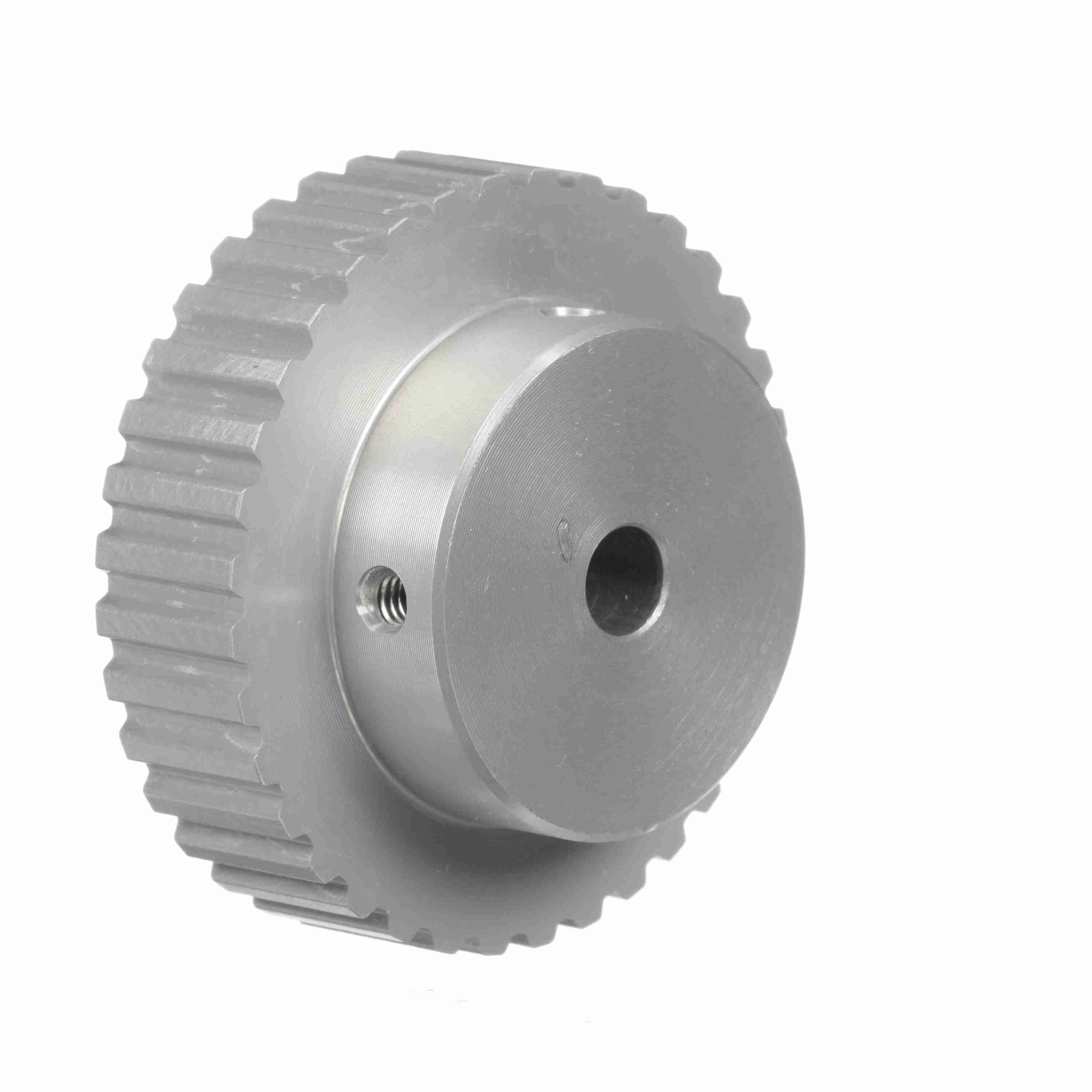

Browning Steel Rough Bore Gearbelt Pulley – 36XLB037
$191.70
Out of stock
Out of stock
| Model Name: | GBPulley_Master1 | Bore Range: | 5/16 to 1 |
|---|---|---|---|
| Number of teeth: | 36 | Width (mm): | 9.525 mm |
| Product Type: | Gearbelt Pulley | Material: | Aluminium |
| Bore Type: | Rough Bore | Outside Diameter (mm): | 57.7088 mm |
| Outside Diameter (in): | 2.272 in | Pitch Diameter (in): | 2.292 in |
| Width (in): | 0.375 in | Belt Section: | XL |
| Face Width: | 0.5625 | Pulley Construction: | Solid |
| Number of Hubs: | 1 | Hub Diameter (in): | 1.5 in |
| Hub Projection: | 0.4375 | Bore Diameter (in): | 0.3125 in |
| Overall Length (in): | 1 in | Length Through Bore: | 1 |
| With Flanges: | No Flanges | UPC: | 662289292127 |
| Weight: | 0.32 LB | Packaged Length: | 2.6 Inches |
| Packaged Width: | 2.6 Inches | Packaged Height: | 1.4 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
