- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
36H100SK

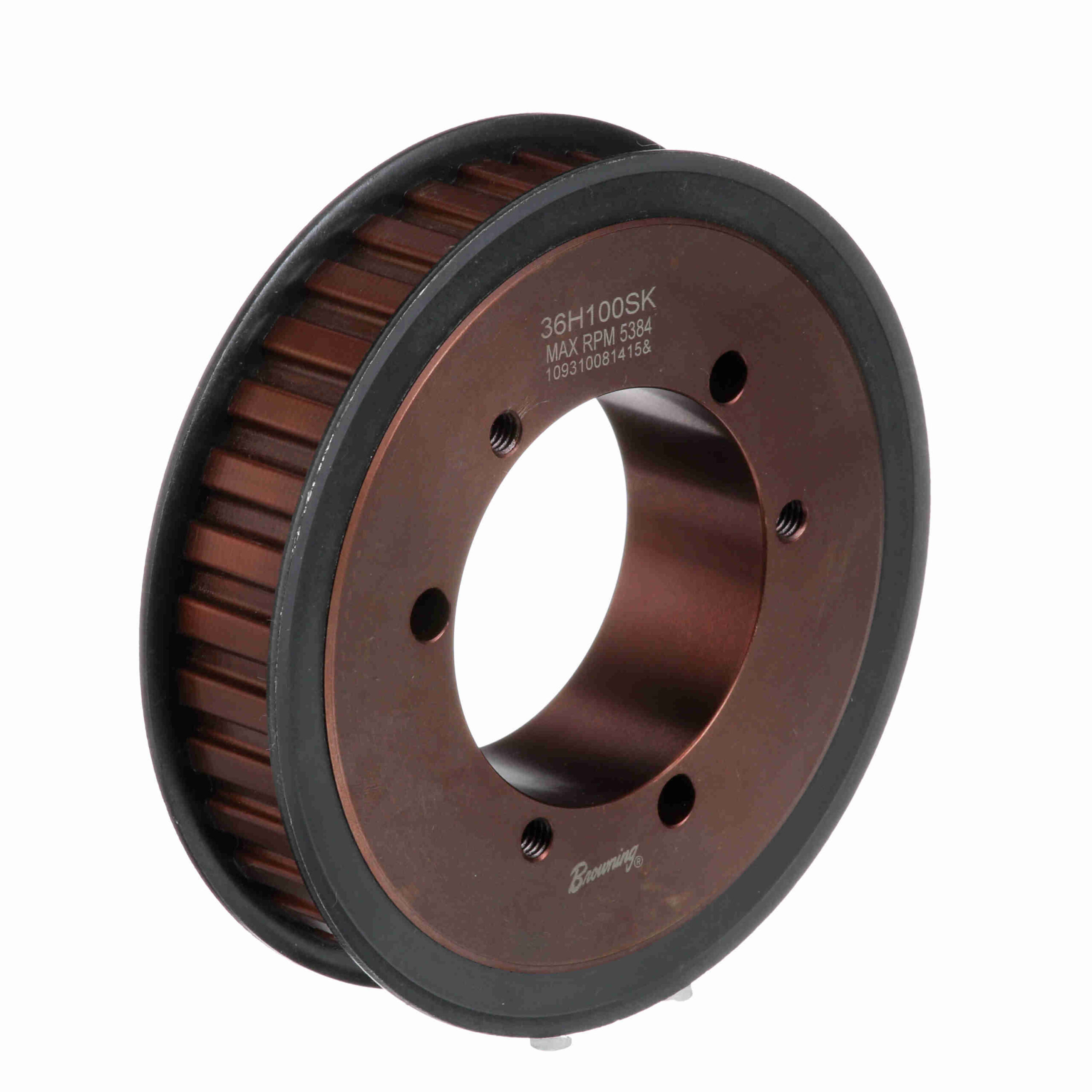

Browning Steel Bushed Bore Gearbelt Pulley – 36H100SK
$358.61
Out of stock
Out of stock
| Bore Range: | 1/2 to 2 5/8 | Width (mm): | 25.4 mm |
|---|---|---|---|
| Number of teeth: | 36 | Model Name: | GBPulley_Master6 |
| Product Type: | Gearbelt Pulley | Material: | Ductile Iron |
| Bore Type: | Bushed Bore | Pitch Diameter (in): | 5.73 in |
| Outside Diameter (mm): | 144.1704 mm | Inside Diameter (in): | 4.625 in |
| Outside Diameter (in): | 5.676 in | Belt Section: | H |
| Flange (in): | 6.0000 in | Width (in): | 1 in |
| Face Width: | 1.312 | Pulley Construction: | Solid |
| Hub Diameter (in): | 3.88 in | Overall Length (in): | 2.372 in |
| With Flanges: | With Flanges | Hub Projection: | 1.06025 |
| Length Through Bore: | 1.75 | Number of Hubs: | 1 |
| UPC: | 662289350742 | Weight: | 5.97 LB |
| Packaged Length: | 6.3 Inches | Packaged Width: | 6.4 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
