- When you think Sprockets – Think Browning
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
35A40

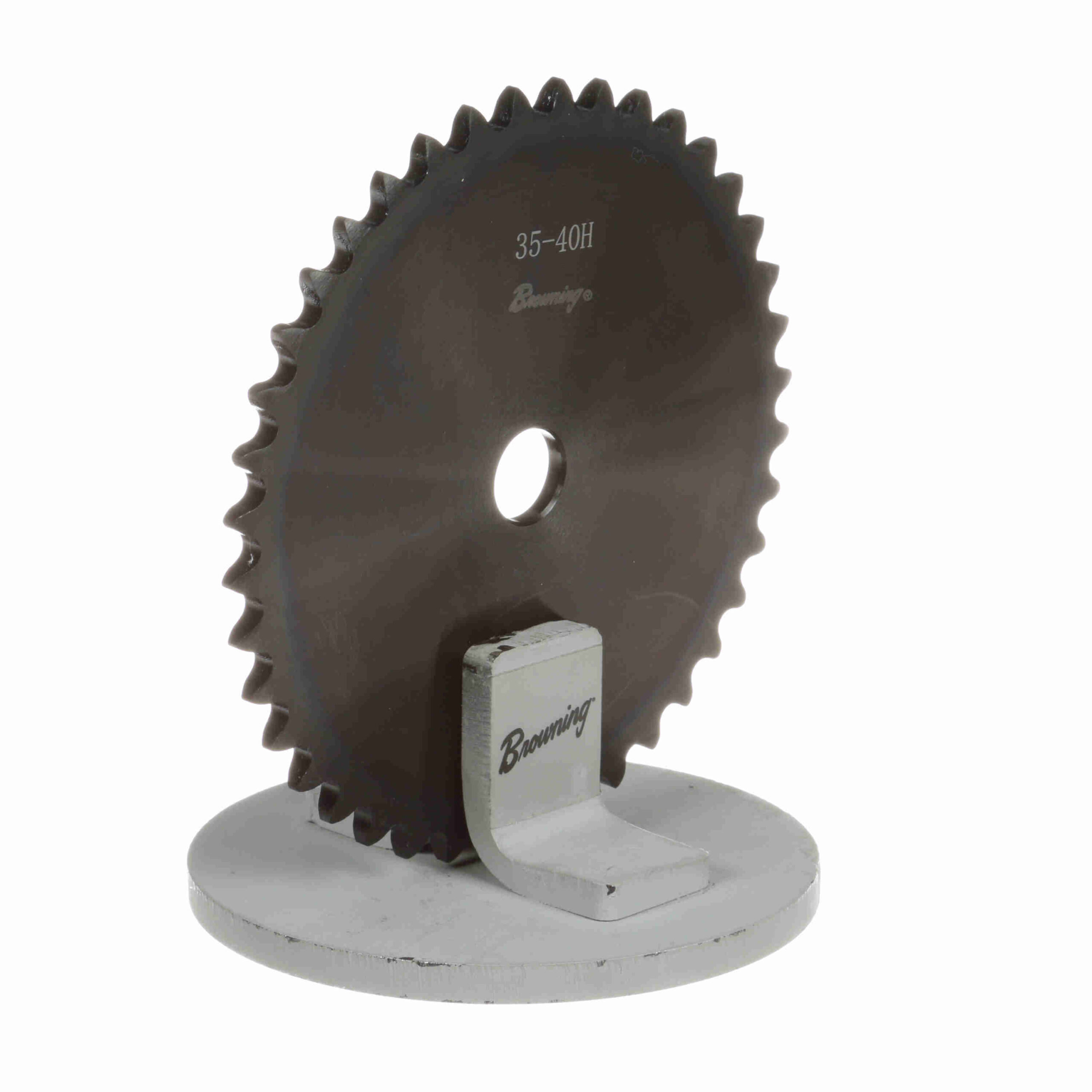

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 35A40
$82.92
Availability: 1 in stock
Availability: 1 in stock
| Chain Pitch (in): | 0.375 in | Product Type: | Type "A" Plate Sprocket |
|---|---|---|---|
| Number of teeth: | 40 | Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain |
| Material: | Steel | Overall Length (in): | 0.168 in |
| Hub Type: | Type A | Sprocket Material: | Steel, Hardened Teeth |
| Tooth Width (in): | 0.168 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 0.169 in | Outside Diameter (in): | 4.99 in |
| Chain Number: | No. 35, 3/8 in. Pitch ANSI Chain | Pitch Diameter (in): | 4.779561 in |
| Number of Strands/Width: | 1 | Bore (in): | 0.59375 in |
| Maximum Bore (in): | 1.625 | Number of Hubs: | 0 |
| Width Across Tooth Sets: | 0.168 | Hardened Teeth: | With Hardened Teeth |
| UPC: | 662289110506 | Weight: | 0.90 LB |
| Packaged Length: | 9.25 Inches | Packaged Width: | 9.25 Inches |
| Packaged Height: | 3.75 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
