- When you think Sprockets – Think Browning
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
35A30

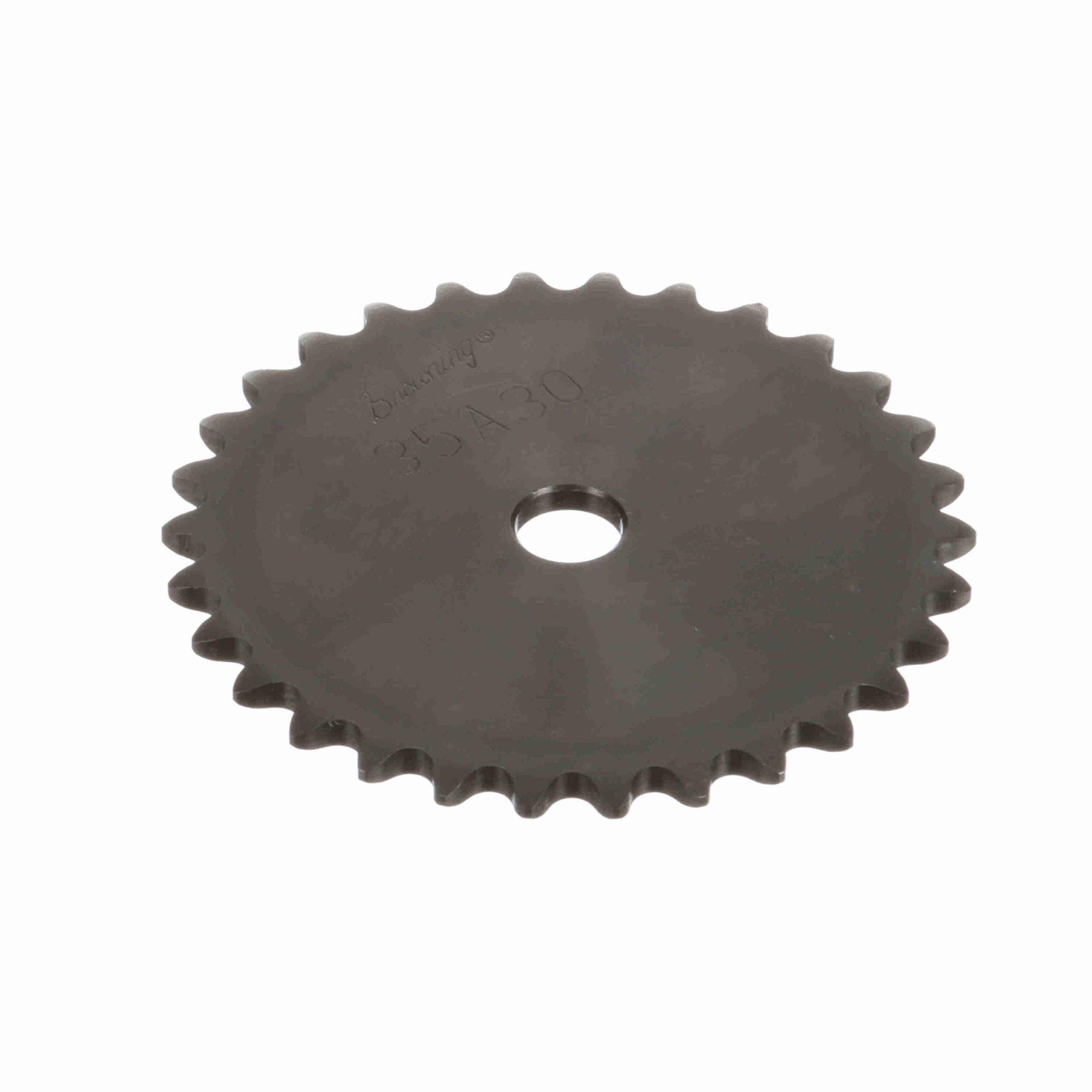

Browning Steel Minimum Plain Bore Roller Chain Sprocket – 35A30
Out of stock
| Number of teeth: | 30 | Material: | Steel |
|---|---|---|---|
| Chain Used: | No. 35, 3/8 in. Pitch ANSI Chain | Chain Pitch (in): | 0.375 in |
| Product Type: | Type "A" Plate Sprocket | Outside Diameter (in): | 3.793 in |
| Bore Type: | Minimum Plain Bore | Pitch Diameter (in): | 3.58754 in |
| Number of Strands/Width: | 1 | Bore (in): | 0.5 in |
| Length Through Bore (in): | 0.168 in | Tooth Width (in): | 0.168 in |
| Hub Type: | Type A | Maximum Bore (in): | 2 |
| Number of Hubs: | 0 | Width Across Tooth Sets: | 0.168 |
| Pitch Type: | Single | Hardened Teeth: | With Hardened Teeth |
| UPC: | 662289260492 | Weight: | 0.49 LB |
| Packaged Length: | 4.10 Inches | Packaged Width: | 3.90 Inches |
| Packaged Height: | 0.70 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
