- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
350A-1 TL MPB 3/4

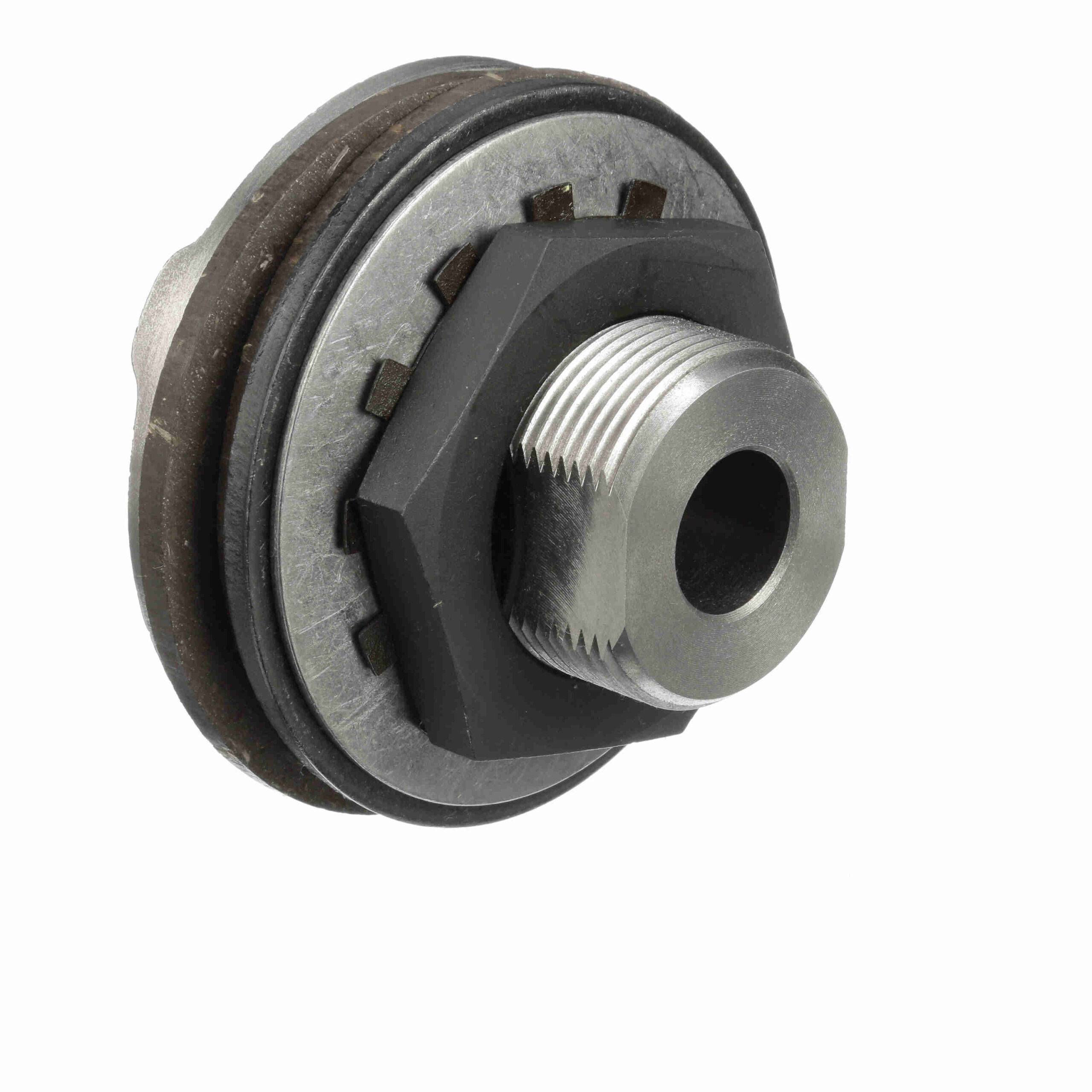

Morse Torque Limiter Model – 350A – 350A-1 TL MPB 3/4
$268.04
Out of stock
Out of stock
| Bore Shape: | Straight Bore | Outside Diameter (mm): | 88.9 mm |
|---|---|---|---|
| Unit Accuracy: | 0.25 | Total Length (mm): | 61.9125 mm |
| Detection Method: | Friction Pad | Recovery Style: | Automatic |
| Sprocket Bore Diameter: | 1.940/1.942 | Type: | Torque Overload Devices |
| Total Length (in): | 2.4375 in | Disconnect Method: | Friction Pad |
| Sensor Plate: | No | Bore Size (in): | 0.75 in |
| Backlash: | Zero | Trip Torque [Min]: | 15 |
| Reset Type: | Automatic | Torque [Min] (N-m): | 20.4 |
| Series / Model: | 350A | Maximum Bore w/ Key, Setscrew: | 1 |
| Outside Diameter (in): | 3.5 in | Torque Capacity [Max] (lb-ft): | 55 |
| Product Type: | Torque Limiter | Max RPM: | 1, 400 |
| Torque Capacity [Min] (lb-ft): | 15 | Torque [Max] (N-m): | 74.8 |
| Bore (Max) (in): | 1.125 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Minimum Sprocket Teeth: | #35 (35 Teeth) |
| #50 (21 Teeth) | #35 (35 Teeth) |
