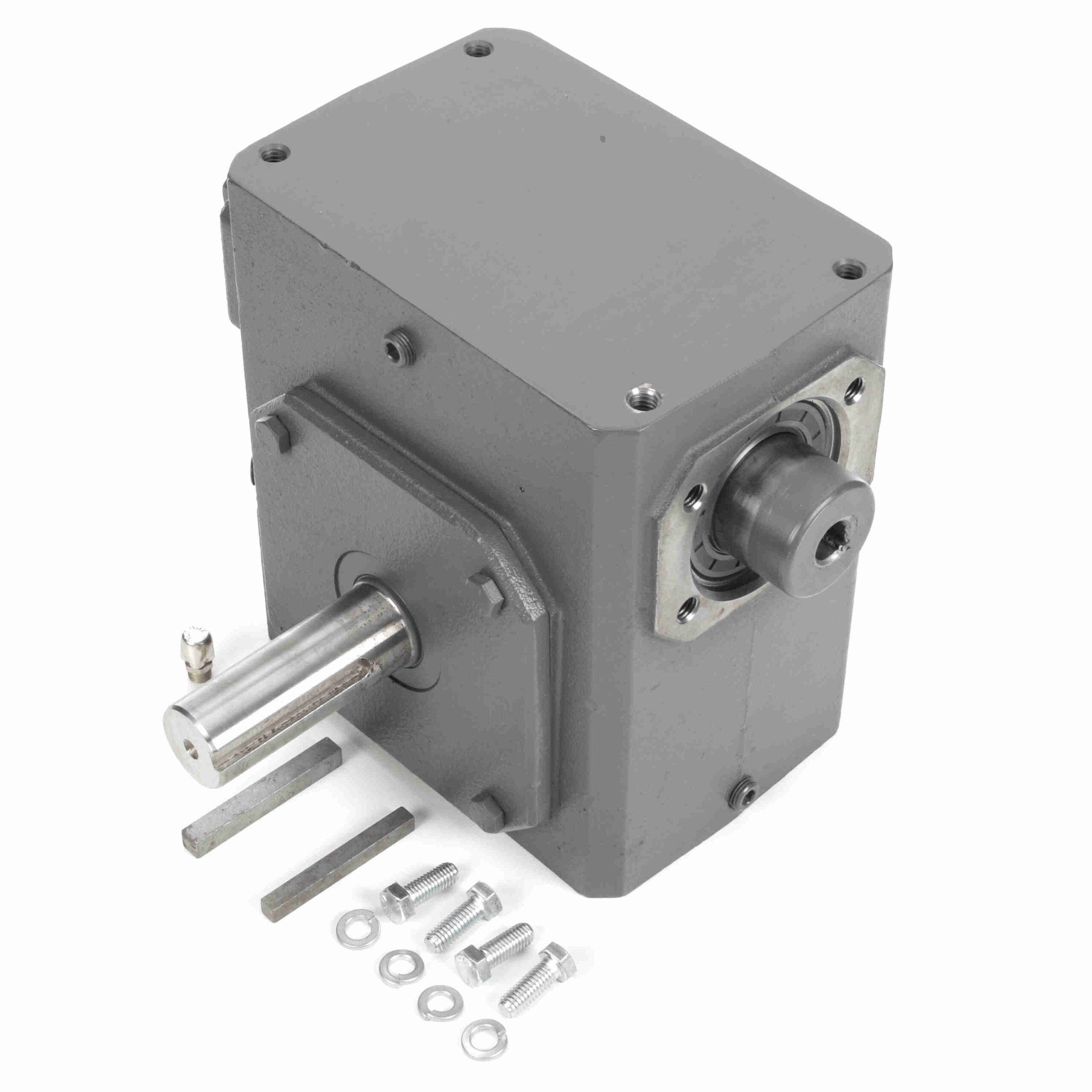

325Q56LR40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Shaft Seal Material:	Nitrile
Input Bore (C Face):	0.625	Efficiency:	80
Thrust Rating - output shaft:	3410	Reducer Style:	Standard
Ratio:	40:1	Motor Frame Size:	56C
Input Keyway (C Face):	3/16 X 3/32	Input Style:	C-Face Quill
Product Type:	Worm Speed Reducer	Mounting Style:	No Base
Output RPM:	43.7	Reducer:	Worm - Right Angle
No. of Gear Reductions:	Single	Center Distance (in):	3.25
Output Diameter (in):	1.375 in	Ratio Range:	40:1
Frame Size:	56C	Series Code:	Raider
Output Key:	5/16 X 2.88	Input RPM:	1, 75
Output Shaft Assembly Code:	D	Output Shaft Orientation:	LR
Input HP @ 1750 RPM:	2.43	Model Code:	325Q
Gear Type:	Worm	Service Factor:	1
Input Diameter (in):	0.625 in	Assembly:	Q-LR
Output Shaft Direction:	Double	Output Torque Rating (in-lb):	3303 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb)):	2, 401 lb	Housing Material:	Cast Iron
Output Shaft:	Solid Shaft	UPC:	6, 62288E+11
Weight:	75.00 LB
