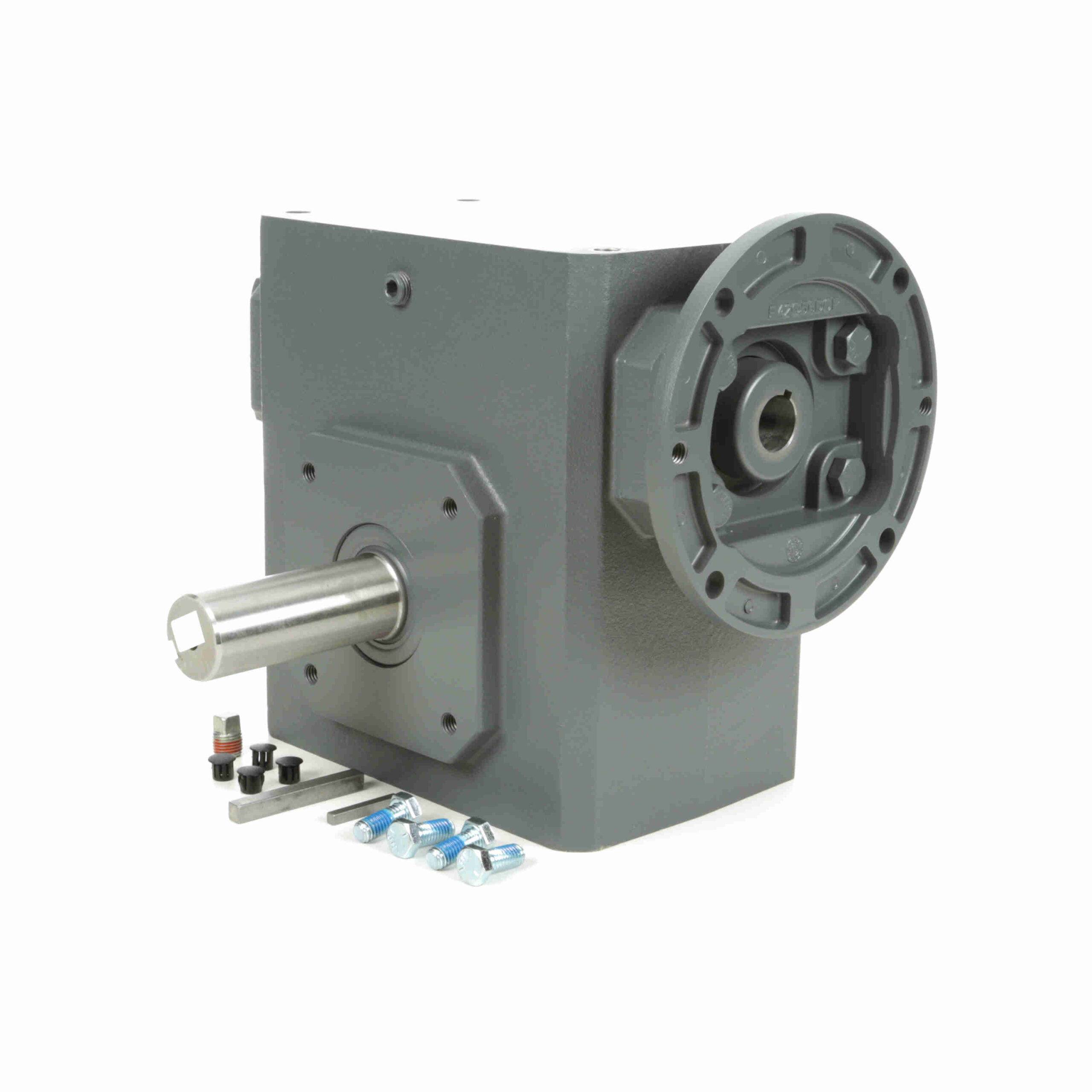

325Q140L60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Input Keyway (C Face):	3/16 X 3/32
Ratio:	60:1	Input Speed:	1750
Thrust Rating - output shaft:	3410	Input Bore (C Face):	0.875
Efficiency:	80	Motor Frame Size:	140TC
Reducer Style:	Standard	Center Distance (in):	3.25
Reducer:	Worm - Right Angle	Series Code:	Raider
Input HP @ 1750 RPM:	1.76	Output Shaft Assembly Code:	L
No. of Gear Reductions:	Single	Input Style:	C-Face Quill
Input Diameter (in):	0.875 in	Output RPM:	29.1
Model Code:	325Q	Output Key:	5/16 X 2.88
Frame Size:	140TC	Assembly:	Q-L
Input RPM:	1, 75	Output Diameter (in):	1.375 in
Mounting Style:	No Base	Ratio Range:	60:01:00
Gear Type:	Worm	Service Factor:	1
Product Type:	Worm Speed Reducer	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Overhung Load Rating (Output Shaft(lb)):	2, 401 lb	Output Torque Rating (in-lb):	3274 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	75.00 LB
Packaged Length:	19.38 Inches	Packaged Width:	15.11 Inches
Packaged Height:	15 Inches
