- Raceway: Asymmetric, circular grooves
- Two direction axial load carrying
- Dimensions in accordance with ISO 355:2007
3200 2RS

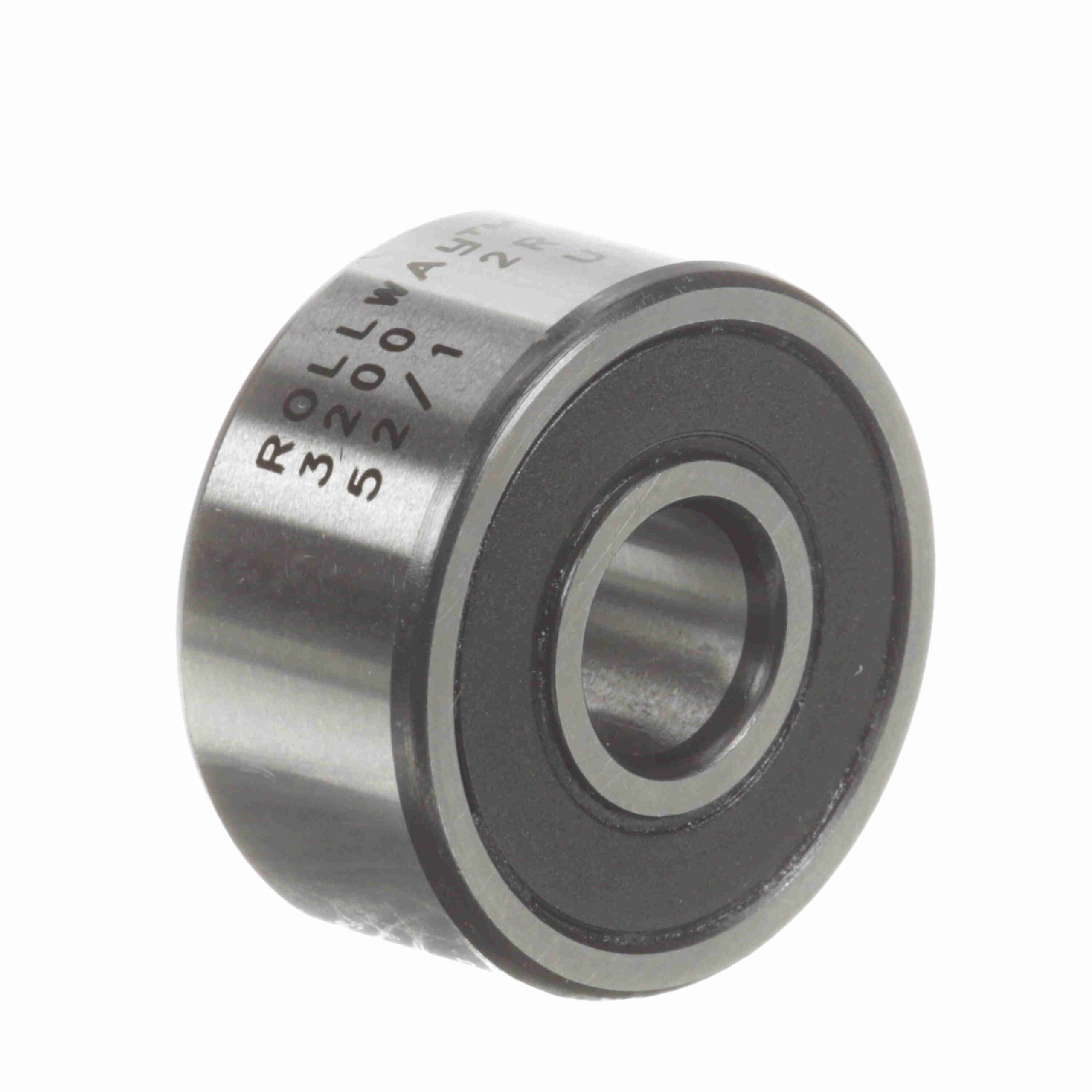

Rollway Angular Contact Ball Bearing – Double Row – Straight Bore – Sealed – 3200 2RS
$122.04
Availability: 2 in stock
Availability: 2 in stock
| Contact Angle: | 30° | Radial Clearance: | Normal |
|---|---|---|---|
| Seal Type: | Rubber Lip | Series: | 3200 |
| Bore Type: | Straight | Material: | 52100 Bearing Steel |
| Rolling Element: | Ball | Static Load Rating (kN): | 3.9 kN |
| Dynamic Load Rating (kN): | 7.8 kN | Number of Rows: | 2 |
| Misalignment: | No | Cage Material: | Steel |
| Duplexing: | No | Speed (Max) Oil (rpm): | 22, 000 rpm |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease (rpm): | 16, 000 rpm |
| Platform: | Double Row Angular Contact Ball Bearing | Full Complement/Caged: | Caged |
| Dynamic Load Rating (lb): | 1754 lb | UPC: | 637410094871 |
| Weight: | 0.11 LB | Packaged Length: | 1.18 Inches |
| Packaged Width: | 0.56 Inches | Packaged Height: | 1.18 Inches |
| Country of Origin: | China |
