- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
30LB050

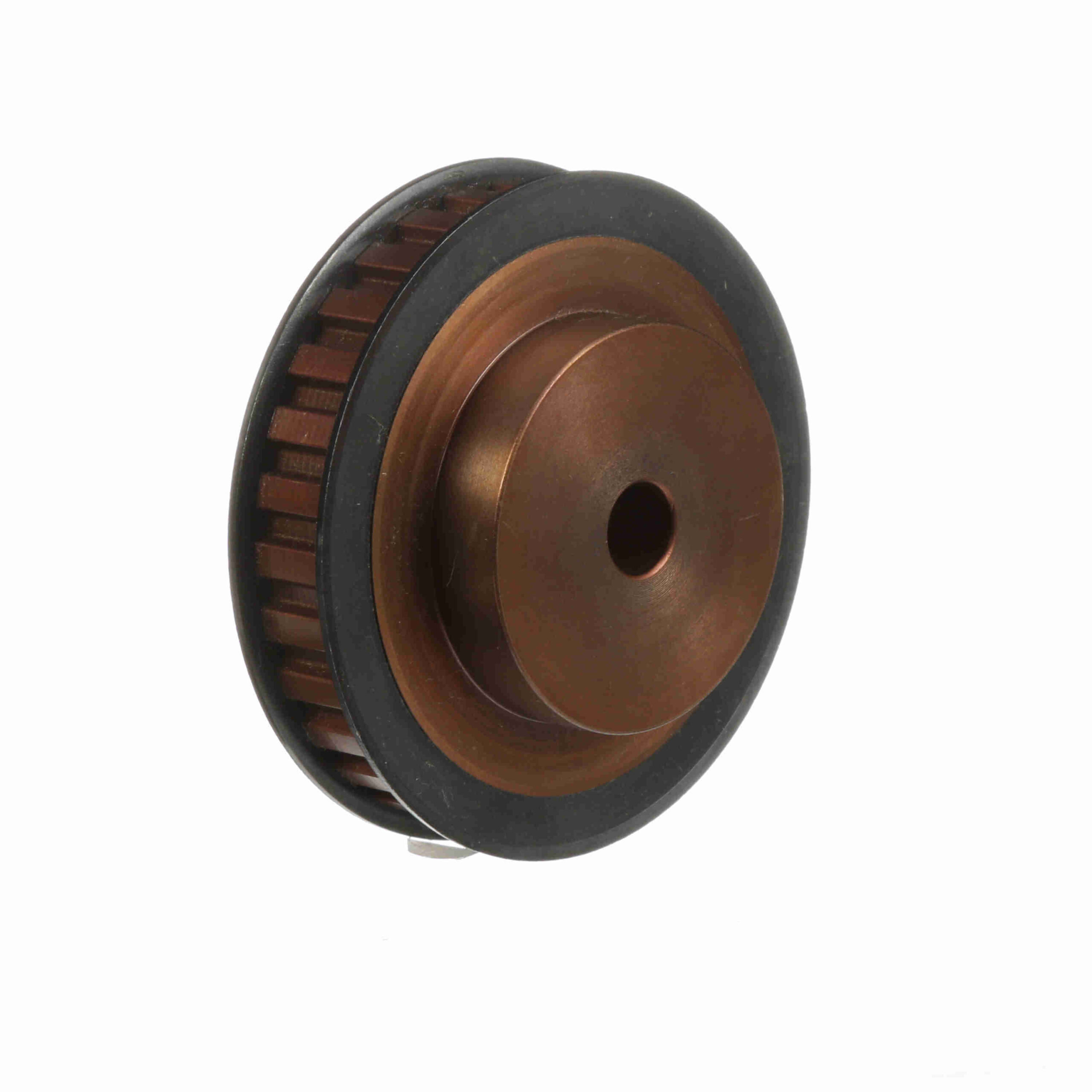

Browning Steel Rough Bore Gearbelt Pulley – 30LB050
$167.12
Out of stock
Out of stock
| Product Type: | Gearbelt Pulley | Bore Range: | 1/2 to 1 3/8 |
|---|---|---|---|
| Model Name: | GBPulley_Master2 | Width (mm): | 12.7 mm |
| Number of teeth: | 30 | Bore Type: | Rough Bore |
| Material: | Steel | Belt Section: | L |
| Outside Diameter (mm): | 90.1954 mm | Width (in): | 0.5 in |
| Pitch Diameter (in): | 3.581 in | Flange (in): | 3.800 in |
| Outside Diameter (in): | 3.551 in | Face Width: | 0.75 |
| With Flanges: | With Flanges | Length Through Bore: | 1.25 |
| Number of Hubs: | 1 | Hub Projection: | 0.5 |
| Pulley Construction: | Solid | Hub Diameter (in): | 2.25 in |
| Overall Length (in): | 1.25 in | Bore Diameter (in): | 0.5 in |
| UPC: | 662289112289 | Weight: | 2.38 LB |
| Packaged Length: | 4.3 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
