- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300UL10

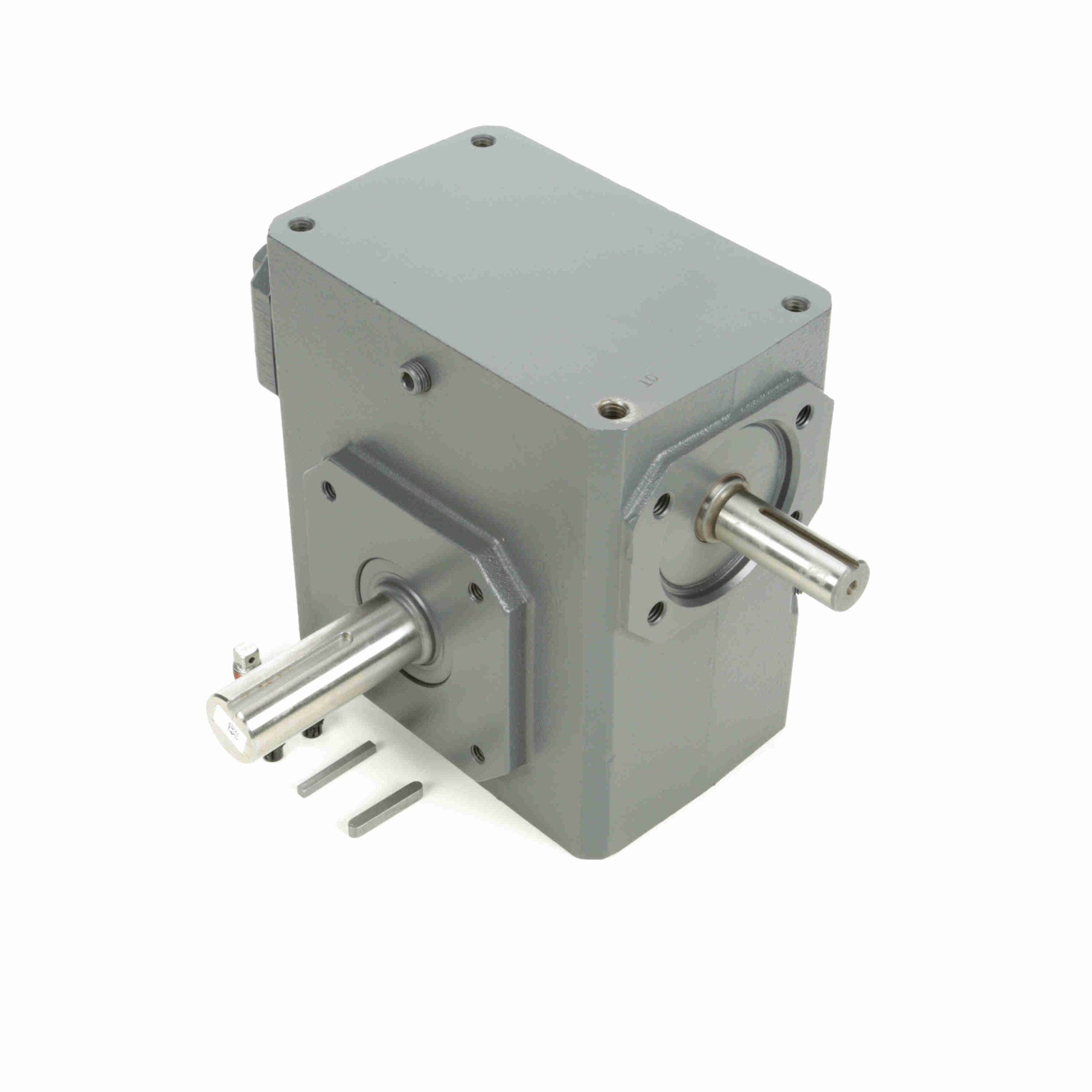

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300UL10
$2,089.49
Out of stock
Out of stock
| Efficiency: | 80 | Key Sq.: | 0.188 |
|---|---|---|---|
| Thrust Rating - output shaft: | 3322 | Ratio: | 10:1 |
| Reducer Style: | Standard | Shaft Seal Material: | Nitrile |
| Key Length: | 1.31 | Input Speed: | 1750 |
| Assembly: | U-L | Output Diameter (in): | 1.250 in |
| Product Type: | Worm Speed Reducer | Center Distance (in): | 3 |
| Series Code: | Raider | Input Keyway: | 3/16 X 1.31 in |
| Ratio Range: | 10:1 | Input Diameter (in): | 0.875 in |
| Input HP @ 1750 RPM: | 6.04 | Service Factor: | 1 |
| Model Code: | 300U | Reducer: | Worm - Right Angle |
| Output Key: | 1/4 X 2.25 | Mounting Style: | No Base |
| Input RPM: | 1, 75 | Output Shaft Assembly Code: | L |
| No. of Gear Reductions: | Single | Output RPM: | 175 |
| Input Style: | Solid Shaft | Gear Type: | Worm |
| Output Shaft Direction: | Left | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 987 lb |
| Output Torque Rating (in-lb): | 2037 in-lbs @1750 input RPM in/lbs | UPC: | 6, 62288E+11 |
| Weight: | 64.00 LB |
