- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300Q56H60 203

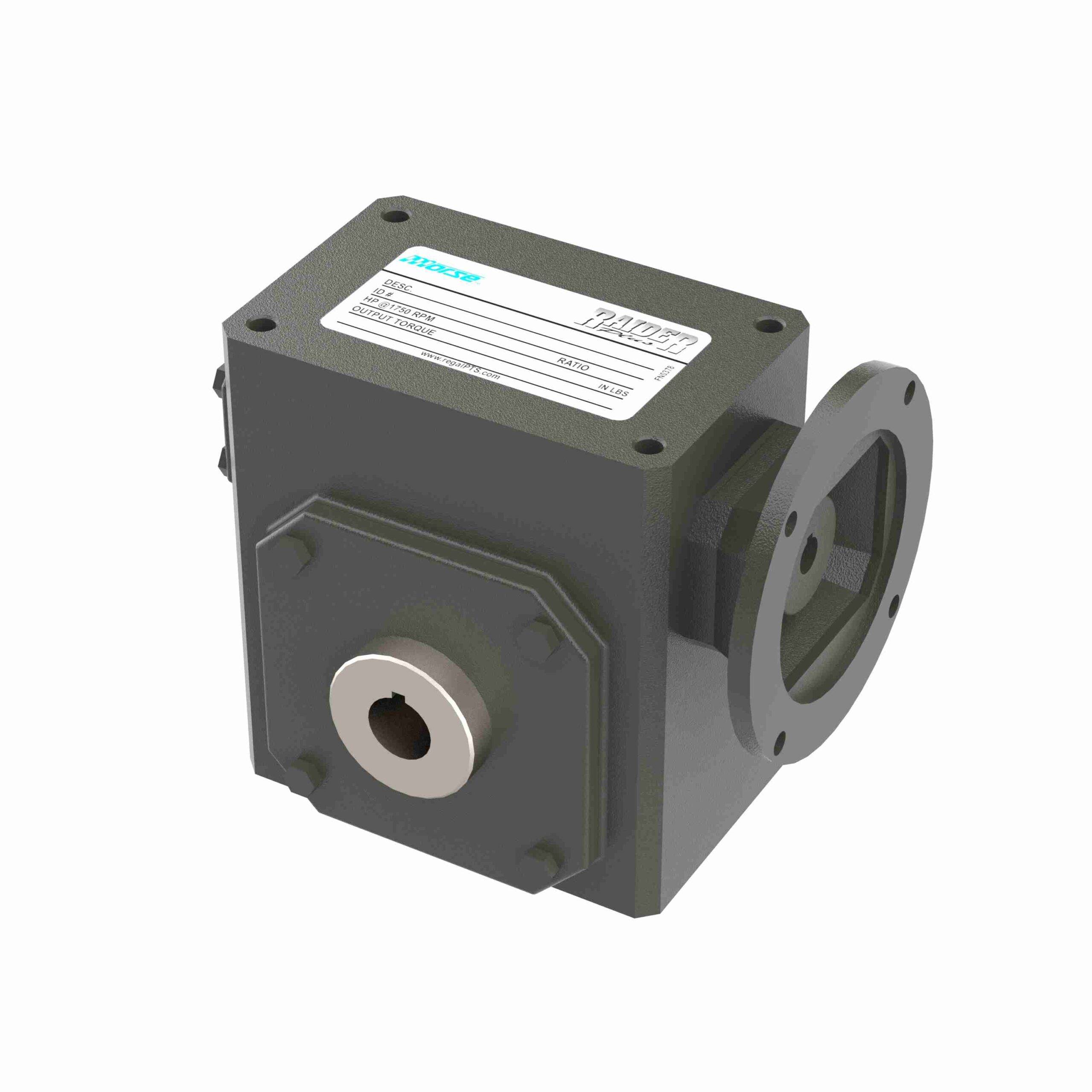

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300Q56H60 203
$2,350.02
Out of stock
Out of stock
| Efficiency: | 80 | Thrust Rating - output shaft: | 2574 |
|---|---|---|---|
| Reducer Style: | Standard | Input Bore (C Face): | 0.625 |
| Input Keyway (C Face): | 3/16x3/32 | Input Speed: | 1750 |
| Motor Frame Size: | 56C | Ratio: | 60:1 |
| Ratio Range: | 60:1 | Mounting Style: | Shaft Mt |
| Output Diameter (in): | 2.188 in | Series Code: | Raider |
| Input Style: | C-Face Quill | Service Factor: | 1 |
| Frame Size: | 56C | Input HP @ 1750 RPM: | 1.64 |
| Product Type: | Worm Speed Reducer | Gear Type: | Worm |
| Center Distance (in): | 3 | Input Diameter (in): | 0.625 in |
| No. of Gear Reductions: | Single | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 2, 574 lb | Output Torque Rating (in-lb): | 2413 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| UPC: | 6, 62288E+11 | Weight: | 69.00 LB |
| Packaged Length: | 19.38 Inches | Packaged Width: | 15.11 Inches |
| Packaged Height: | 15 Inches |
