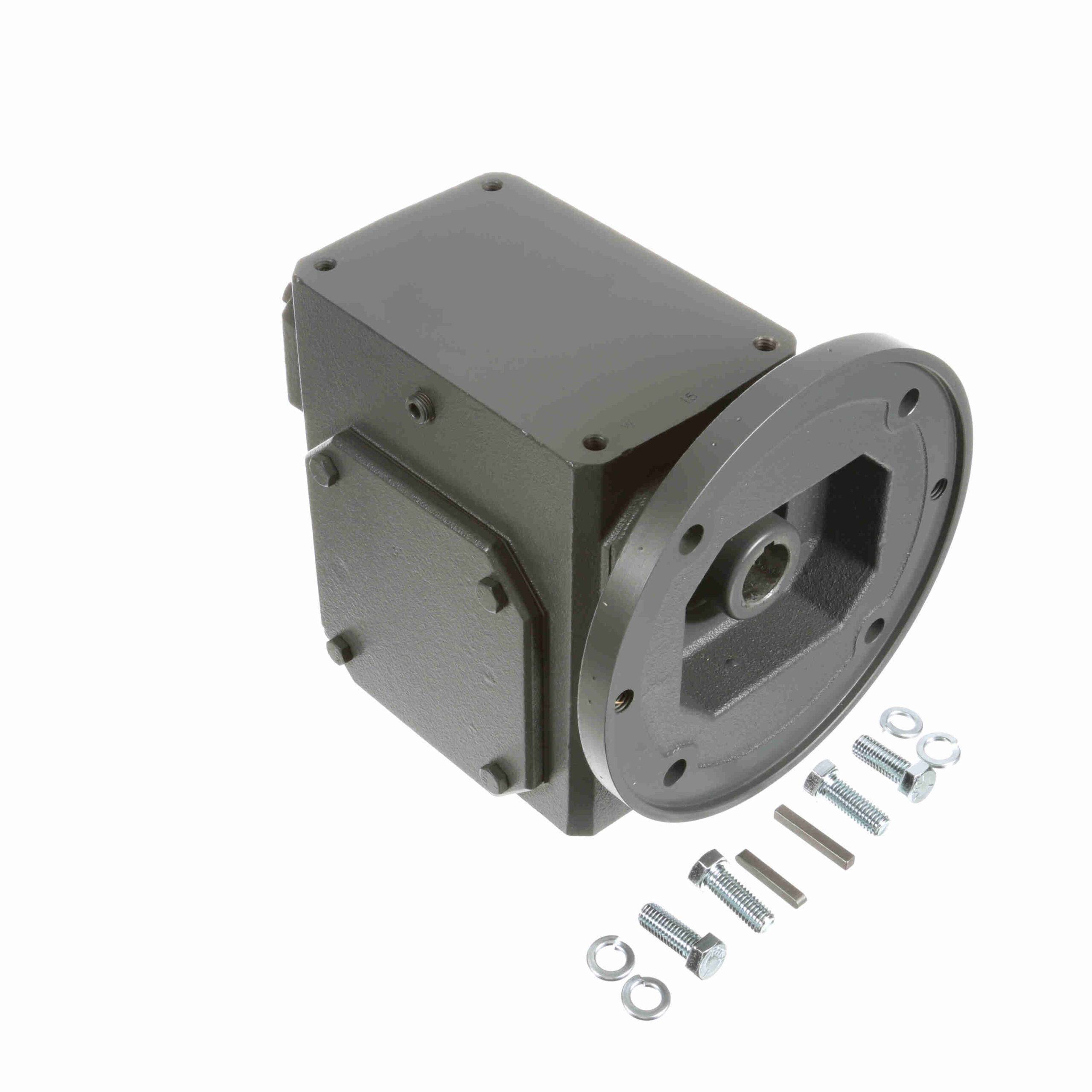

300Q180R15

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Keyway (C Face):	1/4 X 1/8	Input Bore (C Face):	1.125
Shaft Seal Material:	Nitrile	Efficiency:	80
Thrust Rating - output shaft:	3410	Input Speed:	1750
Reducer Style:	Standard	Motor Frame Size:	180TC
Ratio:	15:1	Input HP @ 1750 RPM:	4.57
Mounting Style:	No Base	Input Style:	C-Face Quill
No. of Gear Reductions:	Single	Output Diameter (in):	1.250 in
Input RPM:	1, 750	Output Shaft Assembly Code:	R
Service Factor:	1	Output RPM:	116.6
Model Code:	300Q	Product Type:	Worm Speed Reducer
Assembly:	Q-R	Ratio Range:	15:01
Center Distance (in):	3	Input Diameter (in):	1.125 in
Gear Type:	Worm	Series Code:	Raider
Frame Size:	180TC	Reducer:	Worm - Right Angle
Output Key:	1/4 X 2.25	Output Shaft Direction:	Right
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	2329 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb)):	987 lb	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	68.00 LB
