- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300Q180L10

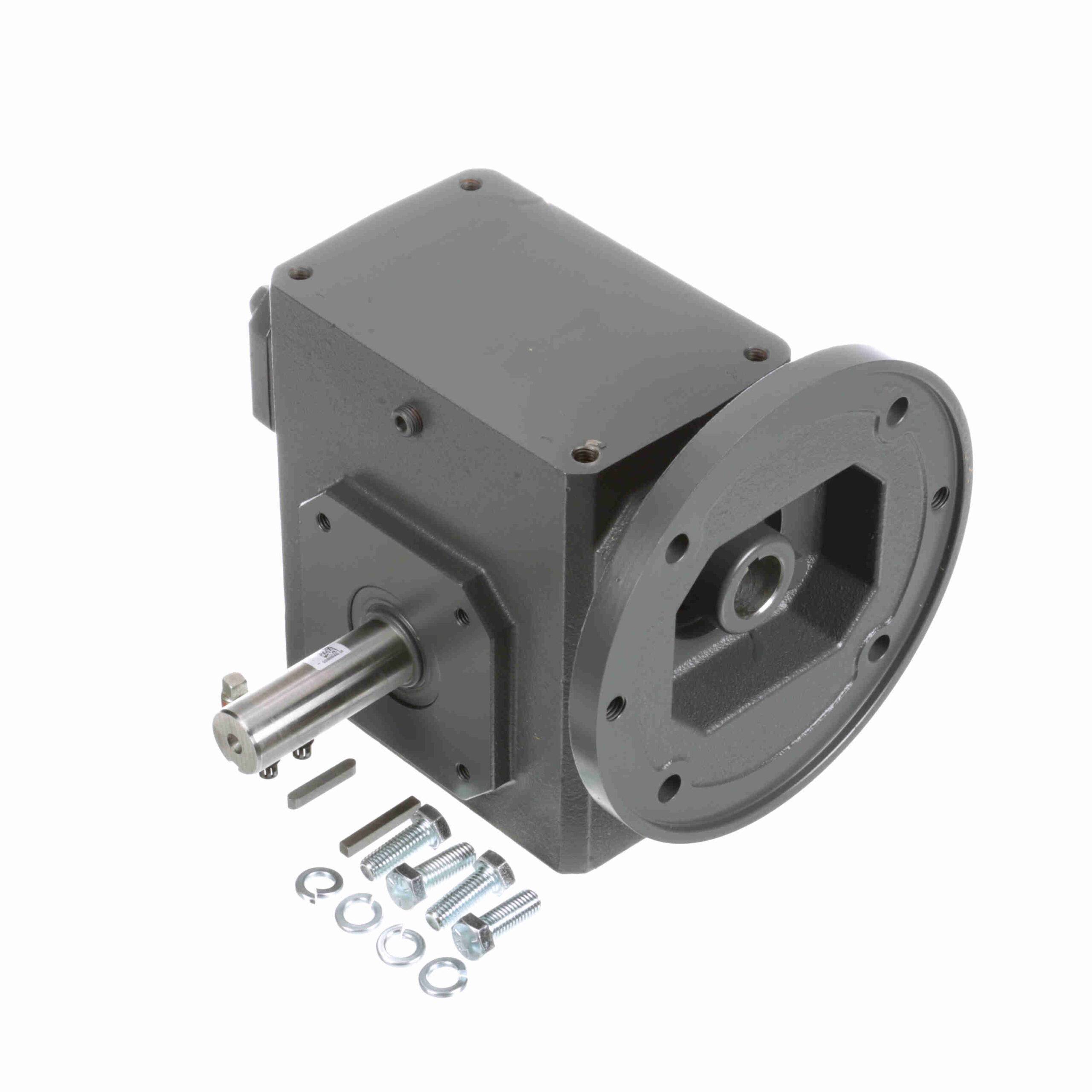

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300Q180L10
$2,328.21
Out of stock
Out of stock
| Thrust Rating - output shaft: | 3322 | Ratio: | 10:1 |
|---|---|---|---|
| Input Keyway (C Face): | 1/4 X 1/8 | Shaft Seal Material: | Nitrile |
| Efficiency: | 80 | Reducer Style: | Standard |
| Input Bore (C Face): | 1.125 | Motor Frame Size: | 180TC |
| Input Speed: | 1750 | Frame Size: | 180TC |
| Model Code: | 300Q | Assembly: | Q-L |
| Input Style: | C-Face Quill | Output RPM: | 175 |
| Input RPM: | 1, 750 | Output Shaft Assembly Code: | L |
| Series Code: | Raider | Ratio Range: | 10:1 |
| Center Distance (in): | 3 | Input HP @ 1750 RPM: | 6.04 |
| Output Diameter (in): | 1.250 in | Gear Type: | Worm |
| Output Key: | 1/4 X 2.25 | No. of Gear Reductions: | Single |
| Mounting Style: | No Base | Product Type: | Worm Speed Reducer |
| Reducer: | Worm - Right Angle | Service Factor: | 1 |
| Input Diameter (in): | 1.125 in | Output Shaft Direction: | Left |
| Overhung Load Rating (Output Shaft(lb)): | 987 lb | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 2037 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 68.00 LB |
