- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300Q140LR40

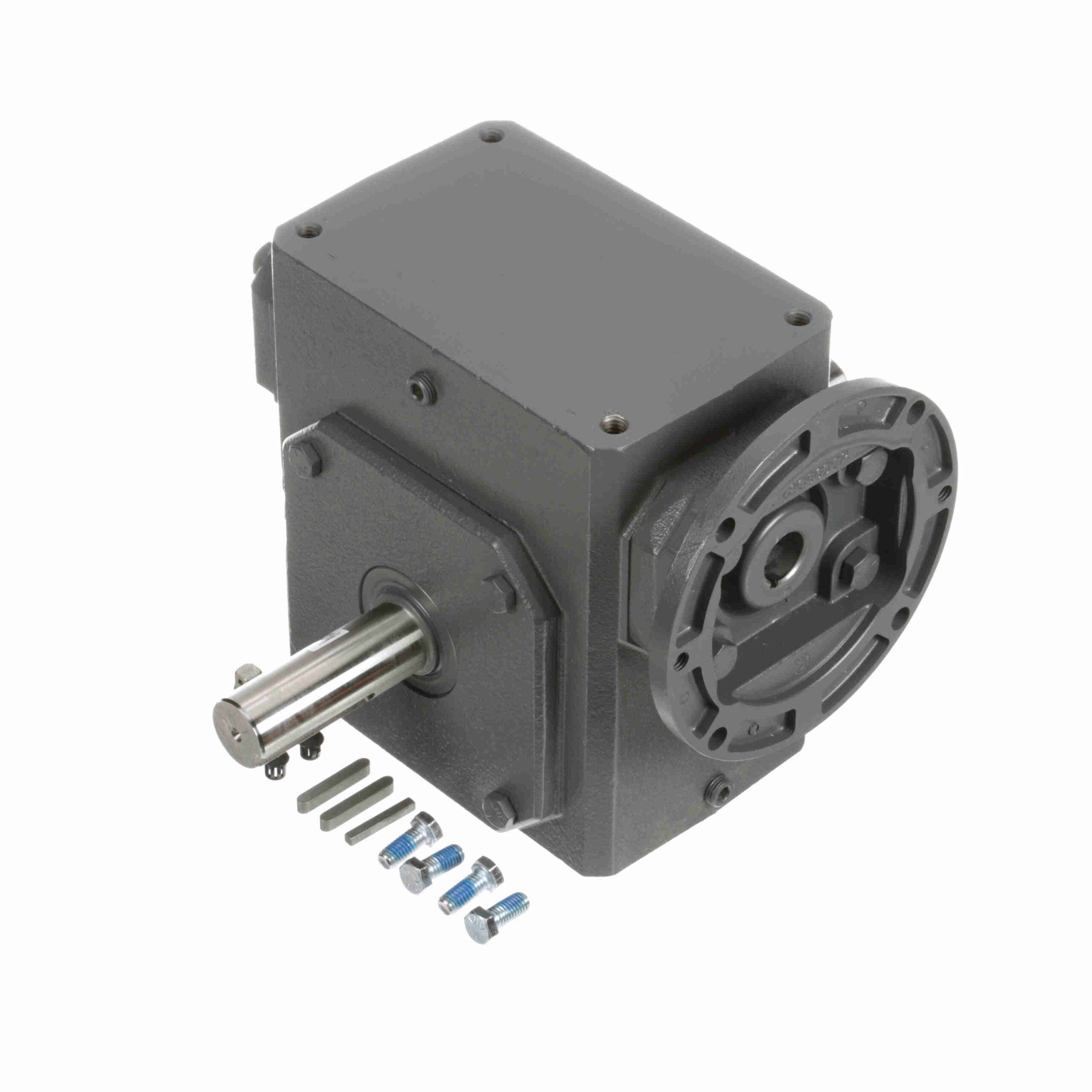

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300Q140LR40
$1,988.02
Out of stock
Out of stock
| Shaft Seal Material: | Nitrile | Input Keyway (C Face): | 3/16 X 3/32 |
|---|---|---|---|
| Reducer Style: | Standard | Input Bore (C Face): | 0.875 |
| Ratio: | 40:1 | Thrust Rating - output shaft: | 3410 |
| Motor Frame Size: | 140TC | Input Speed: | 1750 |
| Efficiency: | 80 | Output RPM: | 43.7 |
| Input Diameter (in): | 0.875 in | Input Style: | C-Face Quill |
| Output Shaft Orientation: | LR | Input RPM: | 1, 750 |
| Mounting Style: | No Base | Product Type: | Worm Speed Reducer |
| Output Key: | 1/4 X 2.25 | Center Distance (in): | 3 |
| Service Factor: | 1 | Output Shaft Assembly Code: | D |
| Frame Size: | 140TC | Model Code: | 300Q |
| Ratio Range: | 40:01:00 | Output Diameter (in): | 1.250 in |
| Input HP @ 1750 RPM: | 2.04 | Gear Type: | Worm |
| No. of Gear Reductions: | Single | Reducer: | Worm - Right Angle |
| Series Code: | Raider | Assembly: | Q-LR |
| Output Shaft Direction: | Double | Output Shaft: | Solid Shaft |
| Output Torque Rating (in-lb): | 2477 in-lbs @1750 input RPM in/lbs | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 987 lb | UPC: | 6, 62288E+11 |
| Weight: | 68.00 LB |
