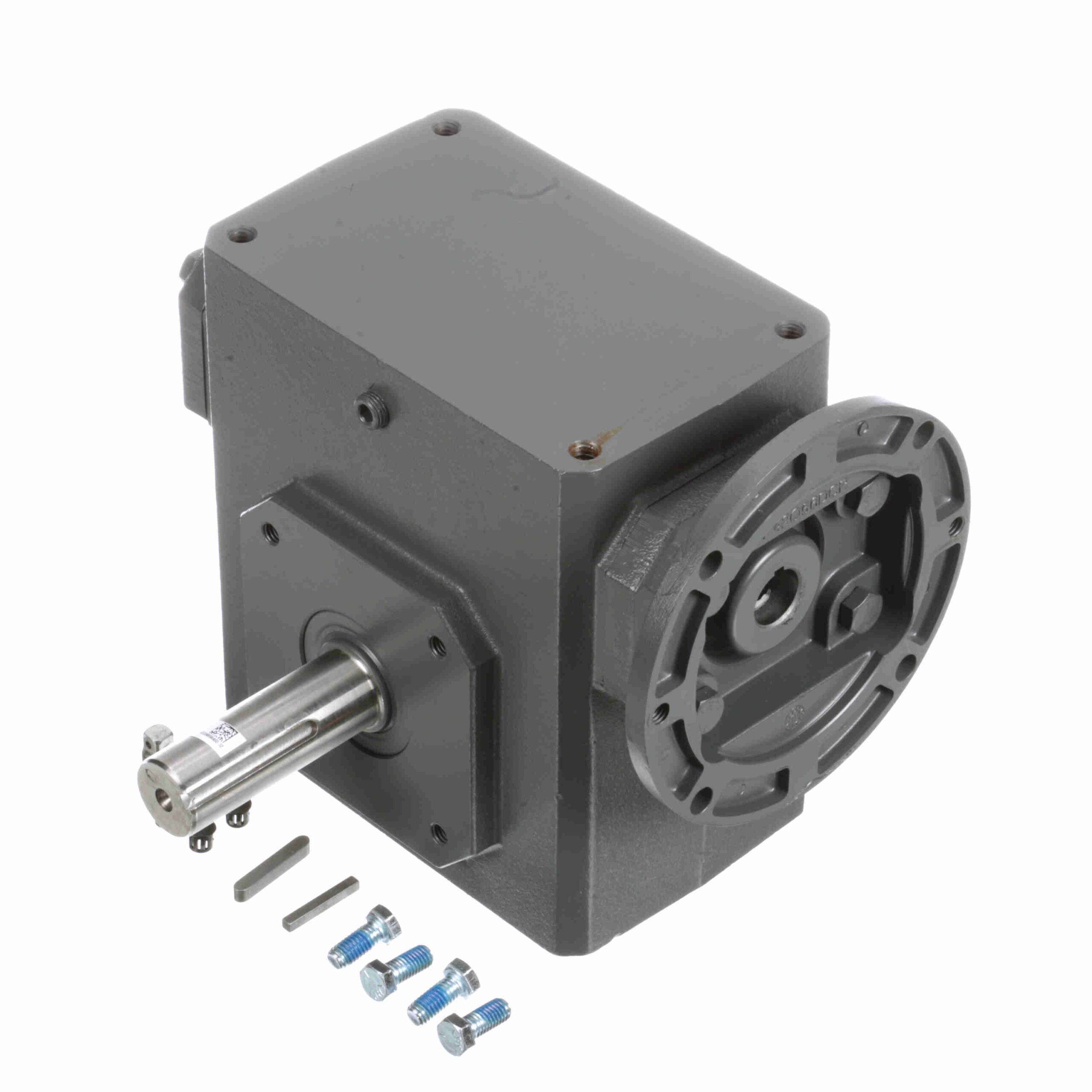

300Q140L50

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Input Speed:	1750
Thrust Rating - output shaft:	3410	Input Bore (C Face):	0.875
Input Keyway (C Face):	3/16 X 3/32	Motor Frame Size:	140TC
Ratio:	50:1	Reducer Style:	Standard
Shaft Seal Material:	Nitrile	Output RPM:	35
Output Shaft Assembly Code:	L	Ratio Range:	50:1
Product Type:	Worm Speed Reducer	Center Distance (in):	3
Service Factor:	1	Assembly:	Q-L
Input RPM:	1, 750	Series Code:	Raider
Output Key:	1/4 X 2.25	Gear Type:	Worm
Output Diameter (in):	1.250 in	Input HP @ 1750 RPM:	1.64
Reducer:	Worm - Right Angle	Input Diameter (in):	0.875 in
Input Style:	C-Face Quill	Model Code:	300Q
Mounting Style:	No Base	Frame Size:	140TC
No. of Gear Reductions:	Single	Output Shaft Direction:	Left
Output Torque Rating (in-lb):	2490 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	987 lb
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	68.00 LB
