- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
300Q140L40

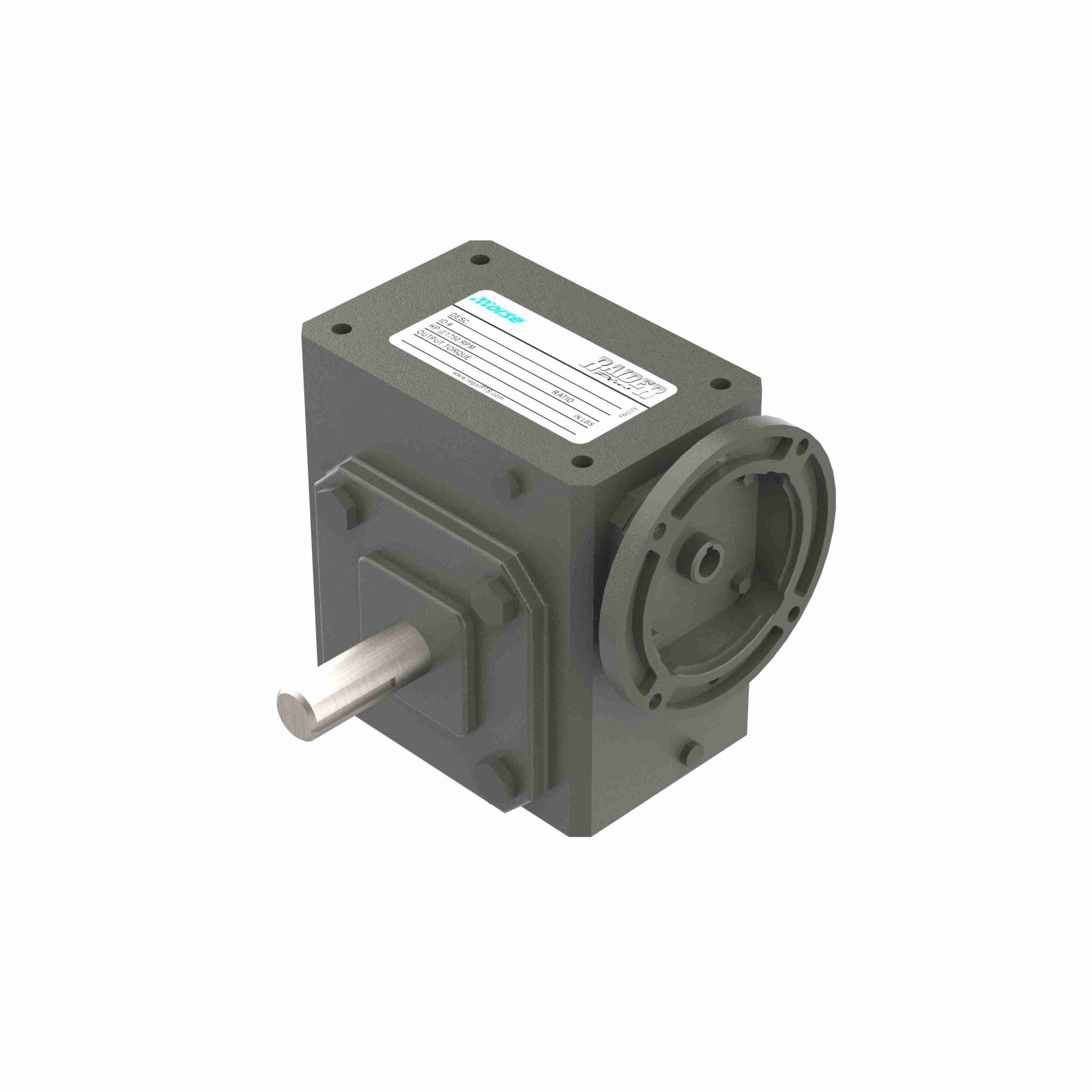

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 300Q140L40
$1,988.02
Out of stock
Out of stock
| Thrust Rating - output shaft: | 3410 | Shaft Seal Material: | Nitrile |
|---|---|---|---|
| Input Bore (C Face): | 0.875 | Ratio: | 40:1 |
| Motor Frame Size: | 140TC | Input Speed: | 1750 |
| Reducer Style: | Standard | Input Keyway (C Face): | 3/16 X 3/32 |
| Efficiency: | 80 | Input Style: | C-Face Quill |
| Product Type: | Worm Speed Reducer | Output Key: | 1/4 X 2.25 |
| Output Diameter (in): | 1.250 in | No. of Gear Reductions: | Single |
| Ratio Range: | 40:1 | Reducer: | Worm - Right Angle |
| Output Shaft Assembly Code: | L | Service Factor: | 1 |
| Input RPM: | 1, 750 | Input Diameter (in): | 0.875 in |
| Model Code: | 300Q | Output RPM: | 43.7 |
| Center Distance (in): | 3 | Input HP @ 1750 RPM: | 2.04 |
| Series Code: | Raider | Assembly: | Q-L |
| Mounting Style: | No Base | Frame Size: | 140TC |
| Gear Type: | Worm | Output Shaft Direction: | Left |
| Output Shaft: | Solid Shaft | Output Torque Rating (in-lb): | 2477 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 987 lb |
| UPC: | 6, 62288E+11 | Weight: | 68.00 LB |
| Packaged Length: | 19.38 Inches | Packaged Width: | 15.11 Inches |
| Packaged Height: | 15 Inches |
