- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened double lock inner ring with 120° spacing setscrew lock with diamond faceted setscrews on each side of ball path
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

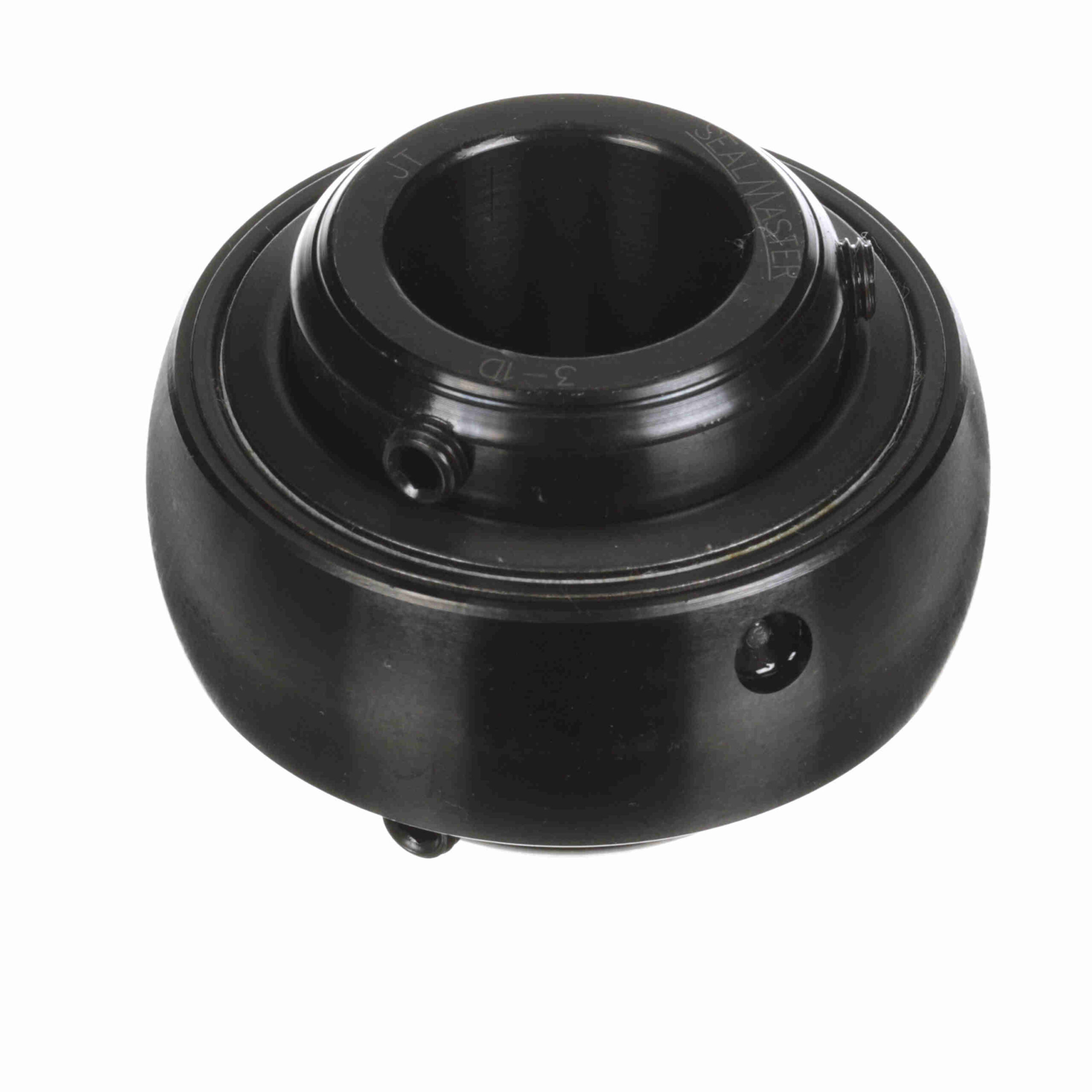

3-1D
Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – 3-1D
Out of stock
| Housing Type: | Insert Only | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Bore Shape: | Straight | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Radius: | 0.04 | Set Screw Thread: | 46844 |
| Measure Units: | Inch | Speed (Max) (RPM): | 7600 rpm |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 4, 381 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 2, 567 lb | Cage Material: | Brass |
| Precision Rating: | ABEC 1 | Outer Race Profile: | Spherical |
| Inner Race Profile: | Wide Inner Ring | Locking Type: | Double Setscrew |
| Inner Race Heat Treat Method: | Zone-Hardened | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Retainer Type: | Land Riding Retainer | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Type of Seal: | Felt Labyrinth Seal |
| Fixed vs. Expansion: | No | Duty/Series: | Medium |
| UPC: | 662461015131 | Weight: | 1.11 LB |
| Packaged Length: | 3.13 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
