- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
3-015

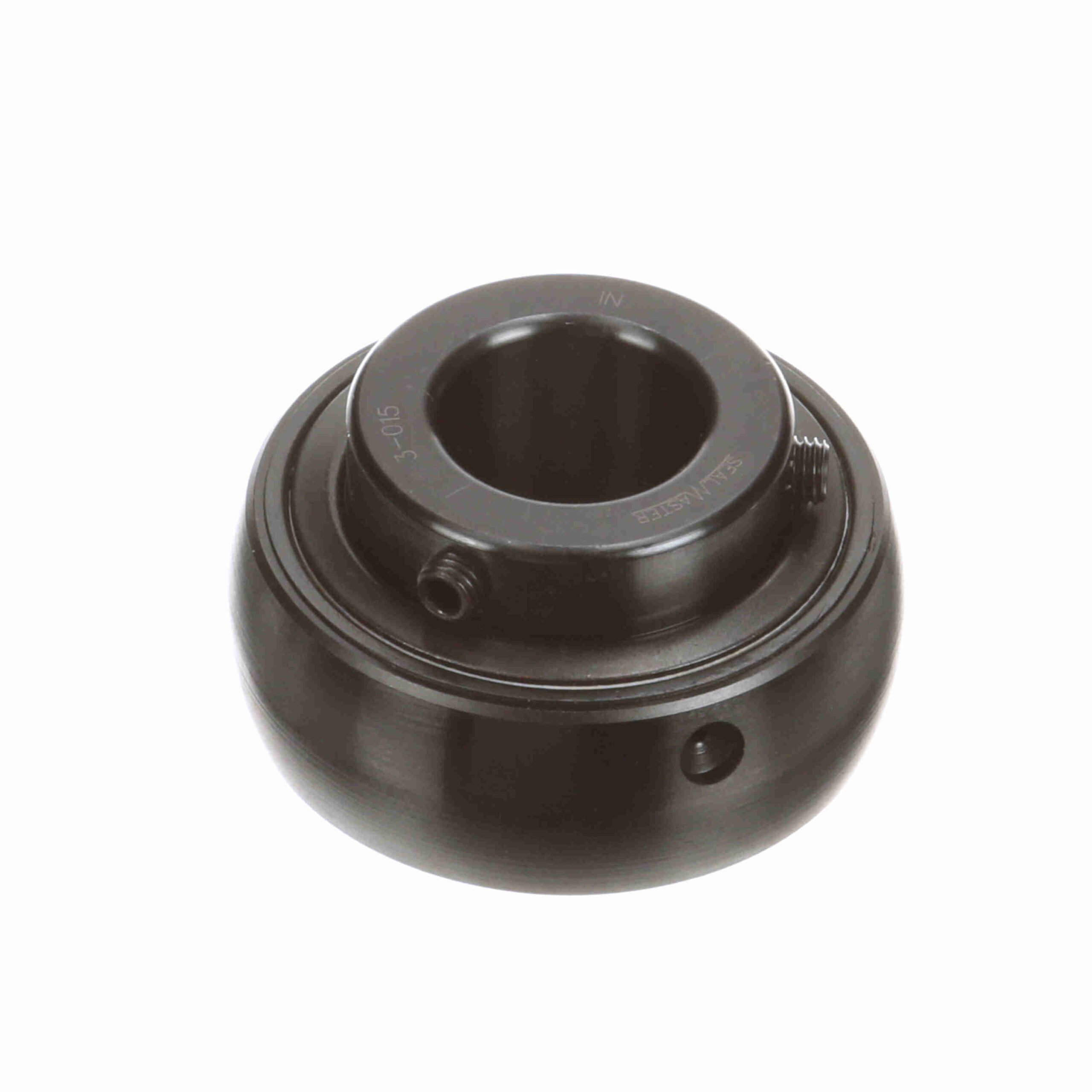

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – 3-015
$136.91
Availability: 3 in stock
Availability: 3 in stock
| Radius: | 0.04 | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Set Screw Thread: | 46844 | Housing Type: | Insert Only |
| Bore Shape: | Straight | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Measure Units: | Inch | Speed (Max) (RPM): | 5450 rpm |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 4, 381 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Radial Static Load Capacity (lb): | 2, 567 lb | Precision Rating: | ABEC 1 |
| Cage Material: | PPS | Inner Race Profile: | Wide Inner Ring |
| Outer Race Profile: | Spherical | Fixed vs. Expansion: | No |
| Duty/Series: | Medium | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Retainer Type: | Land Riding Retainer |
| Ability to Relubricate: | Yes | Locking Type: | Setscrew |
| Type of Seal: | Felt Labyrinth Seal | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| UPC: | 662461000588 | Weight: | 1.00 LB |
| Packaged Length: | 2.75 Inches | Packaged Width: | 1.56 Inches |
| Packaged Height: | 2.75 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
