- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2R5V150

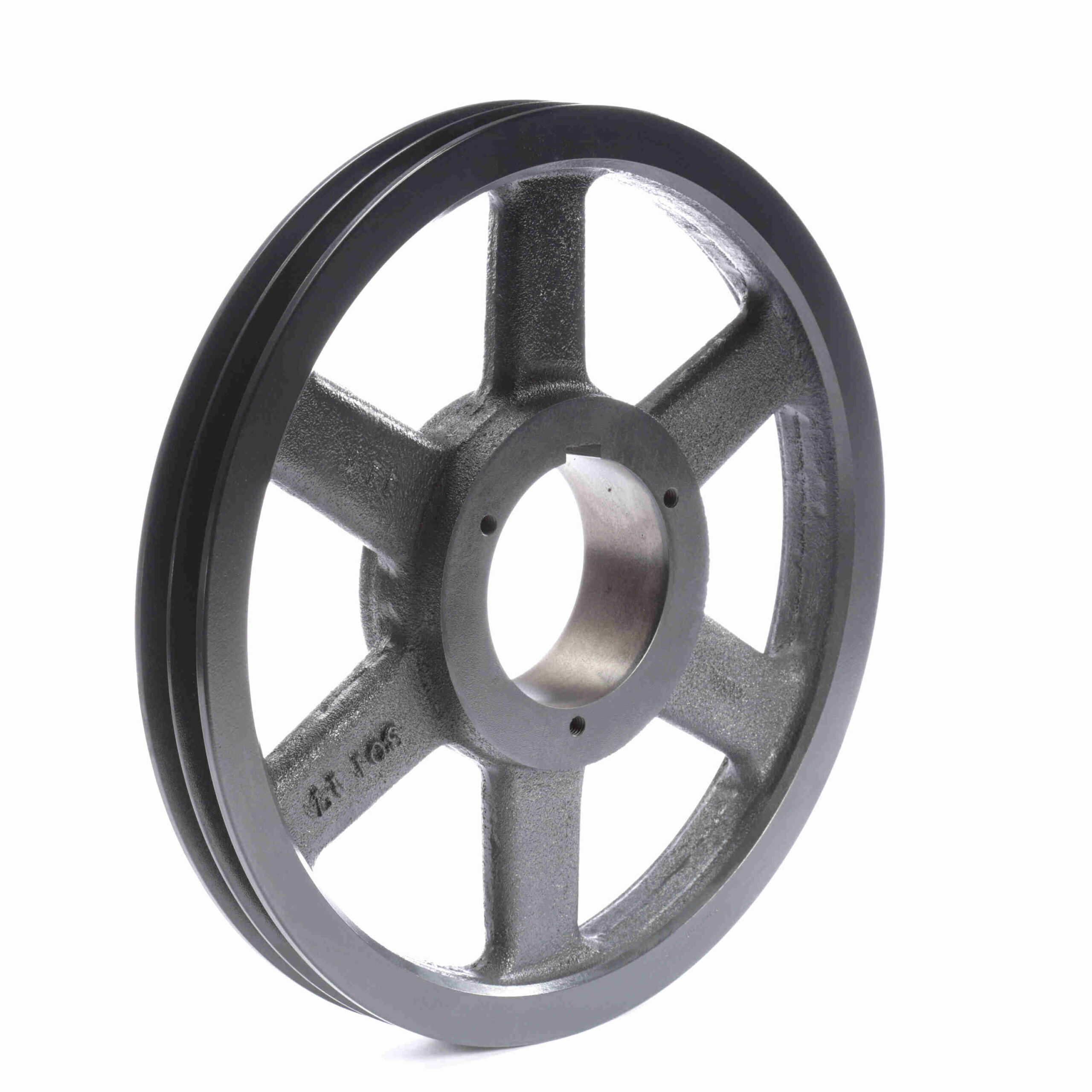

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2R5V150
$666.32
Out of stock
Out of stock
| Overall Length (in): | 3.171875 in | Bushing Used: | R1 |
|---|---|---|---|
| Outside Diameter (in): | 15 in | Material: | Cast Iron |
| Belt Type: | Classic or 358 | Number of Hubs: | 1 |
| Number of Flanges: | 3 | Pulley Material: | Cast Iron |
| Pitch Diameter (5V): | 14.9 | Number of Grooves: | 2 |
| Product Type: | Multiple Sheaves | Belt Section: | 5V |
| Bore (Min) (in): | 1.125 in | Bore Type: | Split Taper Bushed |
| Face Width (in): | 1.6875 | Keyway Size: | .750 |
| Bushing Bore Range: | 1.125 - 3.750 | UPC: | 662289312108 |
| Weight: | 29.87 LB | Packaged Length: | 16.40 Inches |
| Packaged Width: | 16.30 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
