- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
28LB075

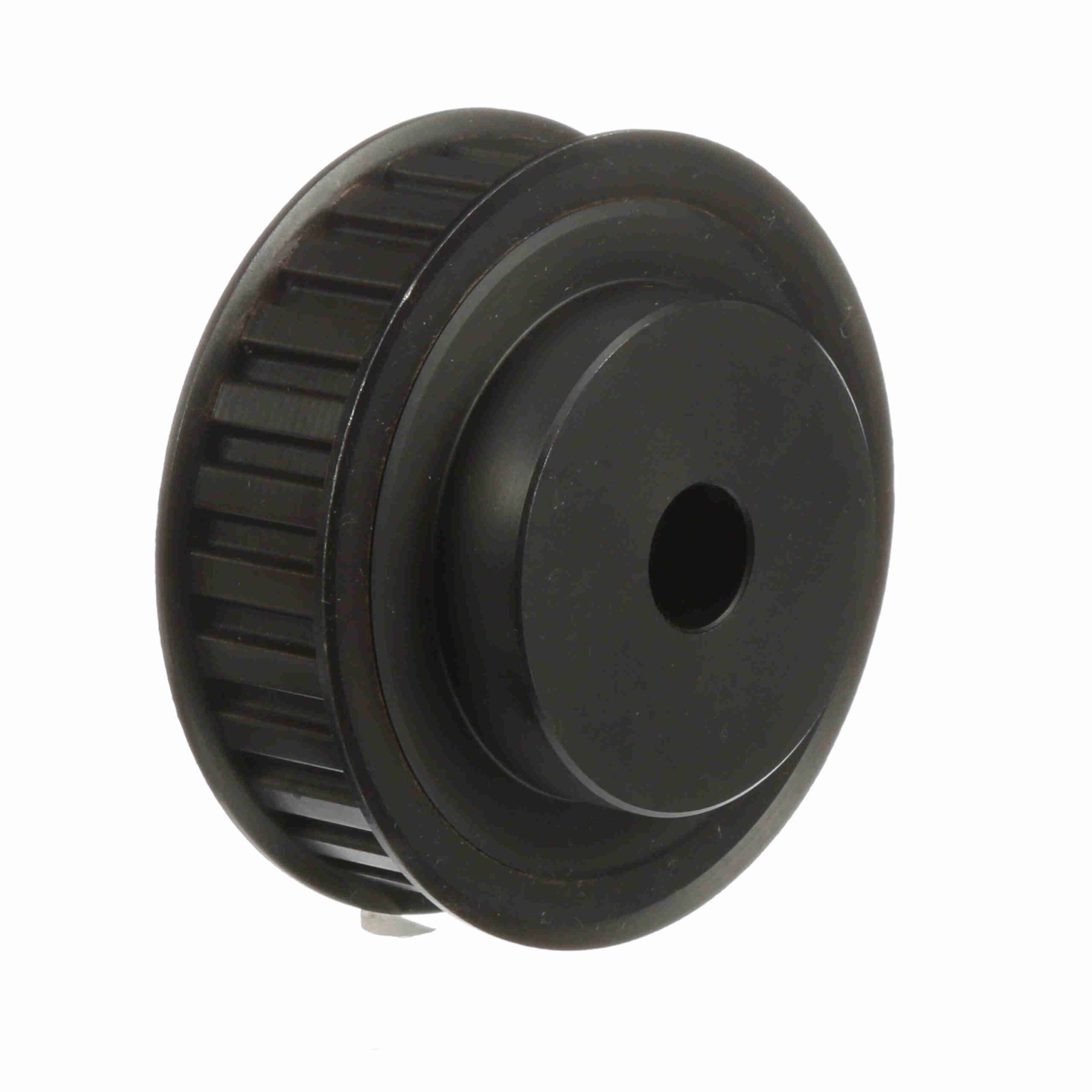

Browning Steel Rough Bore Gearbelt Pulley – 28LB075
$223.02
Out of stock
Out of stock
| Model Name: | GBPulley_Master2 | Width (mm): | 19.05 mm |
|---|---|---|---|
| Bore Range: | 5/8 to 1 3/8 | Number of teeth: | 28 |
| Product Type: | Gearbelt Pulley | Material: | Steel |
| Bore Type: | Rough Bore | Belt Section: | L |
| Pitch Diameter (in): | 3.342 in | Width (in): | 0.75 in |
| Outside Diameter (in): | 3.312 in | Flange (in): | 3.566 in |
| Outside Diameter (mm): | 84.1248 mm | Face Width: | 1 |
| Length Through Bore: | 1.5 | Overall Length (in): | 1.5 in |
| Bore Diameter (in): | 0.625 in | Hub Projection: | 0.5 |
| With Flanges: | With Flanges | Number of Hubs: | 1 |
| Pulley Construction: | Solid | Hub Diameter (in): | 2.25 in |
| UPC: | 662289314263 | Weight: | 2.60 LB |
| Packaged Length: | 3.7 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.9 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
