- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
28L075SH

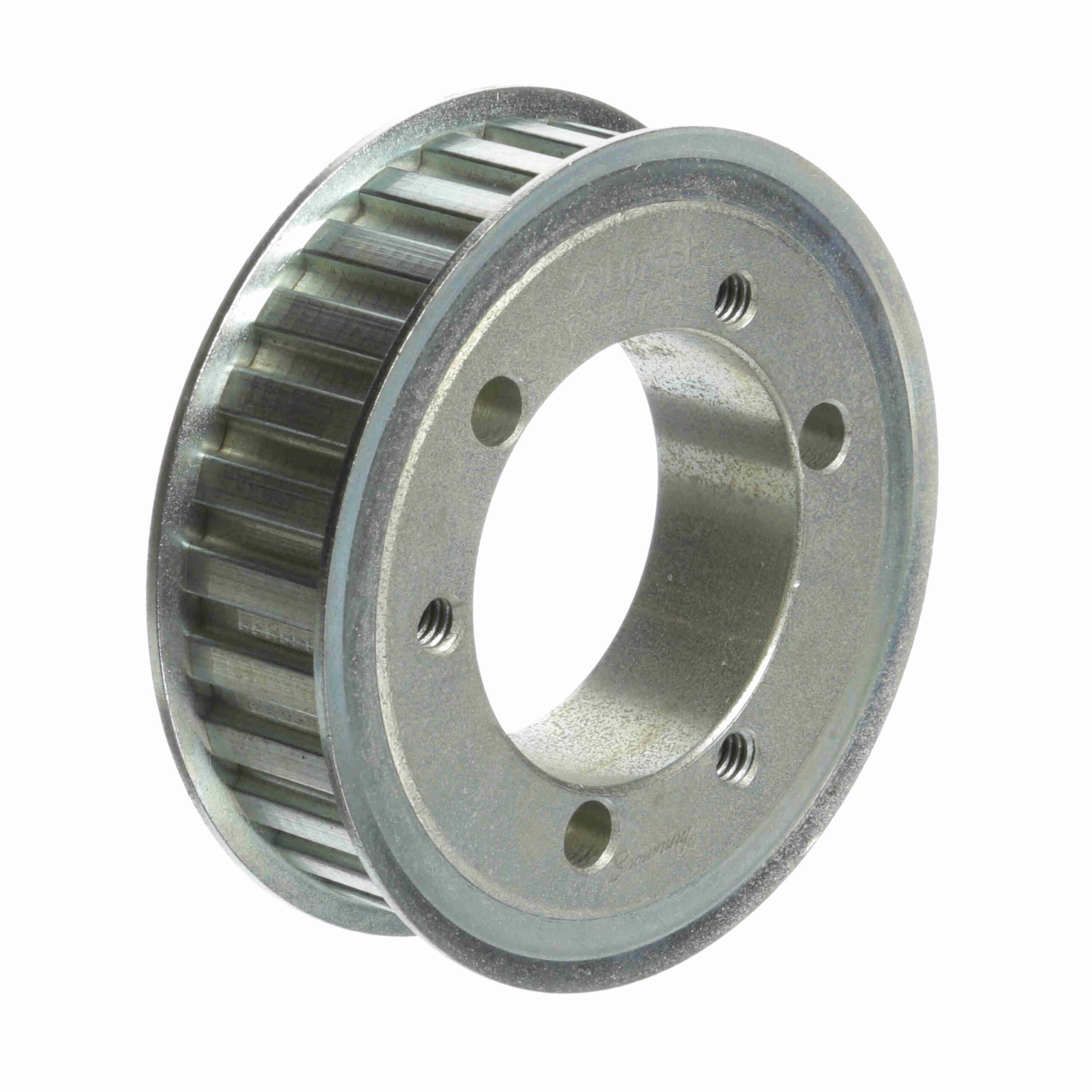

Browning Steel Bushed Bore Gearbelt Pulley – 28L075SH
$222.16
Out of stock
Out of stock
| Number of teeth: | 28 | Width (mm): | 19.05 mm |
|---|---|---|---|
| Model Name: | GBPulley_Master6 | Product Type: | Gearbelt Pulley |
| Bore Range: | 1/2 to 1 5/8 | Bore Type: | Bushed Bore |
| Material: | Steel | Outside Diameter (mm): | 84.1248 mm |
| Belt Section: | L | Pitch Diameter (in): | 3.342 in |
| Width (in): | 0.75 in | Flange (in): | 3.56 in |
| Outside Diameter (in): | 3.312 in | Face Width: | 1 |
| Hub Diameter (in): | 2.7 in | Pulley Construction: | Solid |
| With Flanges: | With Flanges | Hub Projection: | 0.95 |
| Overall Length (in): | 1.95 in | Length Through Bore: | 1.2 |
| Number of Hubs: | 1 | UPC: | 662289349227 |
| Weight: | 1.74 LB | Packaged Length: | 3.7 Inches |
| Packaged Width: | 3.6 Inches | Packaged Height: | 2 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
