- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262UL60

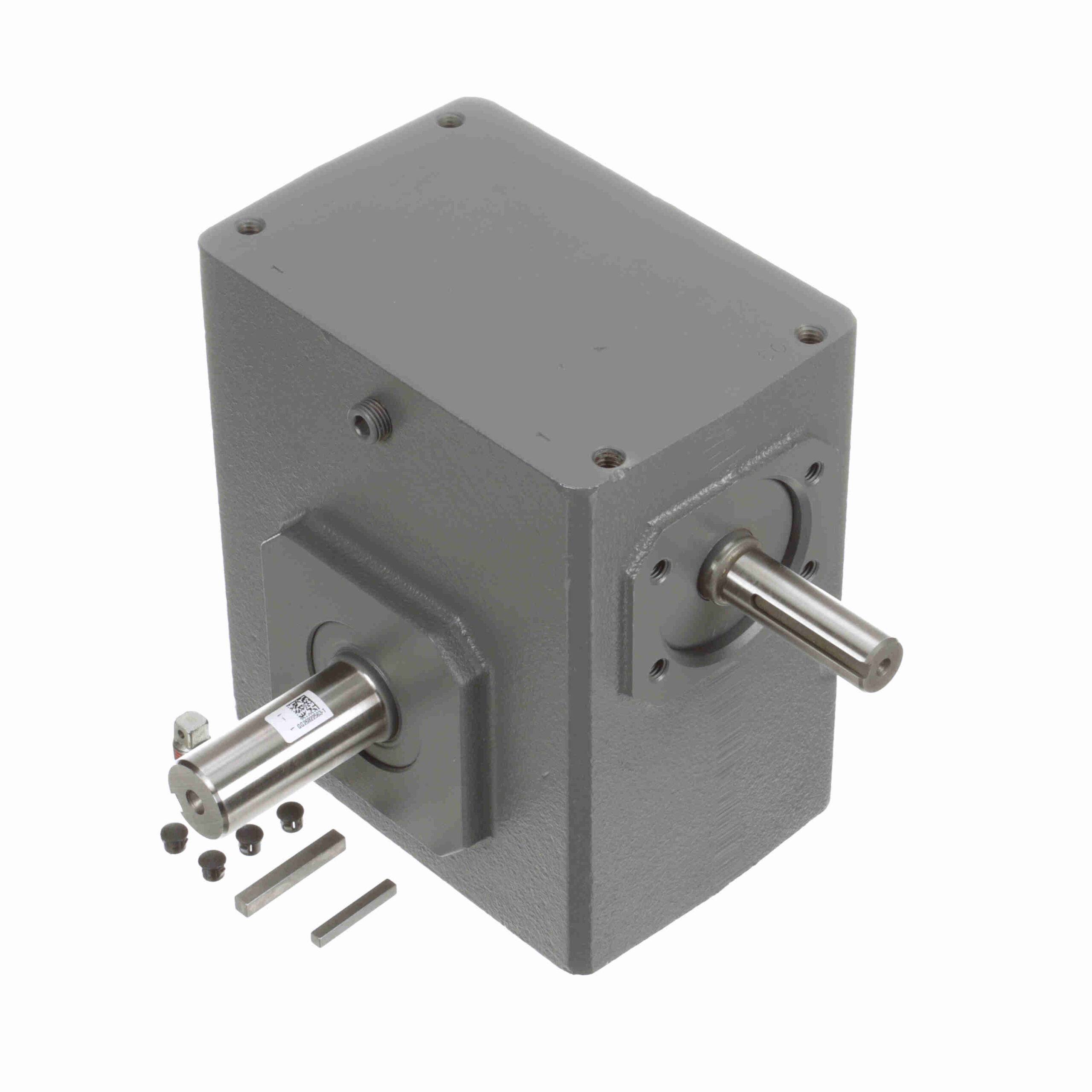

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262UL60
$1,475.26
Out of stock
Out of stock
| Reducer Style: | Standard | Input Speed: | 1750 |
|---|---|---|---|
| Key Sq.: | 0.188 | Key Length: | 1.63 |
| Efficiency: | 80 | Thrust Rating - output shaft: | 3410 |
| Ratio: | 60:1 | Shaft Seal Material: | Nitrile |
| Output Shaft Assembly Code: | L | Input Style: | Solid Shaft |
| Ratio Range: | 60:1 | Model Code: | 262U |
| Input RPM: | 1, 750 | No. of Gear Reductions: | Single |
| Center Distance (in): | 2.63 | Output RPM: | 29.1 |
| Gear Type: | Worm | Product Type: | Worm Speed Reducer |
| Assembly: | U-L | Input HP @ 1750 RPM: | 0.91 |
| Input Diameter (in): | 0.75 in | Series Code: | Raider |
| Reducer: | Worm - Right Angle | Input Keyway: | 3/16 X 1.88 in |
| Output Key: | 1/4 X 2.00 | Mounting Style: | No Base |
| Output Diameter (in): | 1.125 in | Service Factor: | 1 |
| Output Shaft Direction: | Left | Output Shaft: | Solid Shaft |
| Overhung Load Rating (Output Shaft(lb)): | 1, 295 lb | Output Torque Rating (in-lb): | 1805 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | UPC: | 6, 62288E+11 |
| Weight: | 52.00 LB |
