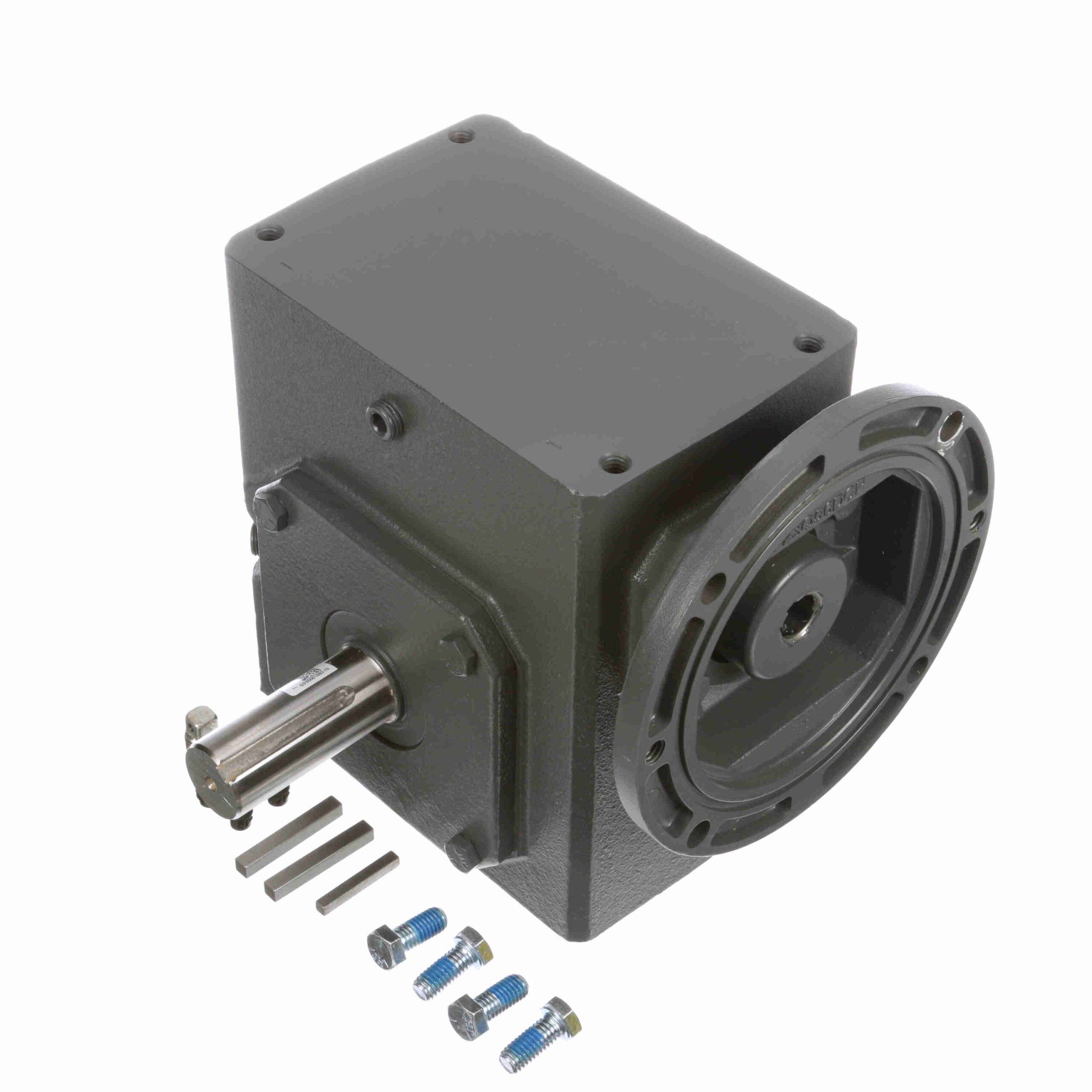

262Q56LR50

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Reducer Style:	Standard
Thrust Rating - output shaft:	3336	Shaft Seal Material:	Nitrile
Ratio:	50:1	Input Keyway (C Face):	3/16 X 3/32
Motor Frame Size:	56C	Input Speed:	1750
Input Bore (C Face):	0.625	Input HP @ 1750 RPM:	1.1
Output Key:	1/4 X 2.00	No. of Gear Reductions:	Single
Center Distance (in):	2.62	Input RPM:	1, 750
Output Shaft Orientation:	LR	Reducer:	Worm - Right Angle
Gear Type:	Worm	Series Code:	Raider
Model Code:	262Q	Ratio Range:	50:01:00
Assembly:	Q-LR	Service Factor:	1
Output Diameter (in):	1.125 in	Output RPM:	35
Product Type:	Worm Speed Reducer	Input Style:	C-Face Quill
Output Shaft Assembly Code:	D	Frame Size:	56C
Mounting Style:	No Base	Input Diameter (in):	0.625 in
Output Shaft Direction:	Double	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	1, 295 lb	Output Torque Rating (in-lb):	1843 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	56.00 LB	Packaged Length:	16 Inches
Packaged Width:	13.5 Inches	Packaged Height:	12.75 Inches
