- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q56H30 105

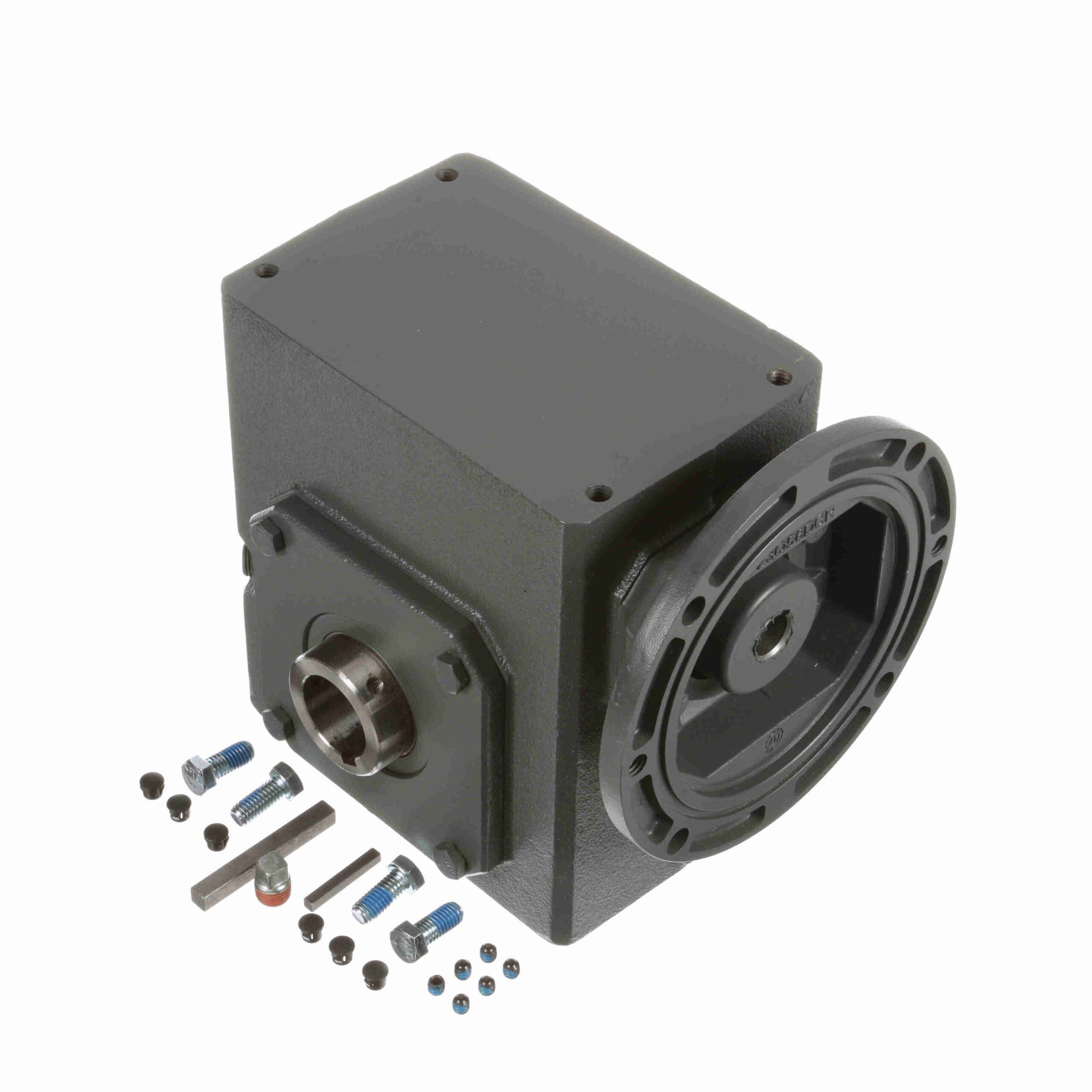

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q56H30 105
$2,513.45
Out of stock
Out of stock
| Input Speed: | 1750 | Efficiency: | 80 |
|---|---|---|---|
| Thrust Rating - output shaft: | 2091 | Input Keyway (C Face): | 3/16x3/32 |
| Ratio: | 30:1 | Reducer Style: | Standard |
| Input Bore (C Face): | 0.63 | Motor Frame Size: | 56C |
| Input Style: | C-Face Quill | Product Type: | Worm Speed Reducer |
| Center Distance (in): | 2.63 | Frame Size: | 56C |
| Output Diameter (in): | 1.3125 in | Ratio Range: | 30:1 |
| No. of Gear Reductions: | Single | Gear Type: | Worm |
| Input HP @ 1750 RPM: | 2.145 | Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb |
| Output Torque Rating (in-lb): | 1833 in-lbs @1750 input RPM in/lbs | Output Shaft: | Hollow Bore |
| Housing Material: | Cast Iron | UPC: | 6, 62288E+11 |
| Weight: | 48.22 LB | Packaged Length: | 13 Inches |
| Packaged Width: | 18.8 Inches | Packaged Height: | 13.7 Inches |
