- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q56H20 115

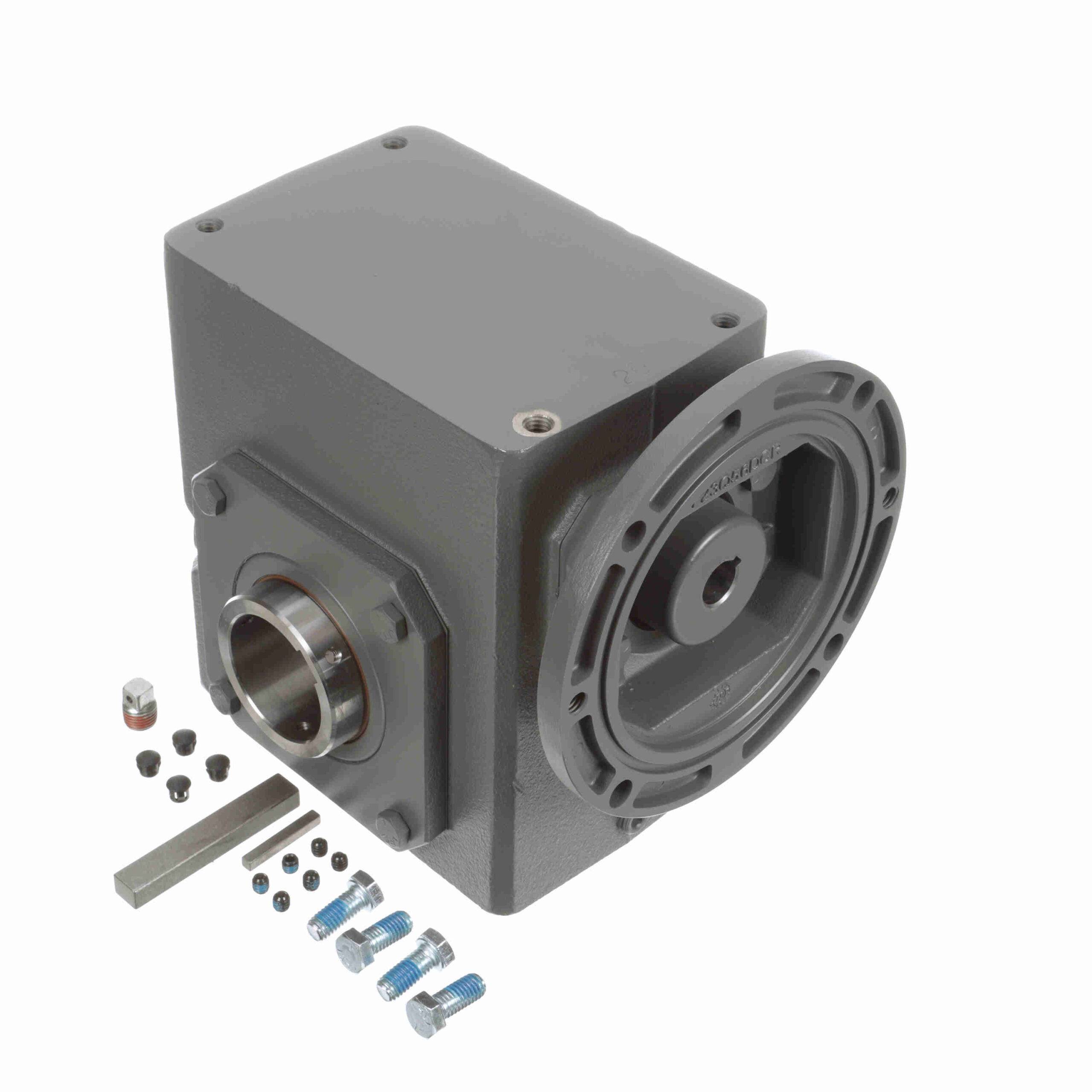

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q56H20 115
$2,146.21
Out of stock
Out of stock
| Input Speed: | 1750 | Input Bore (C Face): | 0.63 |
|---|---|---|---|
| Efficiency: | 80 | Motor Frame Size: | 56C |
| Reducer Style: | Standard | Input Keyway (C Face): | 3/16x3/32 |
| Ratio: | 20:1 | Thrust Rating - output shaft: | 2091 |
| Gear Type: | Worm | Ratio Range: | 20:1 |
| Service Factor: | 1 | Input Diameter (in): | 0.625 in |
| Input Style: | C-Face Quill | Product Type: | Worm Speed Reducer |
| Mounting Style: | Shaft Mt | Output Diameter (in): | 1.938 in |
| No. of Gear Reductions: | Single | Input HP @ 1750 RPM: | 2.965 |
| Series Code: | Raider | Center Distance (in): | 2.63 |
| Frame Size: | 56C | Output Shaft Direction: | L or R |
| Output Torque Rating (in-lb): | 1836 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 1, 625 lb |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| UPC: | 6, 62288E+11 | Weight: | 55.00 LB |
