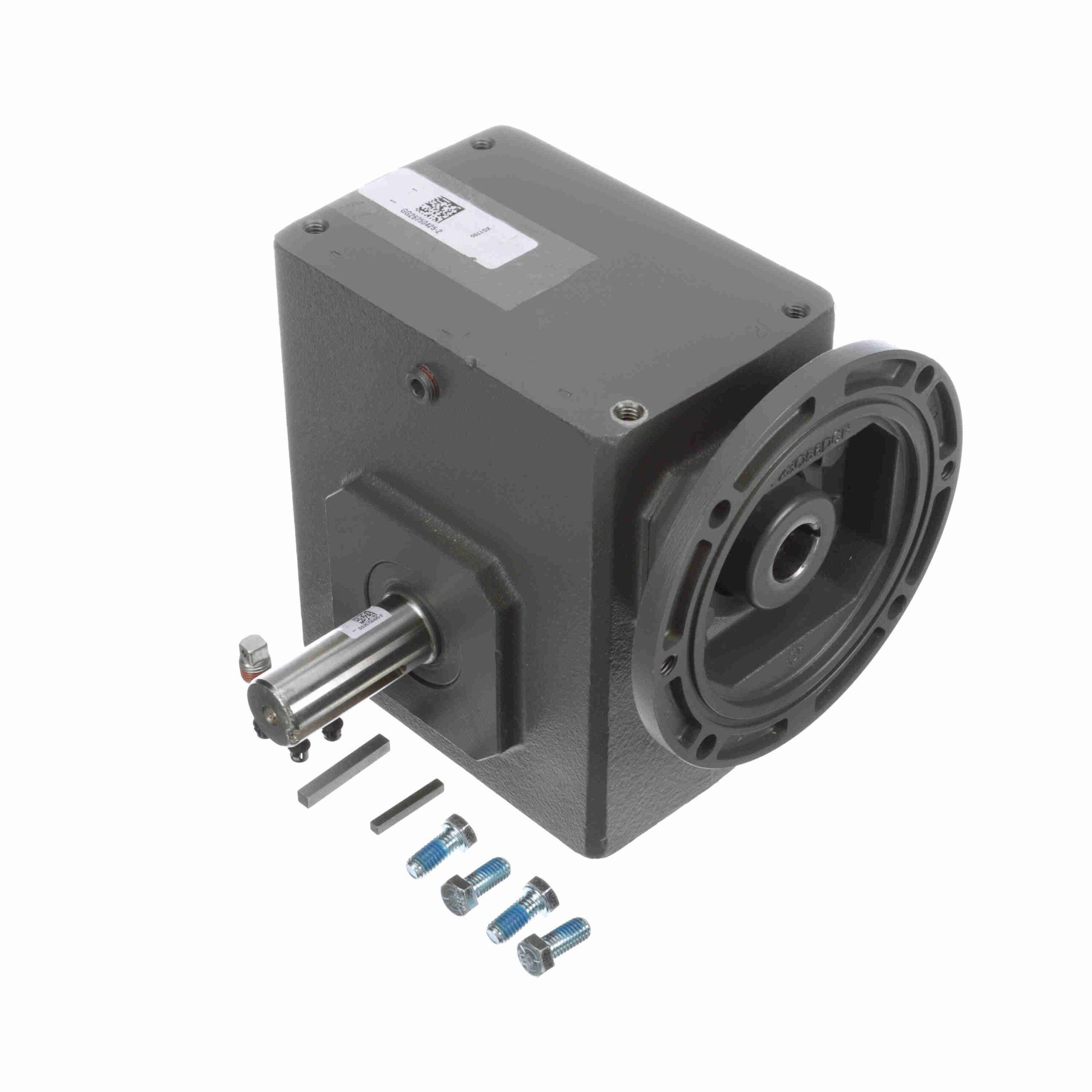

262Q140L20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Thrust Rating - output shaft:	2536	Motor Frame Size:	140TC
Reducer Style:	Standard	Input Bore (C Face):	0.875
Shaft Seal Material:	Nitrile	Efficiency:	80
Input Keyway (C Face):	3/16 X 3/32	Ratio:	20:1
Input Speed:	1750	Input Diameter (in):	0.875 in
Output Key:	1/4 X 2.00	Product Type:	Worm Speed Reducer
Input RPM:	1, 750	Model Code:	262Q
Mounting Style:	No Base	No. of Gear Reductions:	Single
Assembly:	Q-L	Gear Type:	Worm
Frame Size:	140TC	Output Shaft Assembly Code:	L
Reducer:	Worm - Right Angle	Ratio Range:	20:01
Input Style:	C-Face Quill	Output RPM:	87.5
Output Diameter (in):	1.125 in	Center Distance (in):	2.63
Series Code:	Raider	Service Factor:	1
Input HP @ 1750 RPM:	2.4	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	1, 295 lb
Output Torque Rating (in-lb):	1836 in-lbs @1750 input RPM in/lbs	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	56.00 LB
