- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
262Q140L15

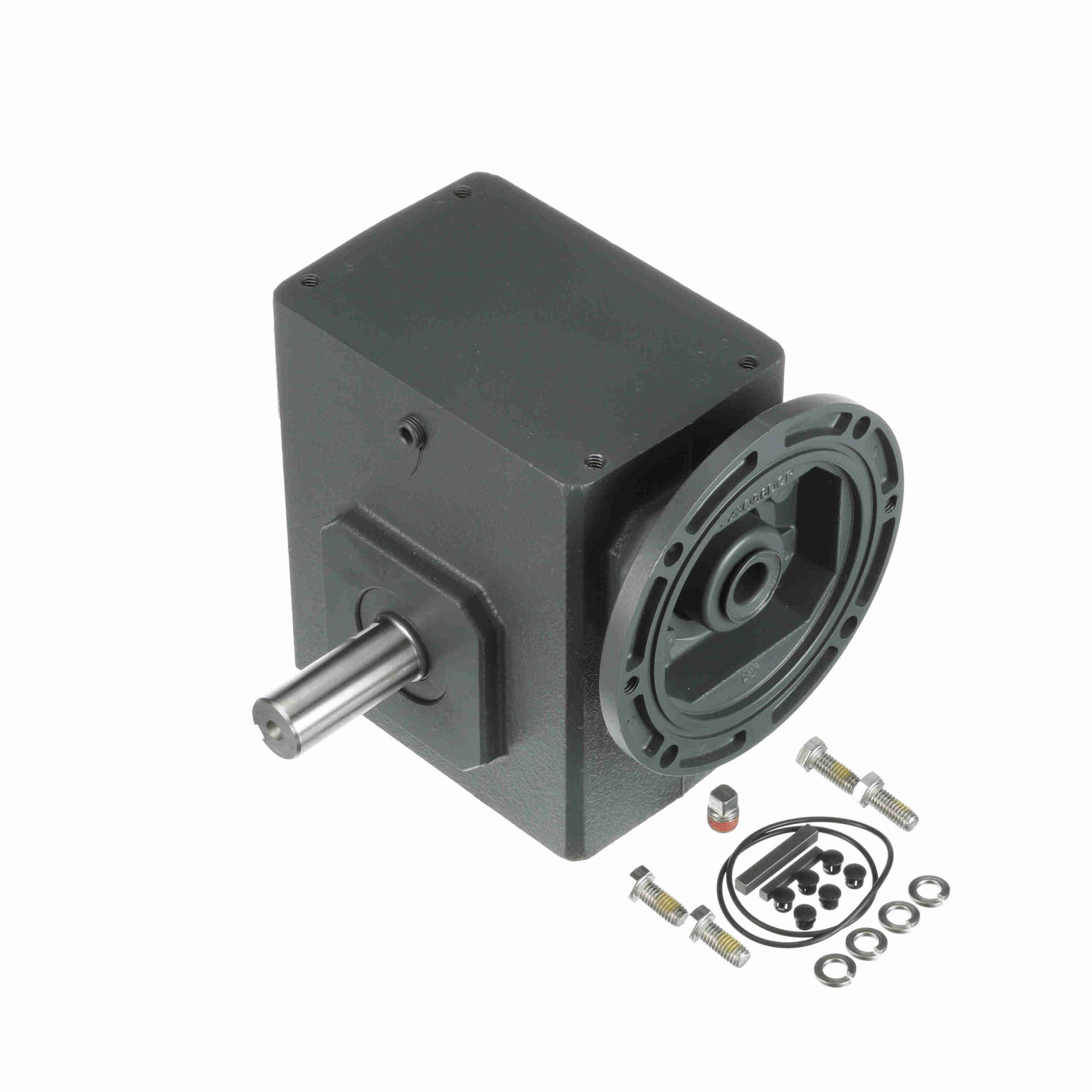

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 262Q140L15
$1,747.33
Out of stock
Out of stock
| Input Speed: | 1750 | Input Keyway (C Face): | 3/16 X 3/32 |
|---|---|---|---|
| Input Bore (C Face): | 0.875 | Reducer Style: | Standard |
| Thrust Rating - output shaft: | 2296 | Ratio: | 15:1 |
| Efficiency: | 80 | Shaft Seal Material: | Nitrile |
| Motor Frame Size: | 140TC | Output Diameter (in): | 1.125 in |
| Output RPM: | 116.6 | Output Key: | 1/4 X 2.00 |
| Gear Type: | Worm | Assembly: | Q-L |
| Mounting Style: | No Base | Input RPM: | 1, 750 |
| Ratio Range: | 15:1 | Input Style: | C-Face Quill |
| Reducer: | Worm - Right Angle | Series Code: | Raider |
| Input Diameter (in): | 0.875 in | Frame Size: | 140TC |
| Model Code: | 262Q | Product Type: | Worm Speed Reducer |
| Input HP @ 1750 RPM: | 3 | Center Distance (in): | 2.63 |
| No. of Gear Reductions: | Single | Output Shaft Assembly Code: | L |
| Service Factor: | 1 | Output Shaft Direction: | Left |
| Output Torque Rating (in-lb): | 1737 in-lbs @1750 input RPM in/lbs | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 1, 295 lb |
| UPC: | 6, 62288E+11 | Weight: | 56.00 LB |
