- Up to 10 degrees misalignment
- Resilient Design
- Absorbs Vibration
- Exposed and shrouded bolt configurations
252 MORFLEX FLANGE MB

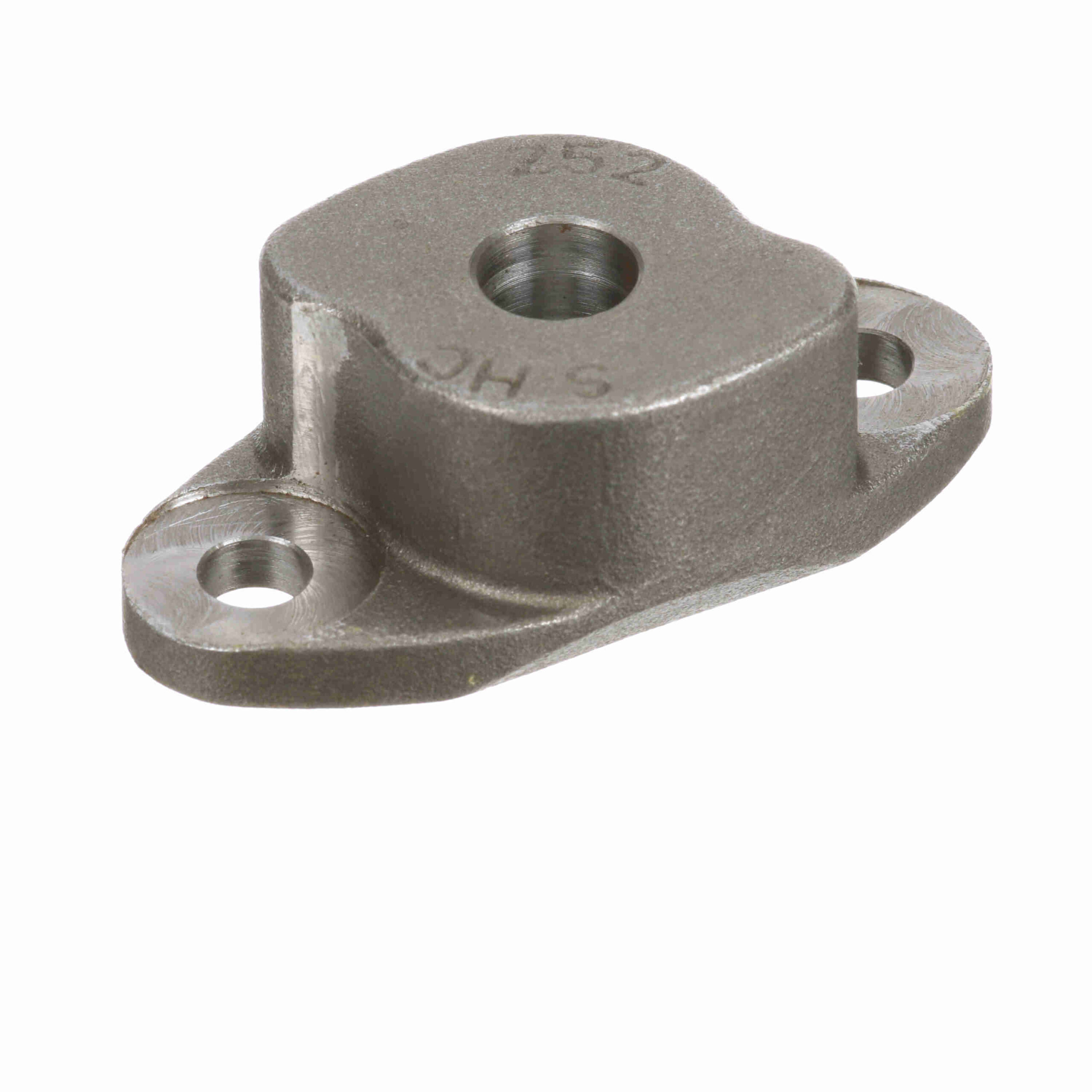

Morse Elastomeric Coupling – Size 252 – Plain Bore – 252 MORFLEX FLANGE MB
Out of stock
| Max. Bore w/SS over KW (in): | 0.5625 in | Flange Type: | Oval |
|---|---|---|---|
| Max Bore w/SS at 180° to KW (in): | 0.75 in | Bore Type: | Plain Bore |
| Coupling Size: | 252 | Stock Bore (in): | 0.75 in |
| Torque Rating (in-lb): | 156 in/lbs | Measurement System: | Imperial |
| Lube/Non-Lube: | Non-Lubricated | Coupling Type: | Elastomeric Coupling |
| Speed Max (rpm): | 6, 500 rpm | Torque Rating (ft-lb): | 13 ft/lbs |
| Bore Size Min (in): | 0.375 in | UPC: | 662288371731 |
| Weight: | 0.24 LB | Packaged Length: | 4 Inches |
| Packaged Width: | 2.35 Inches | Packaged Height: | 1.25 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | Taiwan, Republic of China |
