- Non-Lubricated design for toughest industrial applications.
- Provides torsional damping to reduce torsional vibration and cushion shock loads.
- Redundant fail safe design with interlocking parts.
- Easy to assemble and operate in hot, wet, gritty tough environment.
25 K2 FHUB

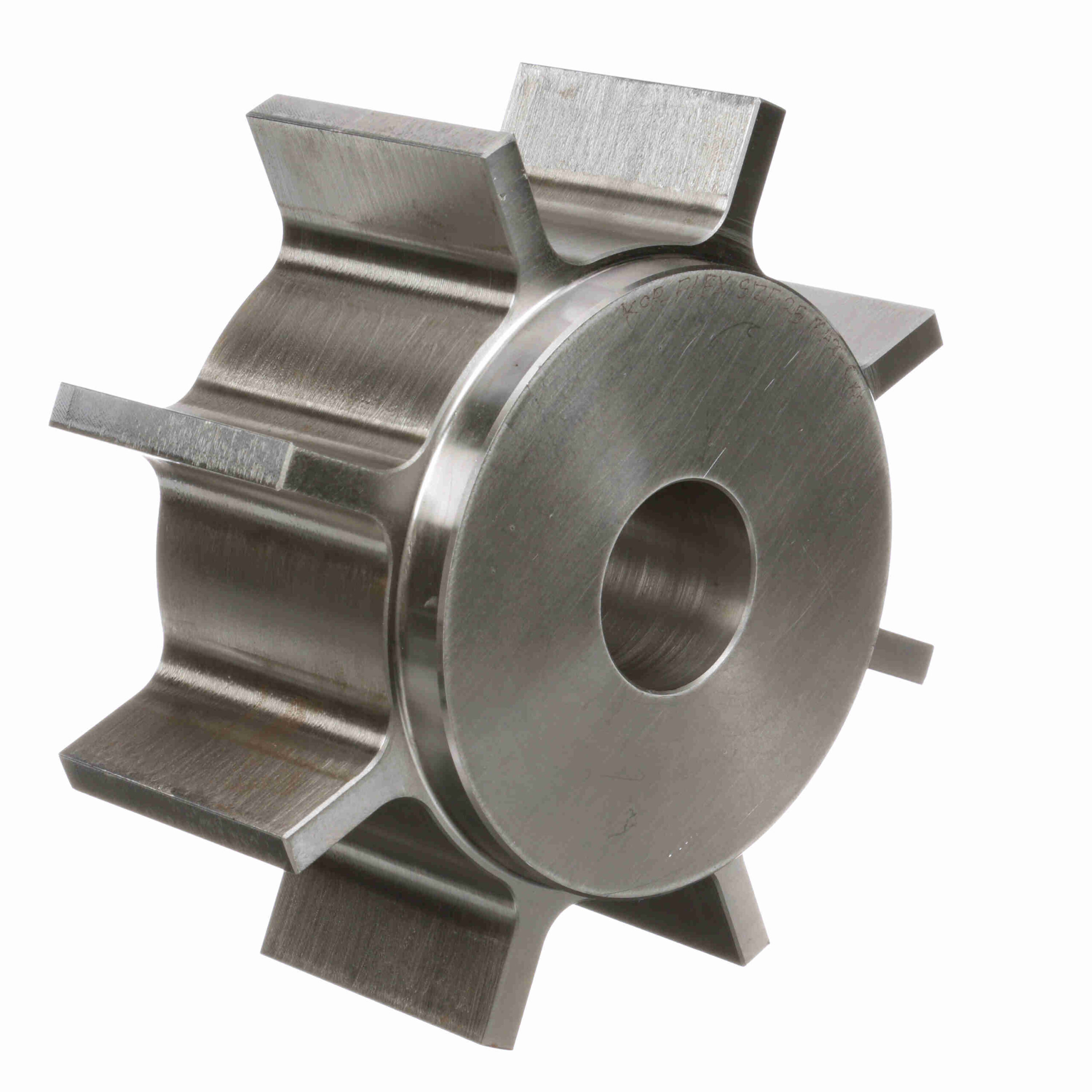

Kop-Flex Elastomeric Coupling Flex Hub – Style K2 – Size 25 – Rough Bore – 25 K2 FHUB
Out of stock
| Material: | Carbon Steel | Model: | Max-C |
|---|---|---|---|
| Coupling Size: | 25 | Bore Type: | Rough Bore |
| Style: | K2 | Hub Diameter (in): | 5.29 in |
| Measurement System: | Imperial | Lube/Non-Lube: | Non-Lubricated |
| Length Through Bore (in): | 3.38 in | Outside Diameter (in): | 5.29 in |
| Coupling Type: | Elastomeric Coupling | Component Type: | Flex Hub |
| Speed Max (rpm): | 3, 640 rpm | Torque Rating (in-lb): | 49, 800 in/lbs |
| Bore Size Max (in): | 3.75 in | Max Bore Flex Hub (in): | 3.75 in |
| Stock Rough Bore (in): | 3.75 in | Bore Size Min (in): | 1.75 in |
| Max Bore Rigid Hub (in): | 5.25 in | UPC: | 662384122145 |
| Weight: | 24.85 LB | Packaged Length: | 9.6 Inches |
| Packaged Width: | 9.7 Inches | Packaged Height: | 4.6 Inches |
| HTC: | 8483.90.8010 | Country of Origin: | India |
