- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
24122 CA C3 W33

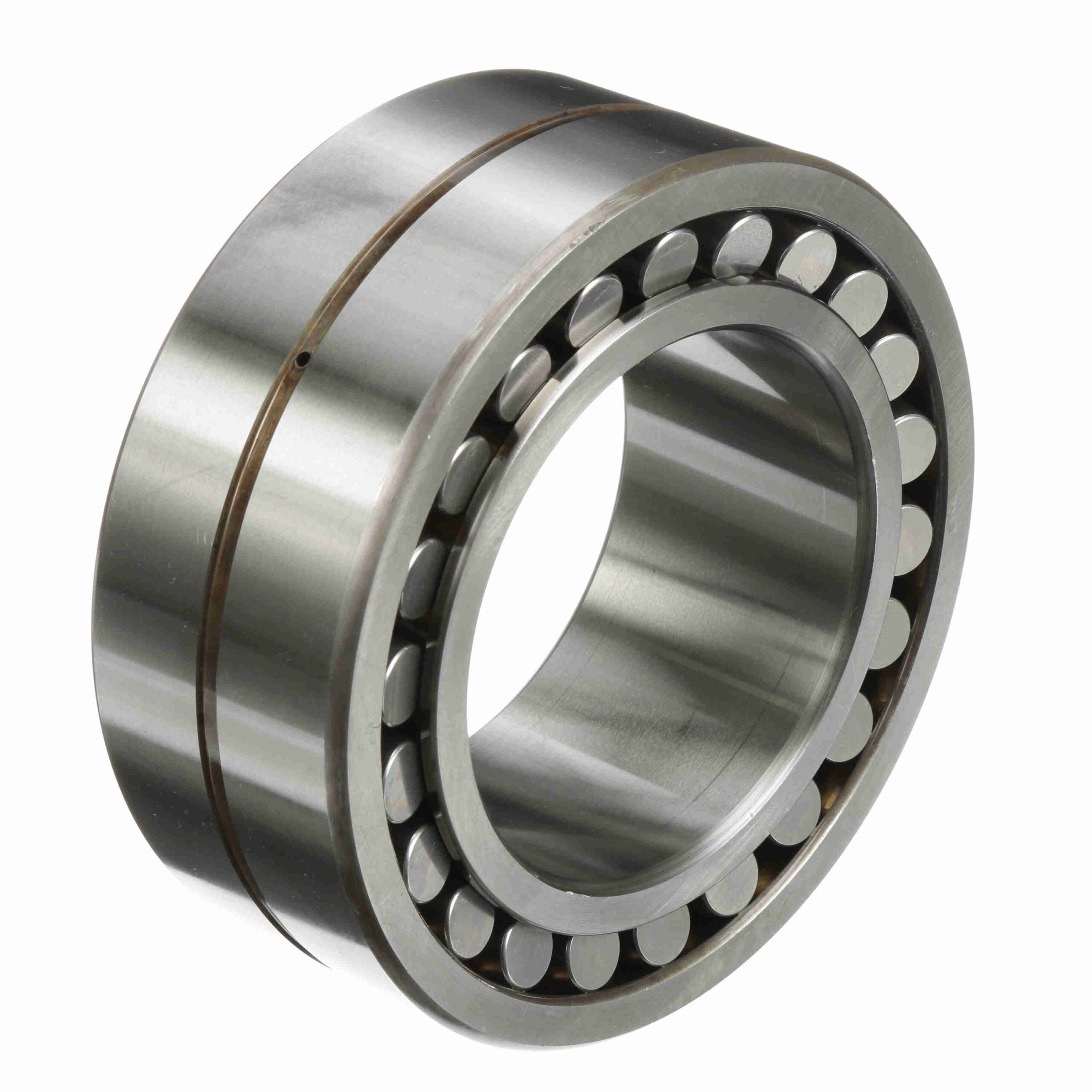

Rollway Radial Spherical Roller Bearing – Straight Bore – 24122 CA C3 W33
$861.90
Availability: 10 in stock
Availability: 10 in stock
| Radial Clearance: | C3 | Series: | 24100 |
|---|---|---|---|
| Bore Type: | Straight | Angular Misalignment: | 2.5° |
| Cage Material: | Brass | Seal Type: | Unsealed |
| Material: | 52100 Bearing Steel | Number of Rows: | 2 |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Static Load Rating (kN): | 462 kN | Full Complement/Caged: | Caged |
| Speed (Max) Oil (RPM): | 1, 600 rpm | Platform: | Spherical Radial |
| Sealed: | None | Speed (Max) Grease (RPM): | 1, 200 rpm |
| Duplexing: | No | Dynamic Load Rating (kN): | 462 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410008755 |
| Weight: | 15.56 LB | Packaged Length: | 7.6 Inches |
| Packaged Width: | 8.2 Inches | Packaged Height: | 3 Inches |
| Country of Origin: | China |
