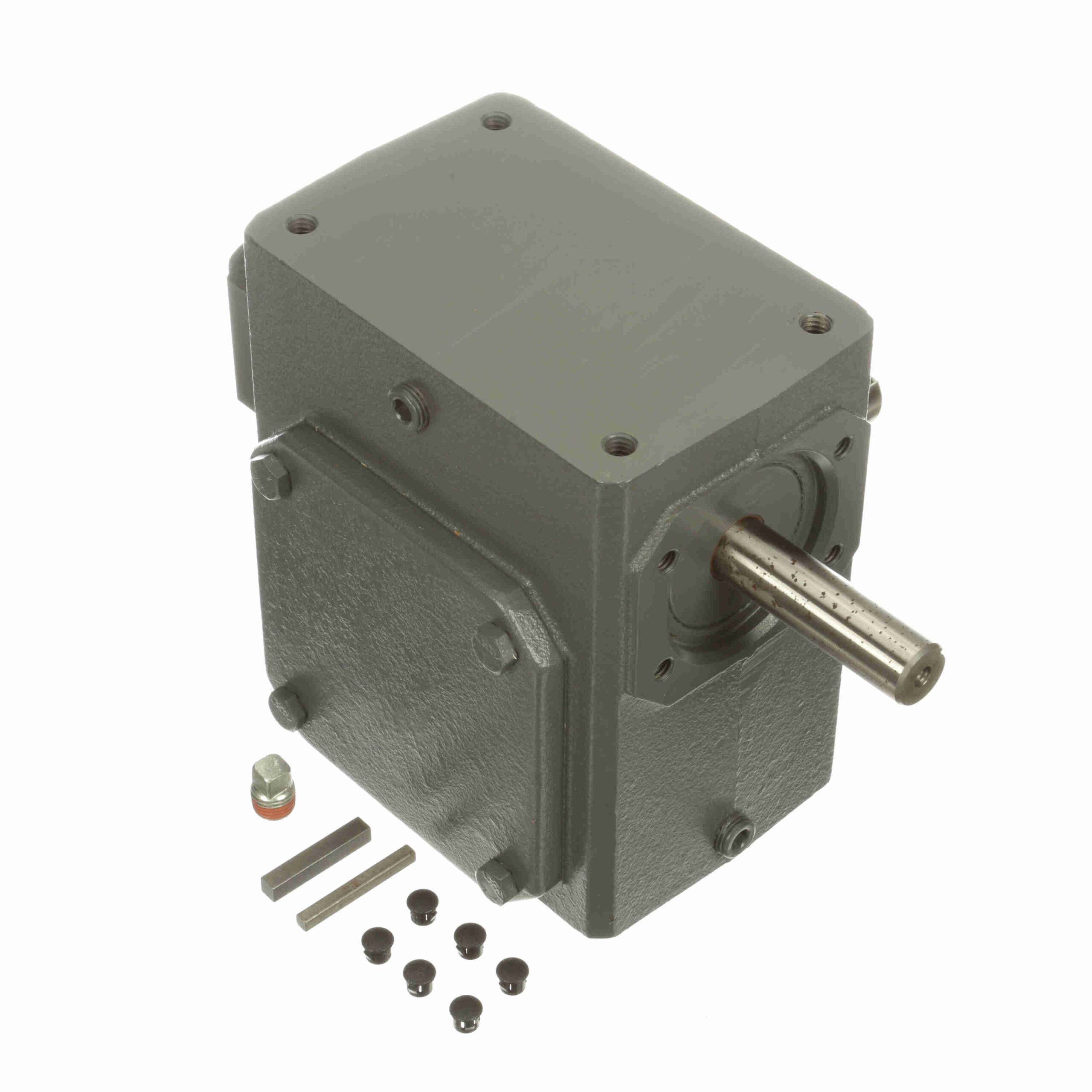

237UR5

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Length:	1.63	Thrust Rating - output shaft:	1379
Shaft Seal Material:	Nitrile	Input Speed:	1750
Efficiency:	80	Reducer Style:	Standard
Ratio:	5:1	Key Sq.:	0.1875
Maximum Input HP:	5.32 hp @ 1750 rpm	Manufacturer Reducer Size:	237
Output Diameter (in):	1.125 in	Output RPM:	350
Input Diameter (in):	0.75 in	Mounting Style:	No Base
Series Code:	Raider	Assembly:	U-R
Input Keyway:	3/16 X 1.31 in	Product Type:	Worm Speed Reducer
Gear Type:	Worm	Output Key:	1/4 X 1.75
Reducer:	Worm - Right Angle	Output Shaft Assembly Code:	R
Ratio Range:	5:01	Input HP @ 1750 RPM:	5.11
Input RPM:	1, 75	Input Style:	Solid Shaft
Service Factor:	1	Center Distance (in):	2.38
No. of Gear Reductions:	Single	Model Code:	237U
Output Shaft Direction:	Right	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	843 lb	Housing Material:	Cast Iron
Output Torque Rating (in-lb):	898 in-lbs @1750 input RPM in/lbs	UPC:	6, 62288E+11
Weight:	31.35 LB	Packaged Length:	11.5 Inches
Packaged Width:	15.1 Inches	Packaged Height:	11.6 Inches
