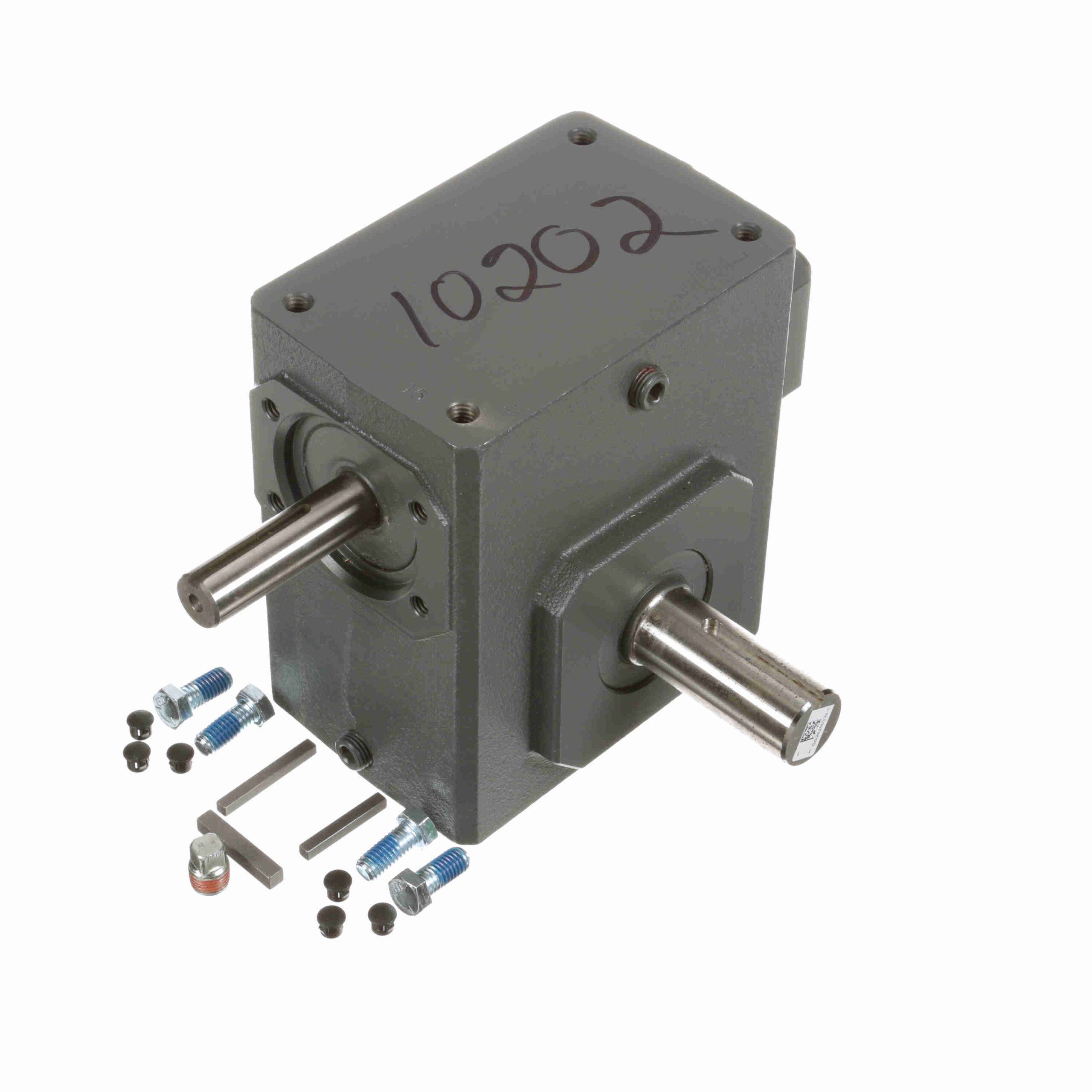

237UR15

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Efficiency:	80
Reducer Style:	Standard	Ratio:	15:1
Key Sq.:	0.1875	Thrust Rating - output shaft:	1954
Input Speed:	1750	Key Length:	1.63
Service Factor:	1	Input Diameter (in):	0.75 in
Assembly:	U-R	Product Type:	Worm Speed Reducer
Reducer:	Worm - Right Angle	Output Diameter (in):	1.125 in
Model Code:	237U	Mounting Style:	No Base
Series Code:	Raider	Output Shaft Assembly Code:	R
Ratio Range:	15:1	Input RPM:	1, 75
No. of Gear Reductions:	Single	Output Key:	1/4 X 1.75
Input Style:	Solid Shaft	Input HP @ 1750 RPM:	2.52
Input Keyway:	3/16 X 1.31 in	Center Distance (in):	2.38
Output RPM:	116.6	Gear Type:	Worm
Output Shaft Direction:	Right	Housing Material:	Cast Iron
Output Torque Rating (in-lb):	1318 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	843 lb
Output Shaft:	Solid Shaft	UPC:	6, 62288E+11
Weight:	40.00 LB
