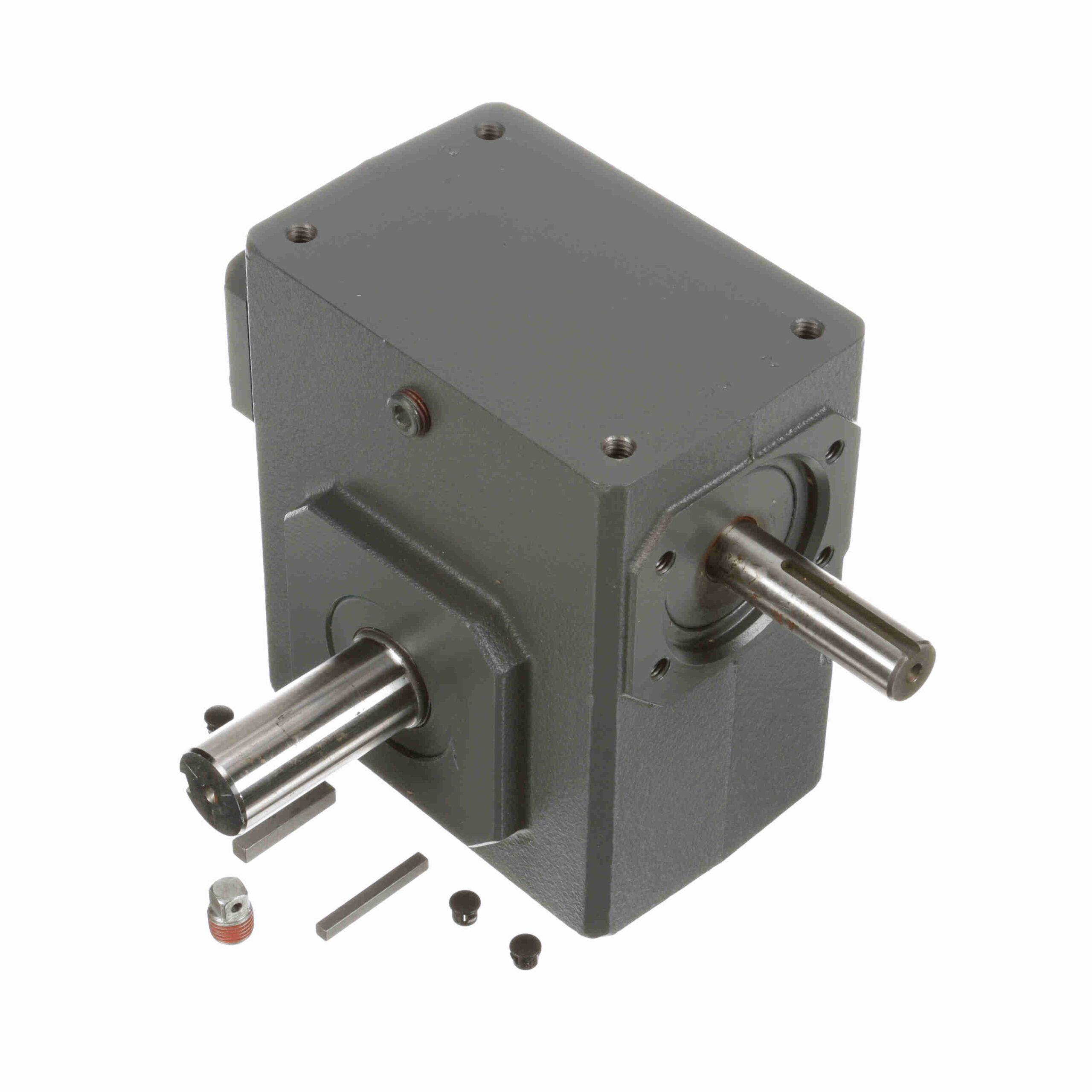

237UL50

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Key Sq.:	0.1875
Ratio:	50:1	Thrust Rating - output shaft:	2305
Key Length:	1.63	Input Speed:	1750
Shaft Seal Material:	Nitrile	Efficiency:	80
Maximum Input HP:	1.14 hp @ 1750 rpm	Manufacturer Reducer Size:	237
Mounting Style:	No Base	Gear Type:	Worm
Model Code:	237U	Output Shaft Assembly Code:	L
Input Style:	Solid Shaft	Product Type:	Worm Speed Reducer
Center Distance (in):	2.38	Reducer:	Worm - Right Angle
Series Code:	Raider	Input RPM:	1, 75
Input Diameter (in):	0.75 in	Output Diameter (in):	1.125 in
Service Factor:	1	Input Keyway:	3/16 X 1.31 in
Output RPM:	35	No. of Gear Reductions:	Single
Ratio Range:	50:01:00	Input HP @ 1750 RPM:	0.91
Output Key:	1/4 X 1.75	Assembly:	U-L
Output Shaft Direction:	Left	Overhung Load Rating (Output Shaft(lb)):	843 lb
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	1432 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	40.00 LB
