- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237UH60 107

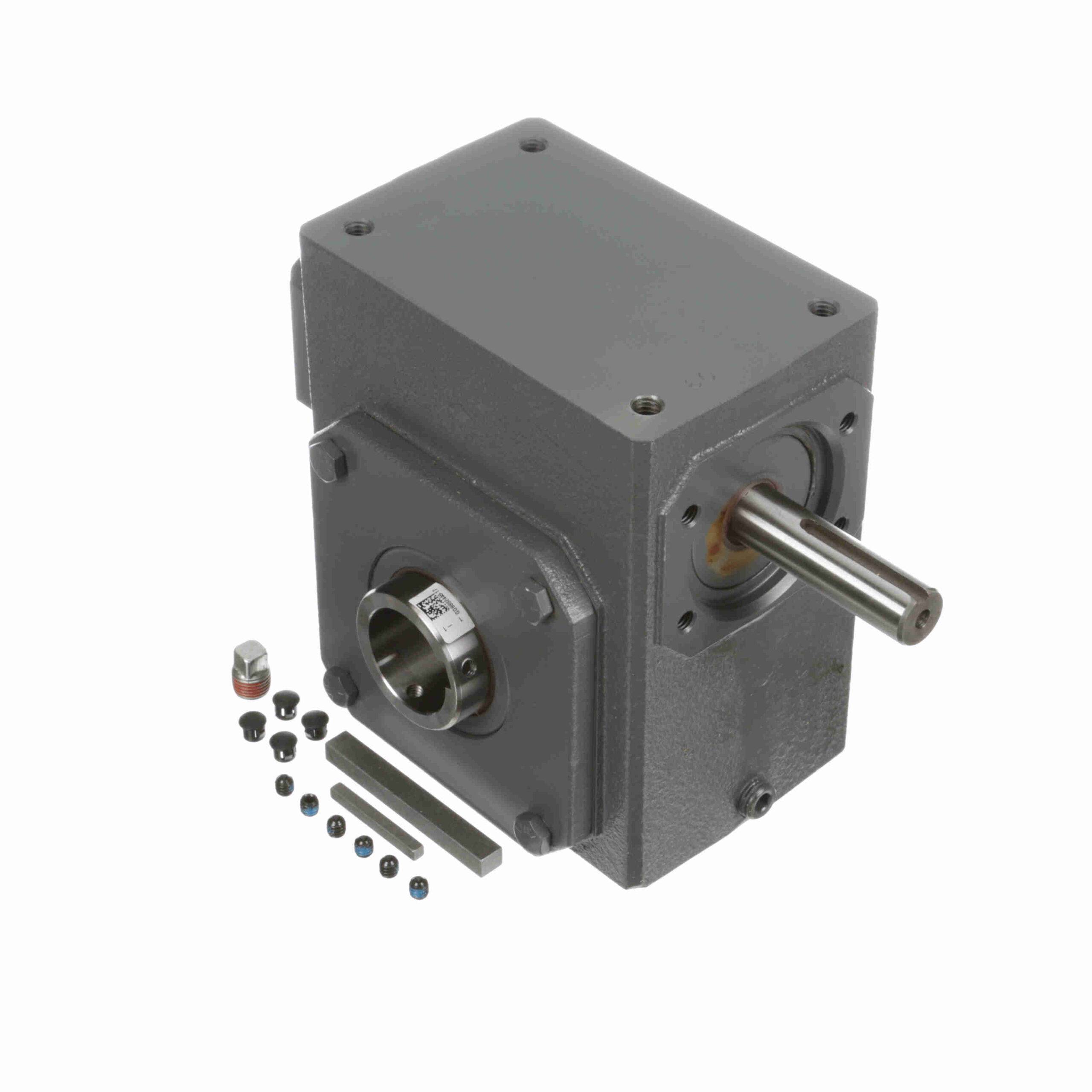

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237UH60 107
$1,816.95
Out of stock
Out of stock
| Key Sq.: | 0.188 | Input Speed: | 1750 |
|---|---|---|---|
| Efficiency: | 80 | Ratio: | 60:1 |
| Thrust Rating - output shaft: | 2091 | Key Length: | 1.63 |
| Reducer Style: | Standard | Series Code: | Raider |
| Input Keyway: | 0.19 in | Product Type: | Right Angle |
| Mounting Style: | Shaft Mt | Input Style: | Shaft |
| Service Factor: | 1 | Output Diameter (in): | 1.438 in |
| Center Distance (in): | 2.38 | Ratio Range: | 60:1 |
| Input HP @ 1750 RPM: | 0.97 | Input Diameter (in): | 0.75 in |
| No. of Gear Reductions: | Single | Gear Type: | Worm |
| Output Shaft Direction: | L or R | Housing Material: | Cast Iron |
| Output Shaft: | Hollow Bore | Output Torque Rating (in-lb): | 1418 in-lbs @1750 input RPM in/lbs |
| Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb | UPC: | 6, 62288E+11 |
| Weight: | 42.00 LB |
